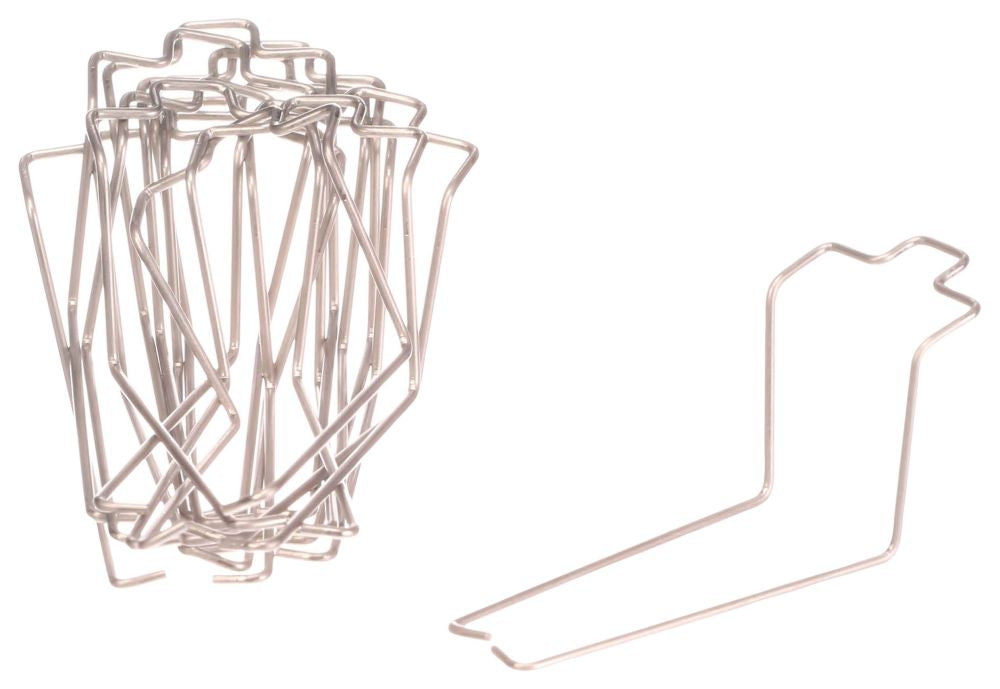

Siemens 3TX7144-1L7 Metal Clip Relay Accessory

Product Description

The SIEMENS 3TX7144-1L7 is a metal clip accessory designed for use with compatible Siemens relay components. Metal clips of this type serve as mechanical retention hardware, securing relay modules or socket assemblies to DIN rail or panel-mount installations. The clip provides a positive, vibration-resistant hold that keeps relay components firmly positioned during operation. At 0.617 pounds and compact in size, this part is a straightforward field-replacement or spare component for electrical panel assemblies. Licensed electricians and panel technicians typically handle this type of hardware during control panel builds or relay system servicing.

This metal clip is suited for industrial and commercial electrical control panel applications where Siemens relay modules require reliable mechanical retention. It is supplied one per pack and is appropriate for new panel construction or as a direct replacement when an existing clip is damaged or missing. Its compact footprint makes it easy to keep as a spare on the service truck or in the shop inventory.

Key Features

• Metal construction for durable mechanical retention
• Compact dimensions fit within standard relay and control panel assemblies
• Sold individually, one per pack
• Lightweight at 0.617 pounds for easy handling and stocking
• Designed as a Siemens OEM accessory component

Compatibility

Designed as an OEM-style accessory for Siemens relay systems. Consult the Siemens product documentation for your specific relay series to confirm fitment before installation.

Installation Notes

Installation and replacement of relay clip hardware should be performed by a qualified electrician. De-energize and lock out the control panel before servicing any relay components, following NFPA 70E arc flash and lockout/tagout procedures. Verify that the clip seats fully and securely before restoring power to the panel.

Technical Specifications

• Weight: 0.617 pounds
• Length: 1.575 inches
• Width: 0.787 inches
• Height: 1.181 inches
• Quantity per Pack: 1
• UPC: 75455494767

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7144-1L7
