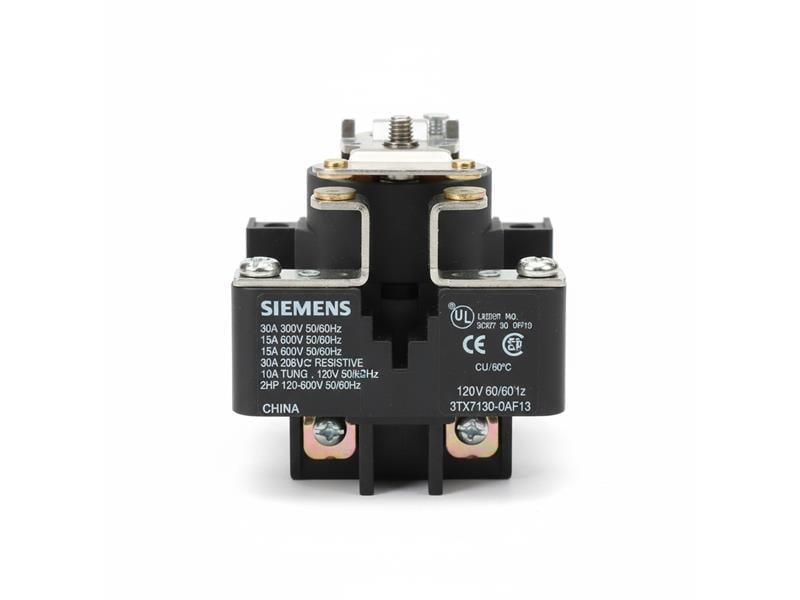

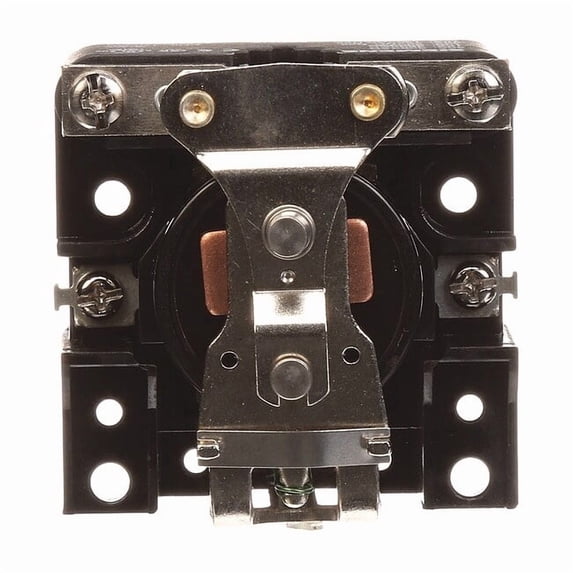

Siemens 3TX7130-0AF13 Open Power Relay 120 VAC 40 Amp SPST-NO-DM

Product Description

The SIEMENS 3TX7130-0AF13 is an open power relay with a heavy-duty SPST-NO-DM contact configuration. It is rated for 40A and 120VAC. The relay is suitable for various applications requiring reliable switching. It is designed for surface mounting and ideal for applications around running motors.

• Contact Voltage Rating 600 V
• Coil Voltage 120 VAC
• Contact Material Silver Alloy

Product Highlights

Open power relay, heavy duty, SPST-NO-DM, 40A, 120VAC, surface mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7130-0AF13
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Model: Siemens 3TX7130-0AF13
• MPN: spstn0dm
• Manufacturer Part Number: 3TX71300AF13
• Mounting Style: Surface
• Coil Voltage: 120V AC
• Current Rating: 40 A
• Contact Form: SPST-NO
• Contact Rating (AC): 40 A @ 120V
• Contact Material: Silver Alloy
• Power Consumption - Relay: 4.0 W, 10.0 VA
• Standards: REACH Art. 33, RoHS Compliant
• Features: Heavy Duty
• Mechanical Operating Durability: 1,000,000
• Motor Rated: Yes
• Minimum Operating Temperature: -40 Degrees F
• Horsepower @ 120V AC: 1/3 hp
• Maximum Operating Temperature: 158 Degrees F
• Series: 3TX71 Series
• Input Voltage: 120V AC
• Maximum Switching Voltage: 600V AC
• Response Time: 30 msec
• Dielectric Strength: 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
• Electrical Operating Durability: 100,000
• Relay Mounting Style: Surface
• Coil Voltage (Nominal@60Hz): 120V AC
• Ambient Temperature Rating: -40 to 70 Deg C
• Enclosure Type: Open
