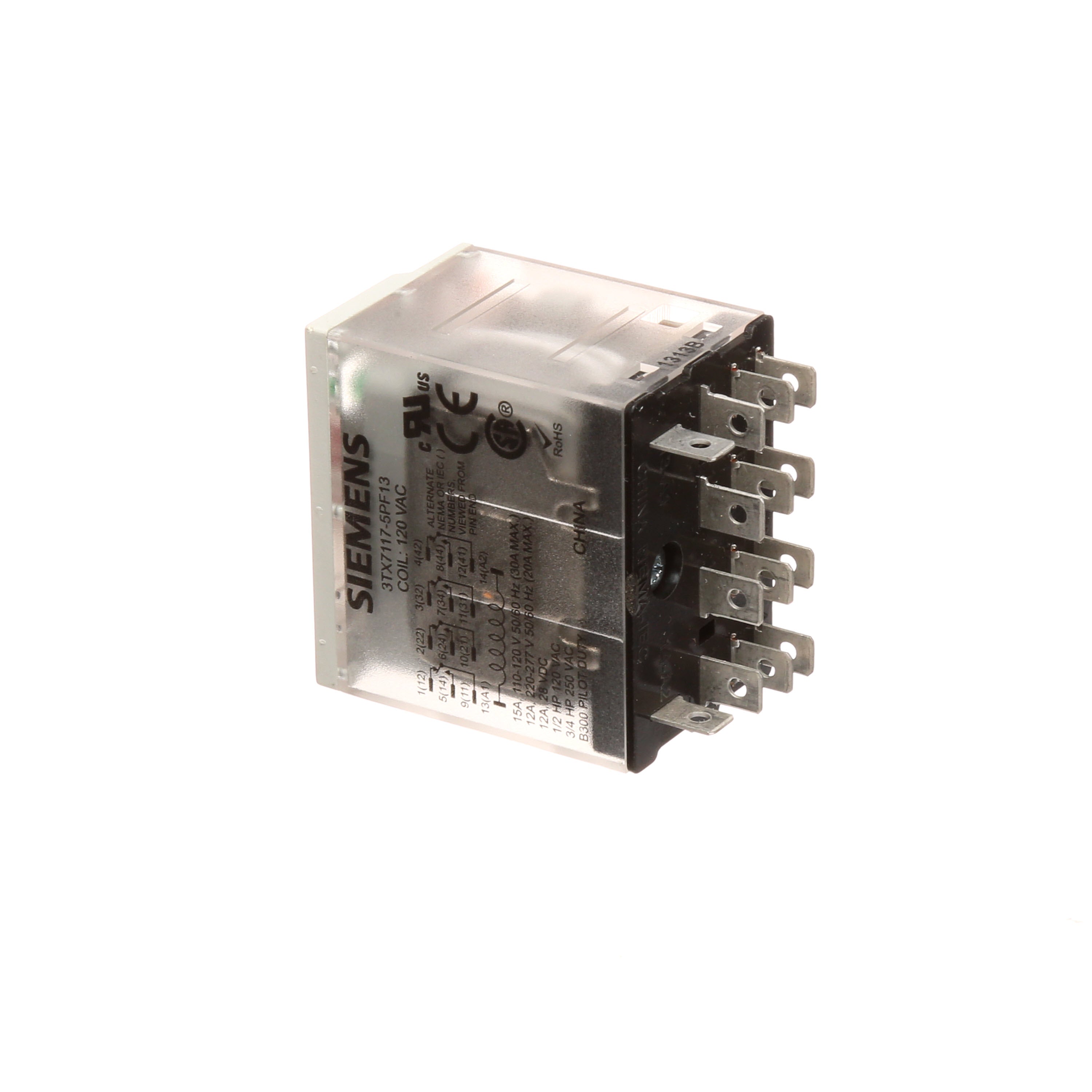

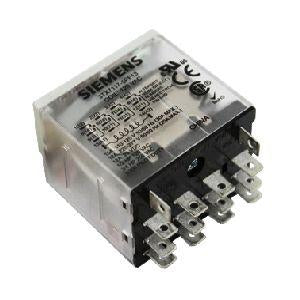

Siemens 3TX7117-5PF13 Premium Plug-In Relay 15A 120VAC

Product Description

The Siemens 3TX7117-5PF13 premium plug-in relay features a 14-pin square base and a 4PDT contact form. This relay is designed for socket mounting and supports a 15A current rating at 120VAC. It includes a premium LED and mechanical flag for easy status indication. Uses Socket 3TX7144-4E9.

• Plug-in Relay
• Premium LED
• Mechanical Flag
• 120VAC

Product Highlights

The Siemens 3TX7117-5PF13 is a premium plug-in relay with LED and mechanical flag indication, ideal for various industrial applications requiring reliable switching.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7117-5PF13
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Height: 1-1/2 Inch
• Length: 2.7 Inch
• Width: 2.400 in
• Country of Origin: China
• Coil Voltage: 120 VAC
• Contact Current Rating: 15 A
• Contact Form: 4PDT
• Contact Voltage Rating: 300 V
• Control Voltage: 120 V
• Current Rating: 15 A
• Manufacturer Part Number: 3TX7117-5PF13
• Mounting Type: Socket Mount
• Number of Pins: 14
• Primary Type: Power Relays
• Series: 3TX Series
• Termination: Blade
• Base Type: Square
• Contact Rating: 15 A at 300 V AC, 15 A at 300 VAC
• Temperature Rating (Degrees F): -40 to 55, -40 to 55 deg C
• Type: Miniature Premium
• UNSPSC: 39122326
• MPN: 3TX71175PF13
• Number in Pack: 1
• Mounting Style: Flange
• Number of Phases: 1
