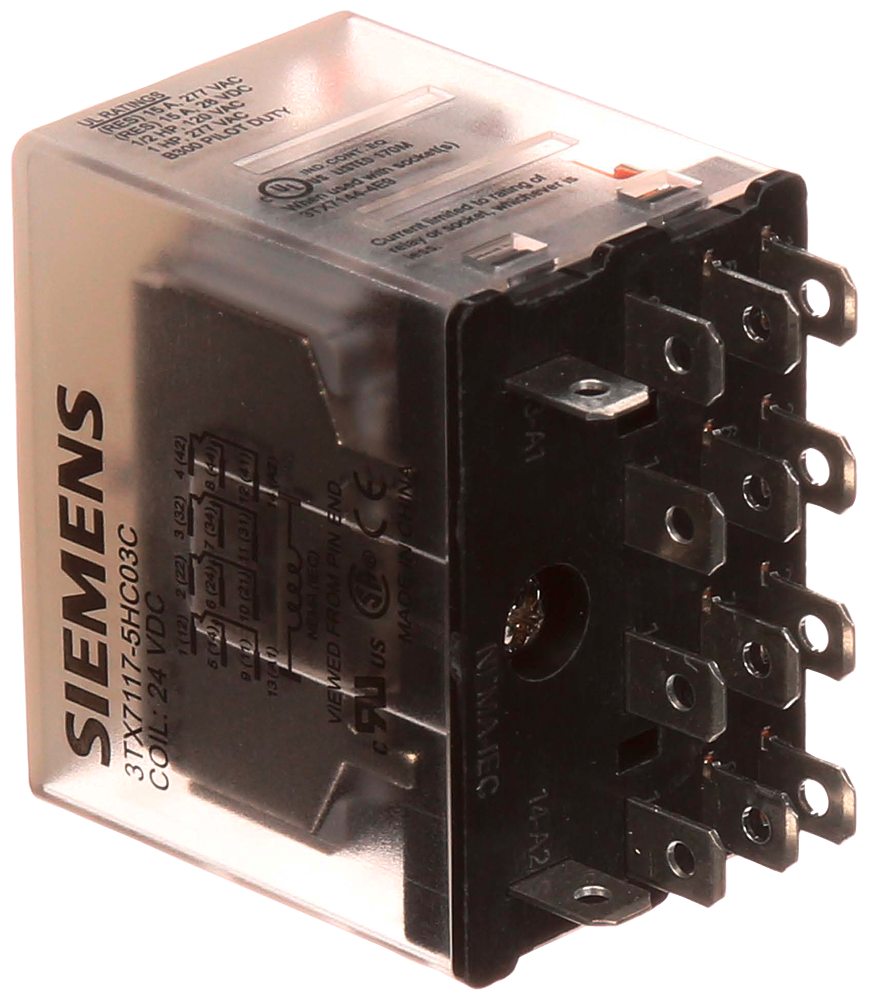

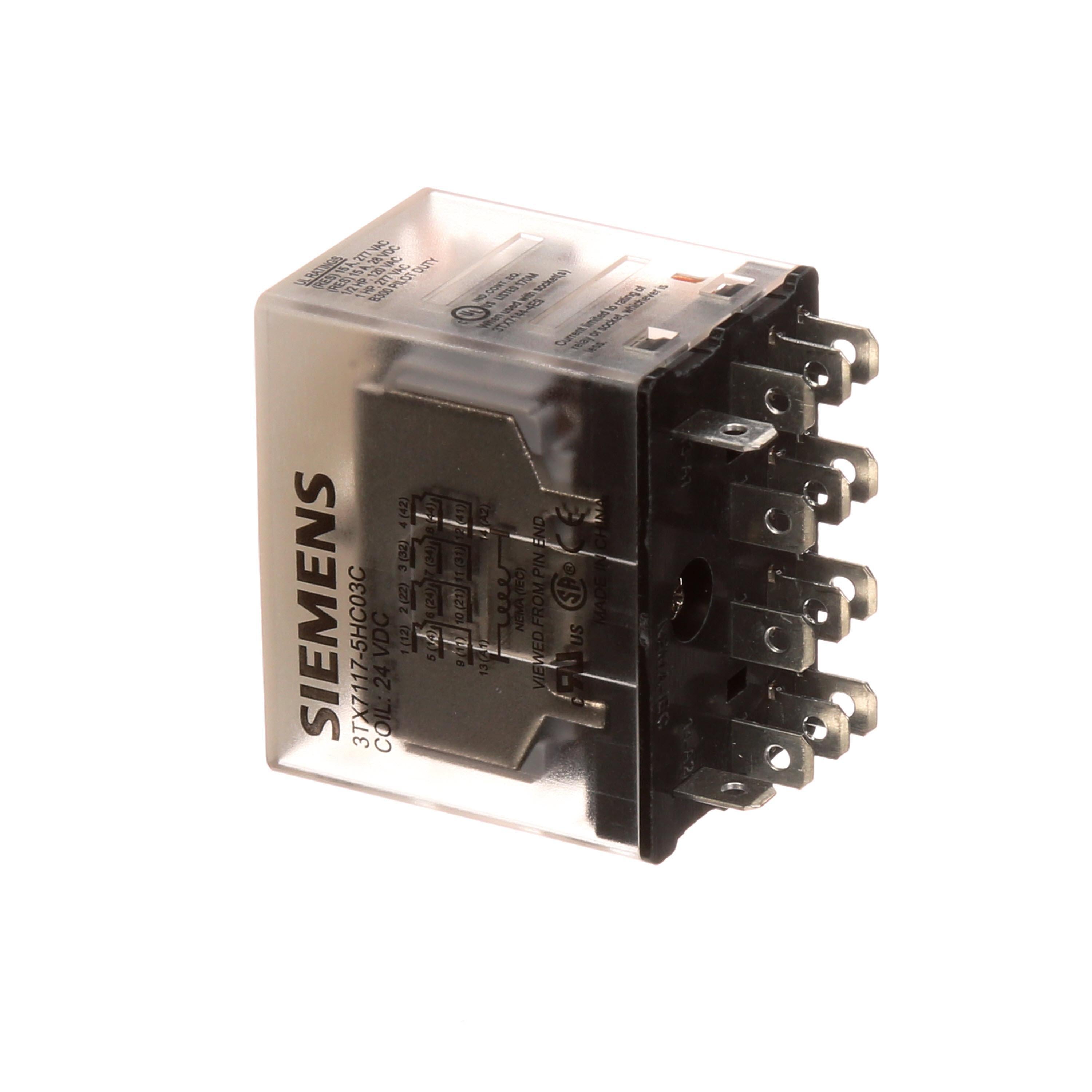

Siemens 3TX7117-5HC03C Plug-In Relay, 4PDT, 15A, 24VDC

Product Description

The SIEMENS 3TX7117-5HC03C is a plug-in relay with a 14-pin square base and 4PDT contact form. This relay has a current rating of 15A and a 24VDC coil voltage. It is suitable for various applications requiring reliable switching. Uses Socket 3TX7144-4E9.

• Contact Form 4PDT
• Current Rating 15 A
• Coil Voltage 24V DC

Product Highlights

The SIEMENS 3TX7117-5HC03C plug-in relay features a square base, 4PDT contact form, and a 15A current rating, operating at 24VDC.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7117-5HC03C
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Width: 1.700 in
• Height: 1-1/4 Inch
• Length: 2 Inch
• Item [Specifications]: Plug-In Relay
• Series [Specifications]: 3TX71 Series
• Features [Specifications]: Degree of Protection IP40, Shock Resistance 10gn
• HP @ 120V [Specifications]: 1/2 hp
• HP @ 240V [Specifications]: 3/4 hp
• IP Rating [Specifications]: IP40
• Standards [Specifications]: UL Listed
• Base Shape: Square
• Body Depth: 0.83 in
• Body Width: 1.54 in
• Coil Voltage: 24V DC
• Body Height: 1.08 in
• Motor Rated [Specifications]: Yes
• Contact Form: 4PDT
• Item - Relay [Specifications]: Plug In Relay
• Push To Test [Specifications]: No
• Input Voltage: 24V DC
• Overall Depth [Specifications]: 1.08 in
• Current Rating: 15 A
• Mounting Style: Plug-In
• Number of Pins: 14
• Contact Material: Silver Alloy
• Mounting - Relay [Specifications]: Plug In
• Status Indicator [Specifications]: None
• Coil Voltage Type [Specifications]: DC
• Combo Socket Code [Specifications]: Socket / Square / 14
• Power Consumption: 1.5 W, 1.5 VA
• Body Depth - Relay [Specifications]: 0.83 in
• Body Width - Relay [Specifications]: 1.54 in
• Body Height - Relay [Specifications]: 1.08 in
• Contact Rating (DC) [Specifications]: 6 A @ 24V
• Push-To-Test Button [Specifications]: No Test Button
• Push-To-Test Method [Specifications]: No Button
• Contact Form - Relay [Specifications]: 4PDT
• Horsepower @ 120V AC [Specifications]: 1/2 hp
• Horsepower @ 240V AC [Specifications]: 3/4 hp
• Relay Mounting Style [Specifications]: Socket
• Resistance Properties [Specifications]: Shock-Resistant
• Number of Pins - Relay [Specifications]: 14
• Overall Height - Relay [Specifications]: 1.08 in
• Socket Code Configurator [Specifications]: Socket / Square / 14
• Base Type - Plug In Relay [Specifications]: Square
• DC Contact Rating - Relay [Specifications]: 6A @ 24V
• Power Consumption - Relay [Specifications]: 1.5 VA, 1.5 W
• Contact Rating: 15 A at 300 V AC, 15 A at 300 VAC
• Temperature Rating (Degrees F): -40 to 55, -40 to 55 deg C
• Type: Basic Miniature
• Contact Current Rating: 15 A
• Mounting Type: Socket Mount
• Primary Type: Power Relays
• Series: 3TX Series
• MPN: 3TX7117-5HC03C
• Primary brand: Siemens
• Order code / Manufacturer SKU: 3TX7117-5HC03C
• Manufacturer description: PLUG-IN RELAY - 4PDT - 15A - 24VDC
