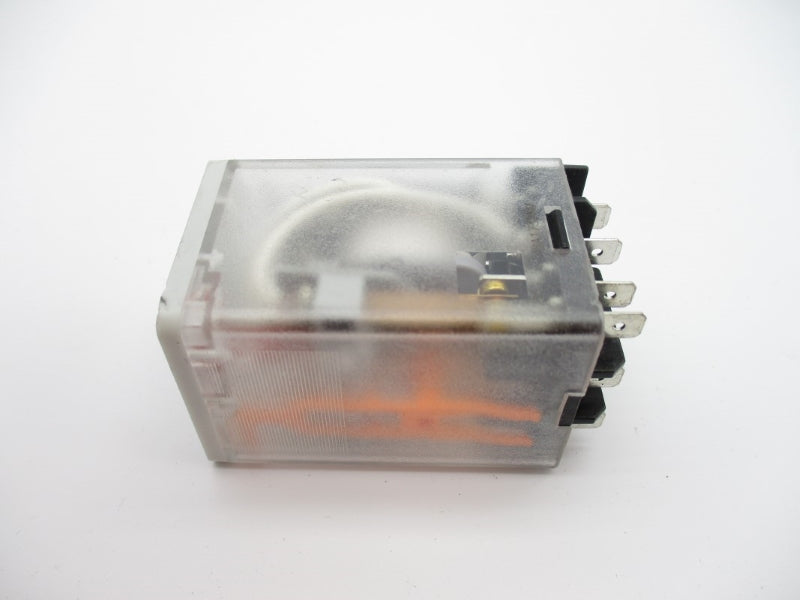

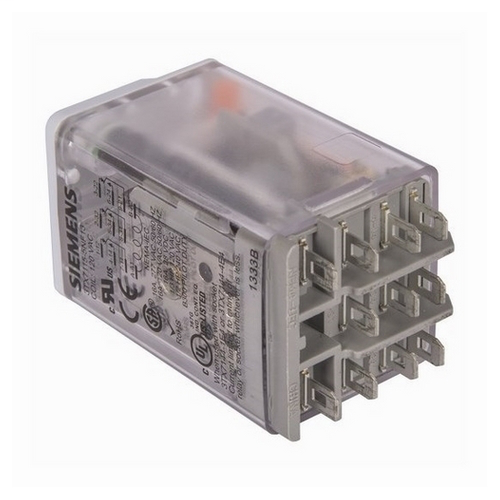

Siemens 3TX7115-5NF13 Premium Plug-In Relay 120VAC 10A

Product Description

The Siemens 3TX7115-5NF13 premium plug-in relay features an 11-pin square base and is suitable for various applications. This relay has a 3PDT contact configuration and a 10A contact rating at 120VAC. It utilizes socket 3TX7144-4E4.

• Plug-in Relay
• Premium LED
• Mechanical Flag

Product Highlights

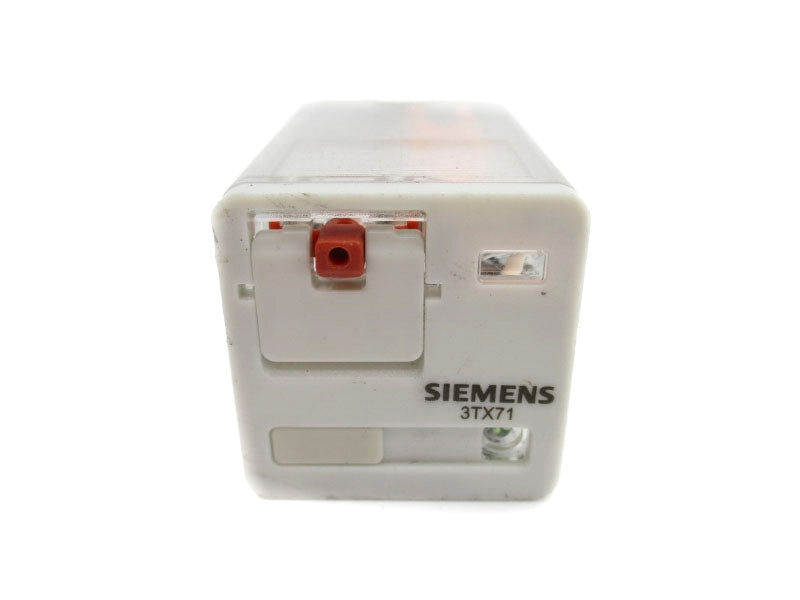

Premium style relays are full featured with LED and mechanical flag indication, push to test button and typically a latching hold down door which provides a method of activating the contacts without applying power to the coil.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7115-5NF13
• Country of Origin: China

Technical Specifications

• Base: Square
• Type: Plug-in Relay
• Brand: Siemens
• Enclosure: IP40
• Frequency: 50/60 Hz
• Sub Brand: SIRIUS Relays
• Coil Voltage: 120 V
• Contact Rating: 10A

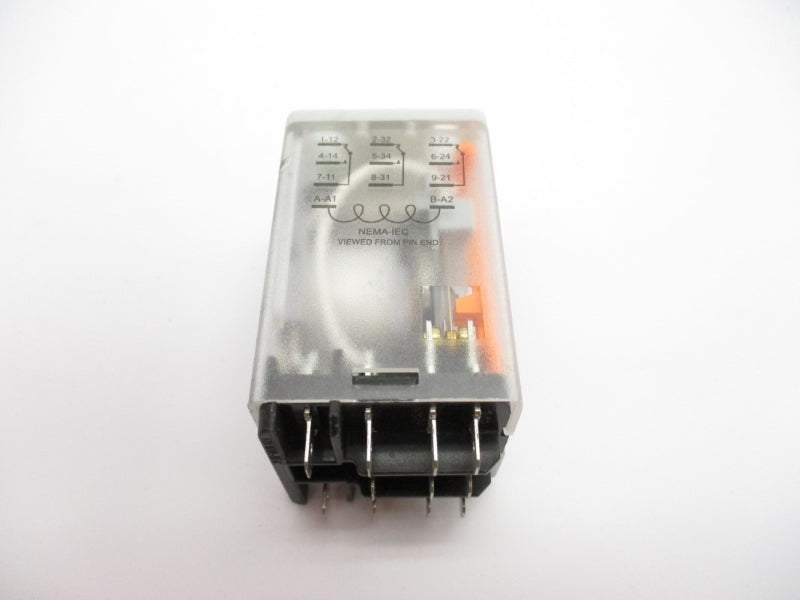

• Contact Configuration: 3PDT
• Operating Temperature: -40 to +55C
• Environmental Conditions: -40 to 85 C
• Manufacturer Part Number: 3TX7115-5NF13
• Number of Pins: 11
• Mounting Type: Socket Mount
• Series: 3TX Series
• Primary Type: Power Relays
• Termination: Blade
• Contact Current Rating: 10 A
• Contact Form: 3PDT
• Current Rating: 10 A
• Control Voltage: 120 V
• Contact Voltage Rating: 300 V

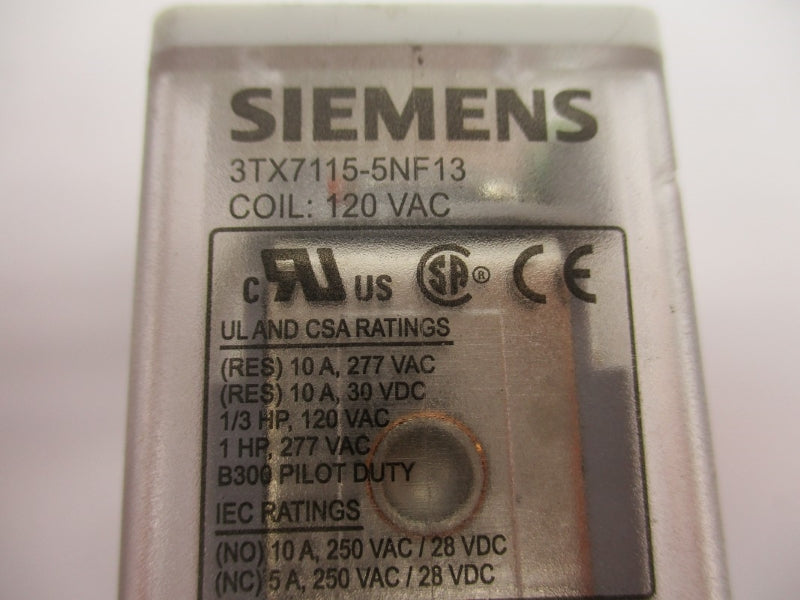

• Standards: UL, CSA
• Approval: UL
