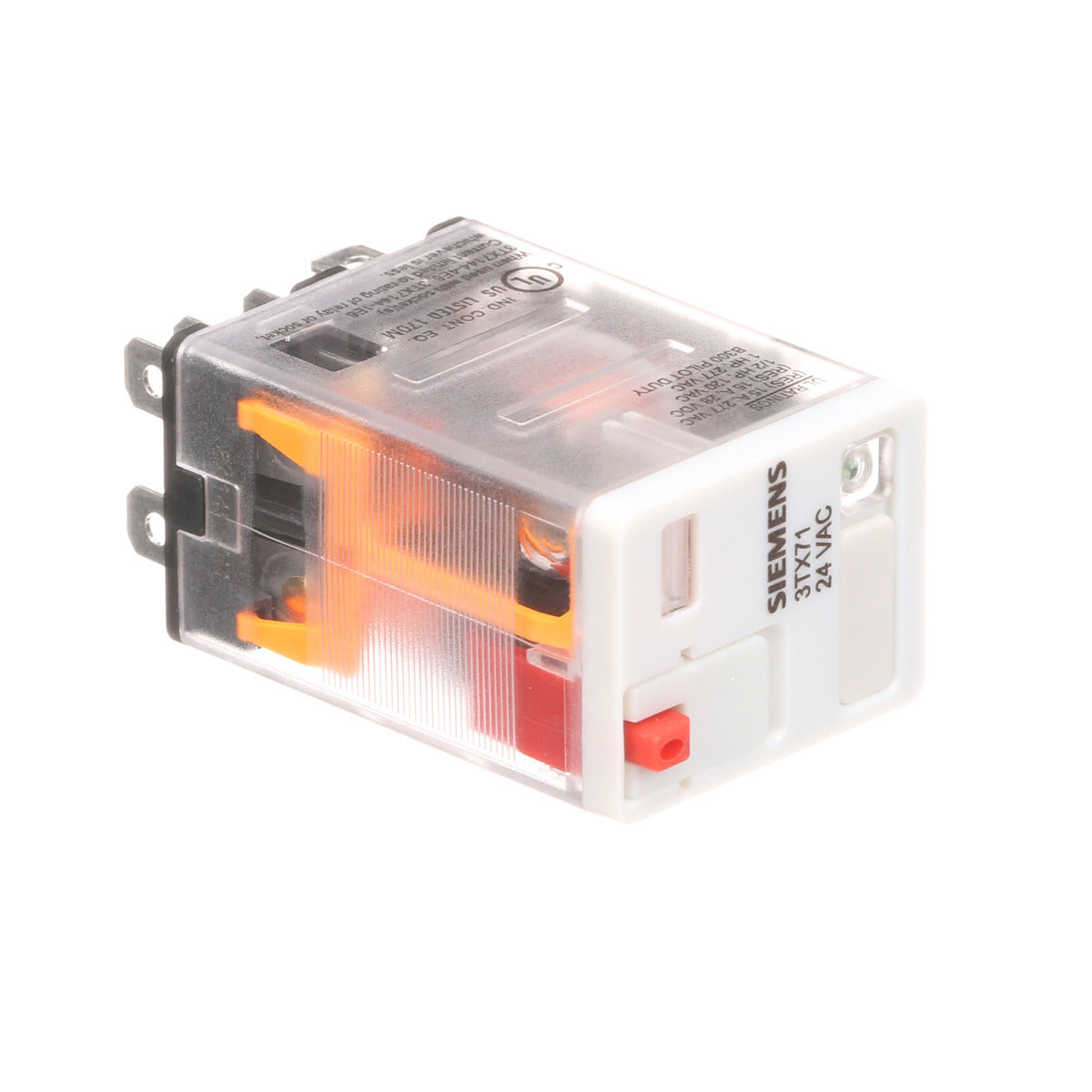

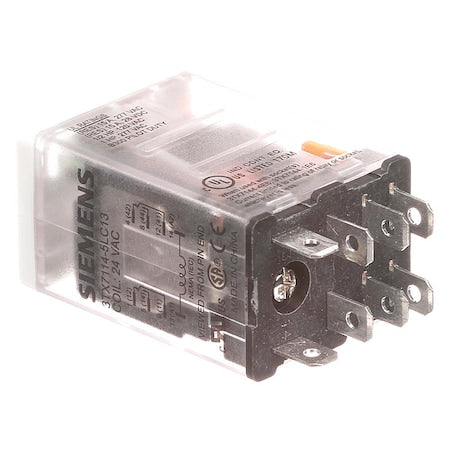

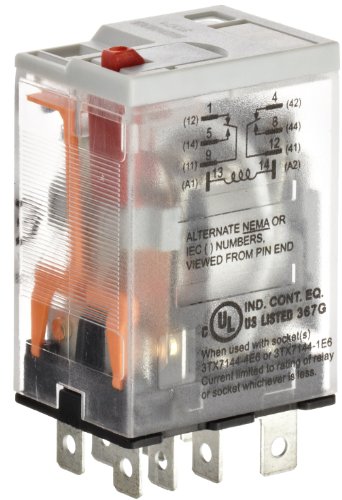

Siemens 3TX7114-5LC13 Plug-In Relay Premium LED Mechanical Flag 8-pin Square Base DPDT 15A 24VAC Uses Socket 3TX7144-1E6 or 3TX7144-4E6

Product Description

The Siemens 3TX7114-5LC13 Plug-In Relay is a reliable component for industrial automation. It features a premium LED indicator and a mechanical flag for clear status indication. This relay uses a 24VAC coil voltage and has an 8-pin square base configuration, designed to work with sockets 3TX7144-1E6 or 3TX7144-4E6.

• Premium LED indicator
• 8-pin square base
• Mechanical flag for status indication

Product Highlights

This relay is suitable for high-demand industrial applications, offering reliable performance with a 15A rating and DPDT contacts. The premium LED enhances usability, and the mechanical flag aids in troubleshooting.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3TX7114-5LC13
• Manufacturer: Siemens
• Country of Origin: China

Technical Specifications

• Coil Voltage: 24V AC
• Contact Form: DPDT
• Current Rating: 15 A
• Number of Pins: 8
• Base Shape: Square
• Body Depth: 1.1 in
• Body Width: 0.83 in
• Body Height: 1.42 in
• Mounting Style: Plug-In
• Status Indicator: Mechanical Flag
• Contact Material: Silver Alloy
• AC Contact Rating: 12A @ 277V, 15A @ 120V
• DC Contact Rating: 12A @ 28V
• Power Consumption: 0.9 W, 1.2 VA
• Compatible with Model Numbers: 3TX7144-1E6, 3TX7144-4E6
