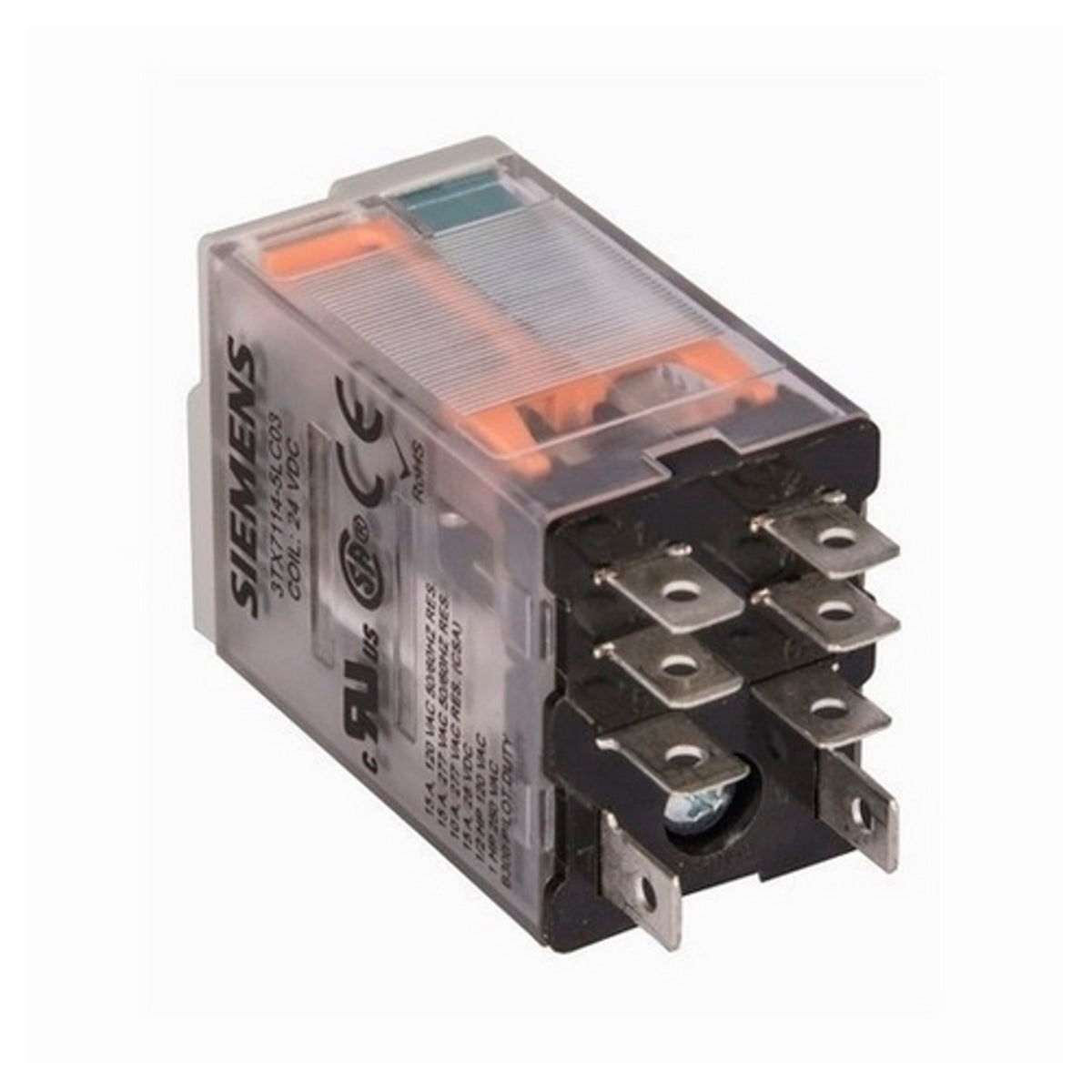

Siemens 3TX7114-5LC03 24 VDC 15 Amp DPDT Plug-In Relay

Product Description

The Siemens 3TX7114-5LC03 is a plug-in relay with a coil voltage of 24 VDC and a contact rating of 15 Amperes. Designed for use in control and automation applications, this relay fits into a square base socket (3TX7144-1E6 or 3TX7144-4E6) for easy installation. It features a mechanical flag and LED indicator for enhanced visibility of status.

• Coil voltage: 24 VDC
• Contact configuration: DPDT
• Operating temperature range: -40 to +55 degrees Celsius

Product Highlights

This relay is ideal for applications requiring reliable switching and control functionality. Its compact design and user-friendly installation make it suitable for various automation tasks.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: 3TX7114-5LC03
• Contact Rating: 15 A
• Coil Voltage: 24 V
• Contact Configuration: DPDT
• Enclosure: IP40
• Operating Cycles: 100000
• Frequency Rating: 50/60 Hz
• Size: 21 x 28 x 39 mm
• Country of Origin: China
