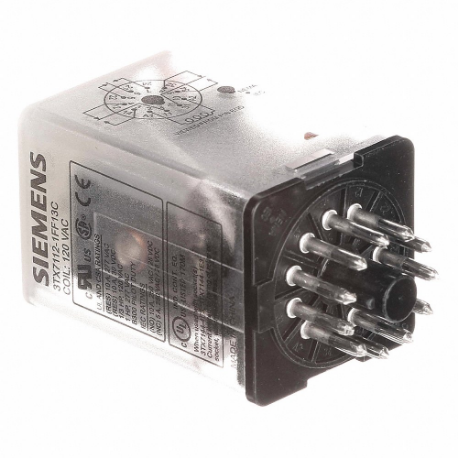

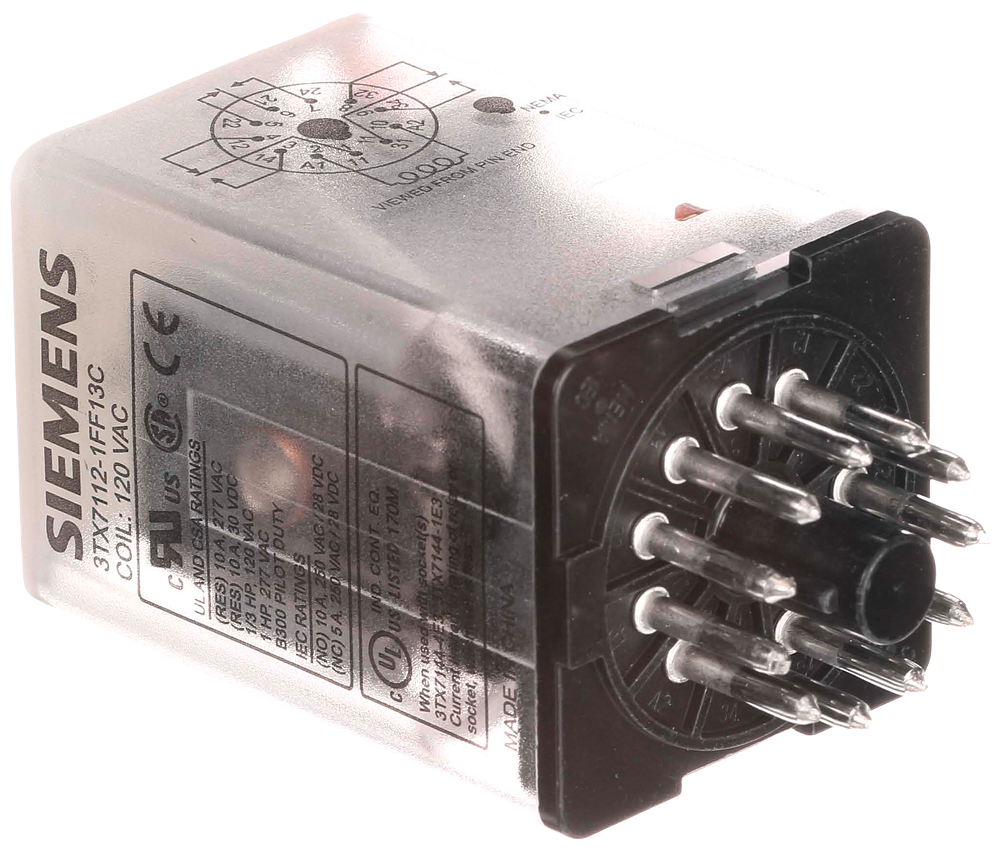

Siemens 3TX7112-1FF13C 120 VAC 16 Amp 3PDT Plug-In Relay

Product Description

The Siemens 3TX7112-1FF13C is a plug-in relay with an 11-pin octal base and 3PDT configuration. It is rated for 10A and operates at 120VAC. This relay is suitable for various industrial applications requiring reliable switching. It uses Socket 3TX7144-1E3 or 3TX7144-4E3.

• Uses socket 3TX7144-1E3 or 3TX7144-4E3
• 16 A at 240 VAC, 16 A at 120 VAC, 16 A at 28 VAC contact rating
• UL Listed

Product Highlights

Plug-in relay with 11-pin octal base, 3PDT configuration, and 120VAC operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7112-1FF13C
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Width: 2.600 in
• Height: 4-1/4 Inch
• Length: 3 Inch
• Part Number #: 3TX7112-1FF13C
• Base Type: Octal, Octal/Plug-In
• Contact Form: 3PDT
• Contact Rating: 16 A at 240/120/28 V AC
• Temperature Rating (Degrees F): -40 to 55, -40 to 55 deg C
• Type: Basic, Basic Standard
• UNSPSC: 39122326
• Item: Plug-In Relay
• Ac Contact Rating: 10A @ 120V
• Coil Voltage: 120V AC
• Current Rating: 10A
• Hp @ 120v Ac: 1/3 hp
• Hp @ 240v: 1/2 hp
• Mfr. Series: 3Tx71 Series
• Motor Rating: Yes
• Number Of Pins/terminals: 11
• Push-to-test Button: No Test Button
• Relay Mounting Style: Socket
• Socket Code: B
• Status Indicator: No
• MPN: 3TX7112-1FF13C
• Category: Relay/Socket
• Operating Temperature: -40 to 55 deg C
