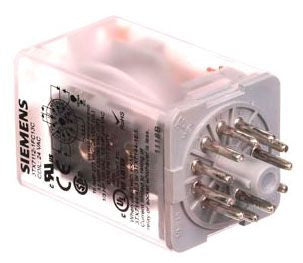

Siemens 3TX7112-1FC13C Plug-in Relay

Product Description

The SIEMENS 3TX7112-1FC13C is a plug-in relay designed for use in industrial control and automation applications. This compact relay mounts directly into a compatible relay socket, making wiring connections clean and allowing for fast field replacement without disturbing existing wiring. Its plug-in design supports modular panel layouts common in commercial HVAC controls, motor starters, and building automation systems. Licensed electricians and industrial controls technicians are the typical installers for this type of relay.

This relay is suited for use in panel-mounted control systems where space is limited and reliability is critical. Typical applications include control panel assemblies, relay logic circuits, and auxiliary control functions in commercial and light industrial environments. Its compact footprint makes it a practical choice for dense terminal and relay arrangements inside electrical enclosures.

Key Features

• Plug-in form factor allows fast replacement without rewiring
• Compact dimensions support dense panel layouts
• Compatible with corresponding relay socket bases for secure seating
• Suitable for industrial control and building automation applications

Compatibility

Designed as an OEM-style plug-in relay for use with compatible SIEMENS relay socket bases in industrial and commercial control panel applications.

Installation Notes

Installation should be performed by a qualified electrician or controls technician in accordance with NEC requirements. De-energize and lock out the control panel before inserting or removing the relay. Seat the relay fully into its socket to ensure proper electrical contact. Verify socket compatibility before installation to avoid damage to the relay or control circuit.

Technical Specifications

• Weight: 0.022 pounds
• Length: 0.311 inches
• Width: 0.154 inches
• Height: 0.154 inches
• UPC: 75455497025

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7112-1FC13C
