Siemens 3TX7111-3HF13C Plug-in Relay 120V AC (14-pin) 3TX7144-1E5

Product Description

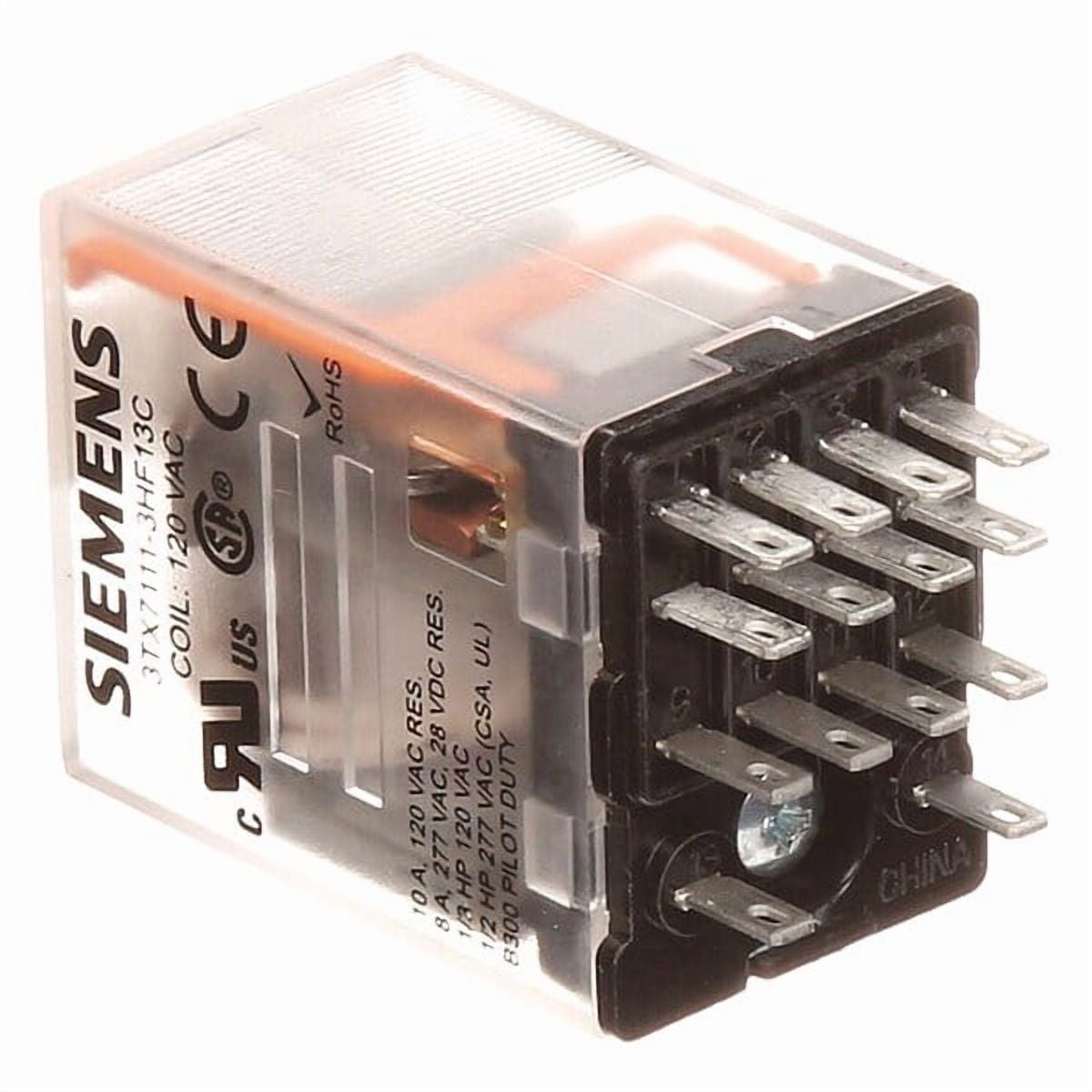

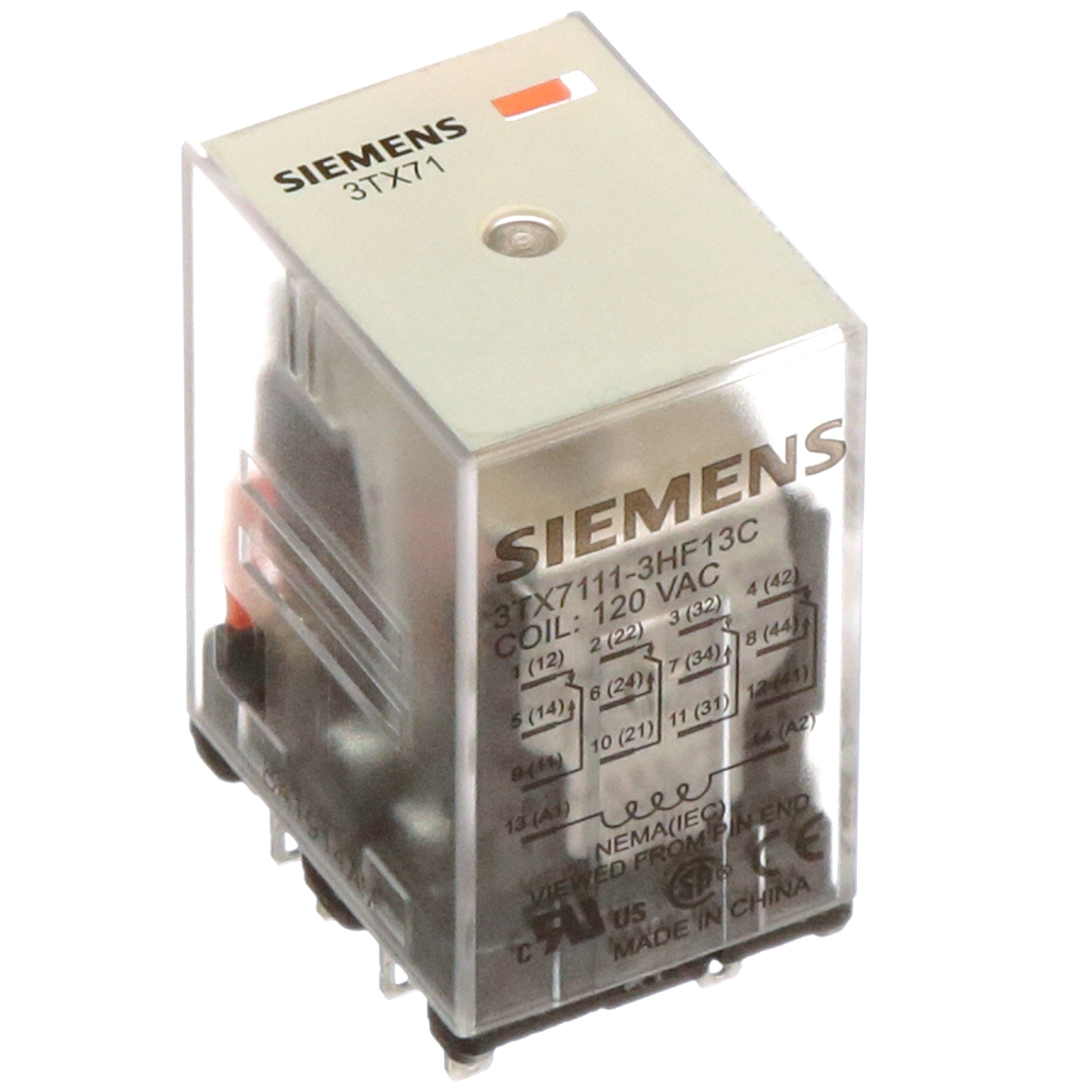

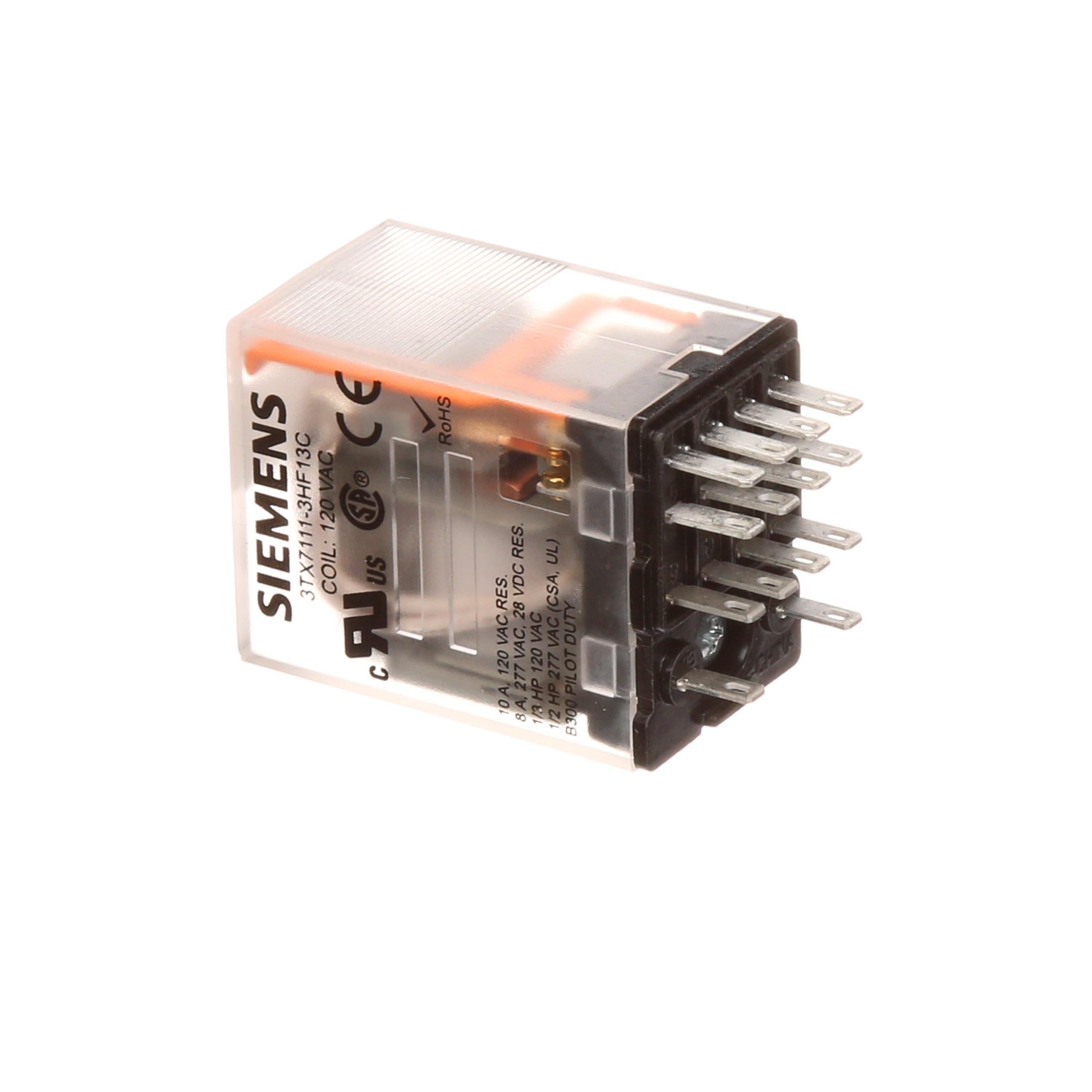

The Siemens 3TX7111-3HF13C is a plug-in 4PDT relay with a 120 V AC coil and a 14-pin square base designed for socket mounting in control and automation circuits. It features silver alloy contacts rated 6 A (AC), a contact voltage rating up to 300 V, power consumption of approximately 0.9 W / 1.2 VA, and an IP40 enclosure with 10 gn shock resistance; horsepower ratings are 1/3 hp @ 120 V AC and 1 hp @ 240 V AC.

• Coil: 120 V AC; contact form: 4PDT (4 Form C); 14-pin square plug-in base
• Contact rating: 6 A (AC); contact voltage rating up to 300 V; silver alloy contacts
• Power consumption ~0.9 W / 1.2 VA; IP40 protection; shock resistance 10 gn; UL listed

Product Highlights

Plug-in 4PDT relay, 120 V AC coil, 6 A contacts, 14-pin square base

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7111-3HF13C
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3TX7111-3HF13C
• Series: 3TX71 Series
• Type: Plug-in relay (ice cube style)
• Coil Voltage: 120 V AC
• Contact Form: 4PDT (4 Form C)
• Contact Rating: 6 A (AC)
• Contact Voltage Rating: 300 V AC
• Contact Material: Silver alloy
• Number of Pins: 14
• Base Type: Square (14-pin)
• Mounting Type: Plug-in (socket)
• Power Consumption: 0.9 W / 1.2 VA
• Horsepower: 1/3 hp @ 120 V AC; 1 hp @ 240 V AC
• IP Rating: IP40
• Shock Resistance: 10 gn
• Body Dimensions: 1.62 in W x 1.10 in H x 0.83 in D
• Operating Temperature: -40 to 55 C
• Certifications: UL listed
• Compatible Socket: 3TX7144-1E5, 3TX7144-4E5
• Country of Origin: China
