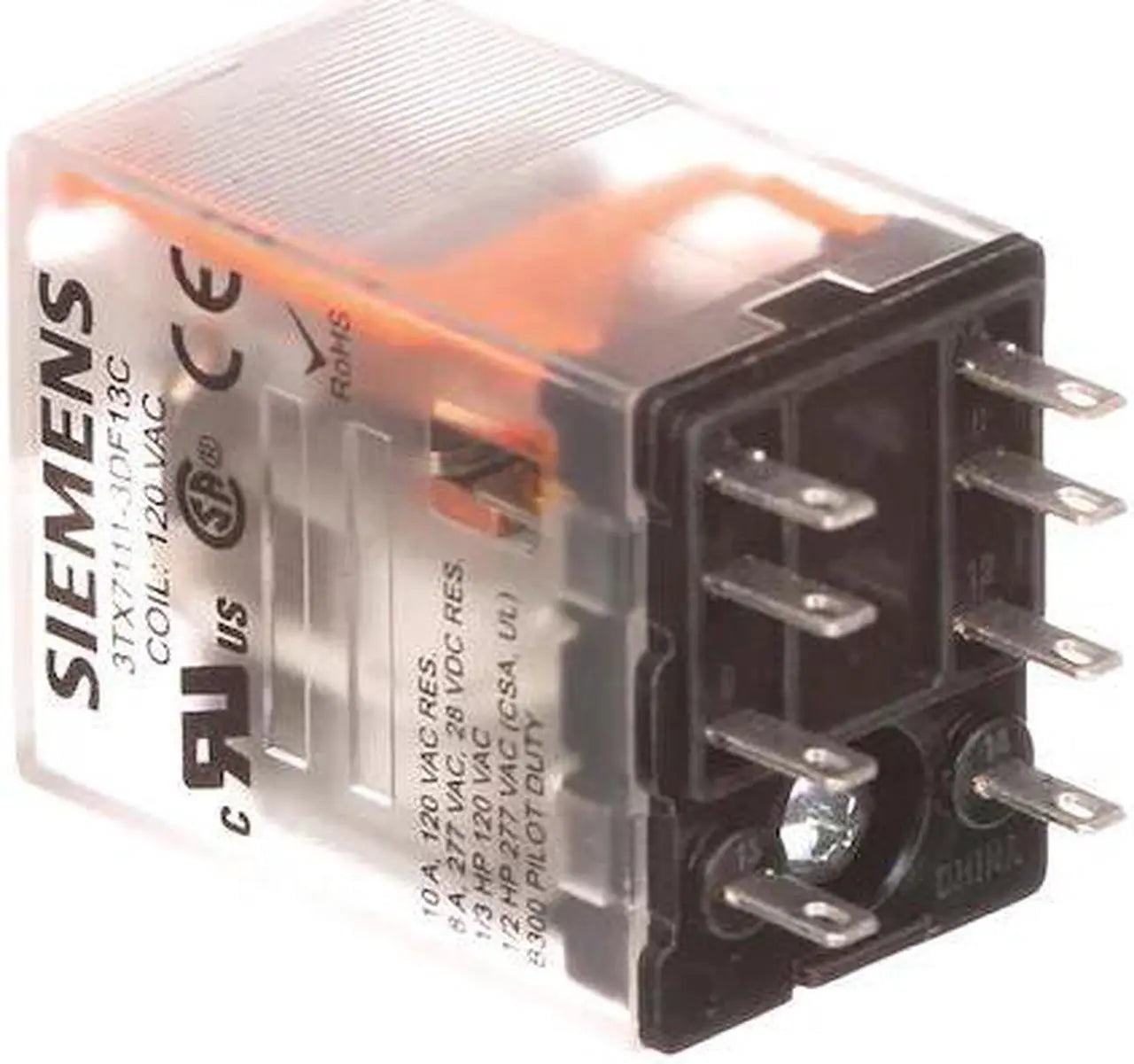

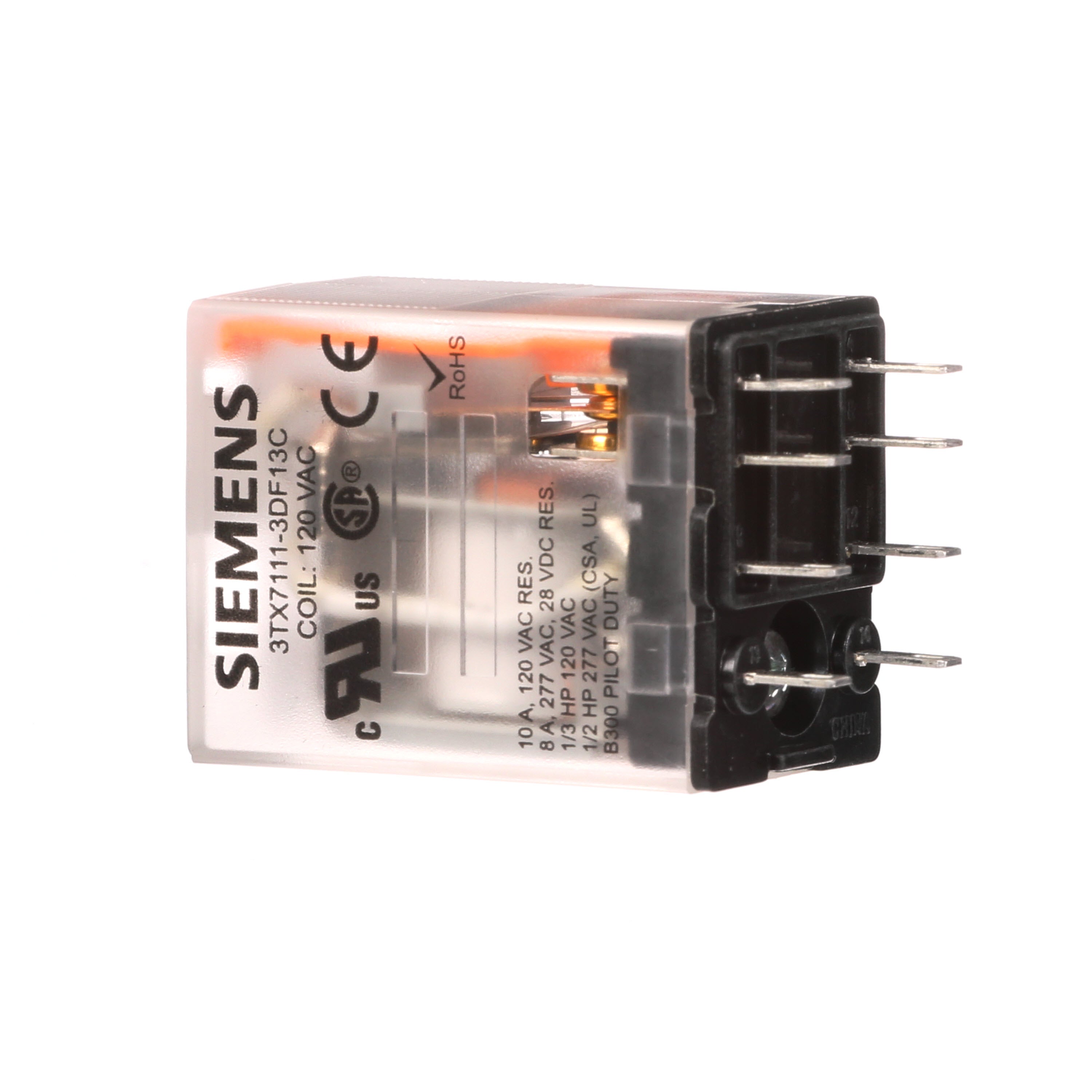

Siemens 3TX7111-3DF13C Plug-In Relay, DPDT, 12A, 120VAC

Product Description

The Siemens 3TX7111-3DF13C is a plug-in relay with a DPDT contact configuration, designed for AC operation. It features a contact voltage rating of 300V and a contact current rating of 10A, with a coil voltage of 120VAC. This relay is suitable for various applications requiring reliable switching. It is equipped with a mechanical flag indicator.

• Contact Configuration DPDT
• Coil Voltage 120 VAC
• Mounting Plug-In, Square Base

Product Highlights

This Siemens plug-in relay offers a reliable solution for general-purpose switching applications, with a focus on economy and essential features.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7111-3DF13C
• Country of Origin: CN

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Contact Configuration: DPDT
• Approval: UL
• Contact Material: Silver Alloy
• Ambient Temperature Rating: -40 to 55 Deg C
• Enclosure Type: IP40
• Coil Voltage: 120 VAC
• Contact Current Rating: 12 A
• Contact Voltage Rating: 300 V
• Mounting Type: Socket Mount
• Manufacturer Part Number: 3TX71113DF13C
• Series: 3TX Series
• Termination: Blade
• Current Rating: 12 A
• Primary Type: Power Relays
• Features: Degree of Protection IP40, Shock Resistance 10gn
• MPN: 3TX7111-3DF13C
• Model: 3TX7111-3DF13C
• Country of Origin: CN
• Base Shape: Square
• Number of Pins: 8
• Status Indicator: No Indicator
• Contact Rating (AC): 10 A @ 120V
• Horsepower @ 120V AC: 1/3 hp
• Horsepower @ 240V AC: Not Rated
• Input Voltage: 120V AC
