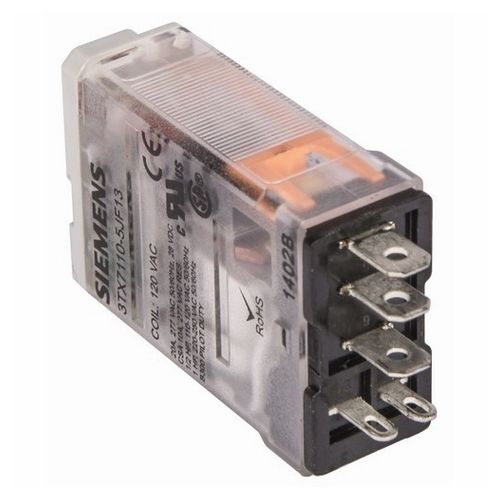

Siemens 3TX7110-5JF13 120 VAC 20 Amp SPDT Plug-In Relay

Product Description

The Siemens 3TX7110-5JF13 is a plug-in relay with a coil voltage of 120 VAC and a contact rating of 15 Amperes. This device is designed for general-purpose applications, providing reliable switching capabilities in industrial automation. It features a premium LED and a mechanical flag indicator for easy operation and monitoring.

• Designed for plug-in use with a square base.
• SPDT contact configuration allows for versatile application.
• Operates under a temperature range of -40 to +55C.

Product Highlights

The relay supports 100,000 operating cycles, ensuring longevity in demanding environments. Additionally, it is rated for frequencies of 50/60 Hz and has an IP40 enclosure, which protects it from dust and moisture.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Coil Voltage: 120 V
• Contact Rating: 15 A
• Contact Configuration: SPDT
• Operating Temperature: -40 to +55 C
• Environmental Conditions: Storage temperature -40 to +85 C
• Size: 28 x 14 x 41 mm
• Frequency: 50/60 Hz
• Country of Origin: China
