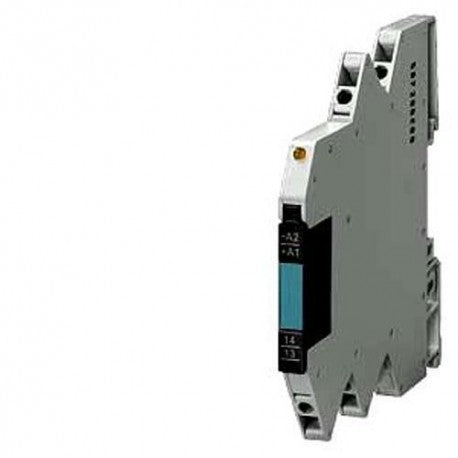

Siemens 3TX7014-1AM00 Relay, 24VDC, 1NO

Product Description

The SIEMENS 3TX7014-1AM00 is a 24VDC relay with 1NO contact. This interface relay features front-accessible wire inlets and connections for faster wiring and prevention of wiring errors. It has an enclosure width of 6.2 mm and screw terminals. It is suitable for various industrial applications.

• Wire inlet and connections can be accessed from the front for faster wiring
• Linking of control supply voltage and control signals with 16-pole connecting comb
• Functional state indicated by yellow LED

Product Highlights

The SIEMENS 3TX7014-1AM00 relay offers efficient wiring and clear functional indication for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7014-1AM00
• Country of Origin: CZ

Technical Specifications

• Brand: Siemens
• Catalog Number: 3TX7014-1AM00
• Coil Voltage: 24 VDC
• Contact Form: 1NO
• Contact Rating: 3 A at 230 VAC/1/0.1 A at 24/230 VDC
• Country of Origin: CZ
• Dimensions: 89.5 mm H x 6.2 mm W x 92 mm D
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Gross Weight Per Pack: 0.0800 lb
• Manufacturer: Siemens
• Returnable: Y
• Standards: CCC Certified, CE Marked, EAC Rated, RoHS Complaint, UL Listed
• Temperature Rating: -25 to 55 °C
• Terminal Type: Screw
• Type: Interface
• UNSPSC: 39122326
• Weight: 0.05 lbs
