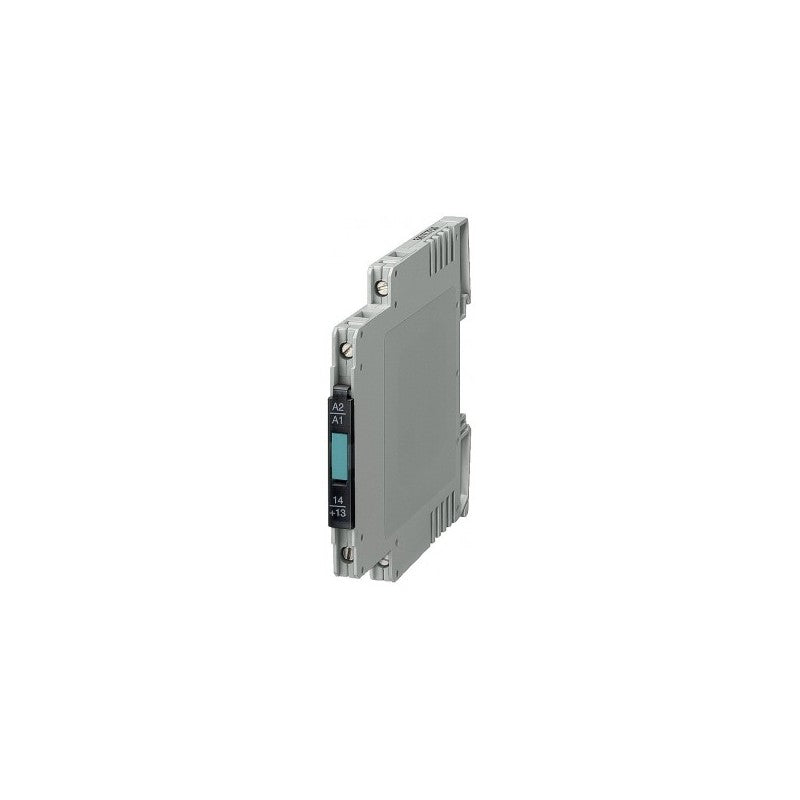

Siemens 3TX7004-4PG24 1P Optocoupler Relay with NO Contacts, 6 A, 230 V ac Coil

Product Description

The SIEMENS 3TX7004-4PG24 is an optocoupler interface relay with NO contacts and a 230 V ac coil. Opto-couplers switch using semiconductors, making them resistant to wear. It is also described as an input coupling link with HL output and a 6.2 mm enclosure width. It is suitable for DIN rail mounting.

• 6 A current rating
• Switches using semiconductors
• Suitable for DIN rail mounting

Product Highlights

The SIEMENS 3TX7004-4PG24 optocoupler relay offers reliable switching with a compact design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7004-4PG24

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3TX70044PG24
• Series: 3TX Series
• UPC Code: 4011209521650
• Mount: DIN Rail
• Switching Current: 6 A
• Switching Voltage: 250 V
• Termination: Screw
• Width: 6.2 mm
• Environmental Classification: RoHS Compliant
• HS Code / Commodity code: 85364900
• Primary brand: Siemens
• Functions: Input coupling link - HL output
• Design: Input coupling link - HL output
• Rated current: 0.1A
• Control Voltage (AC): 110Vac-230Vac
• Control Voltage (DC): 30Vdc
• Protection functions: short circuit-proof
• MPN: 3TX7004-4PG24
