Siemens 3SU18010AA000AB2 Pushbutton enclosure 22 mm (1 hole)

Product Description

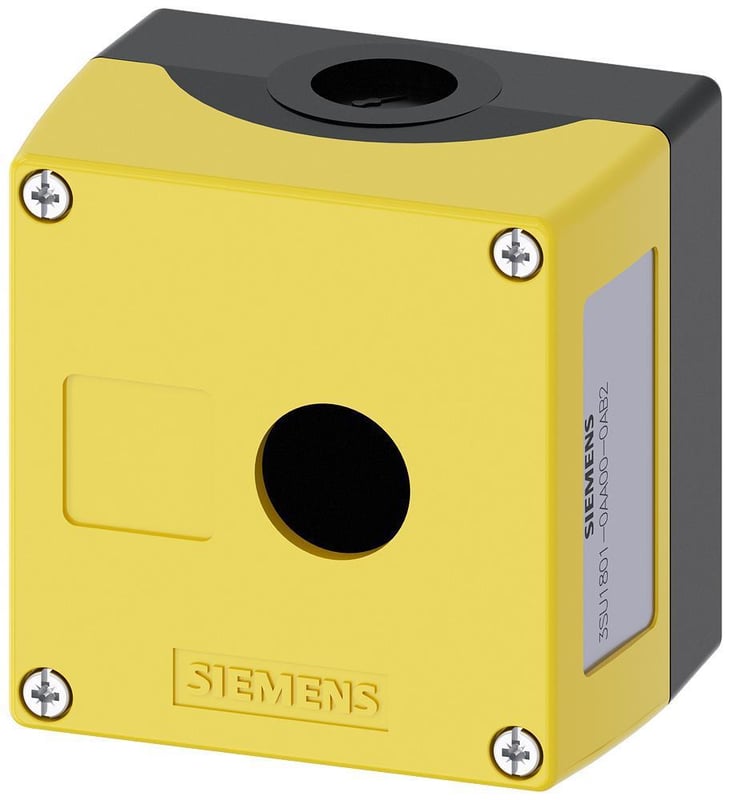

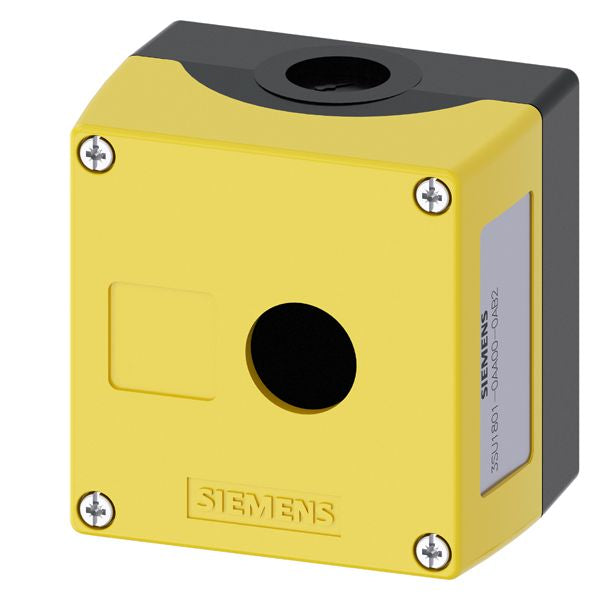

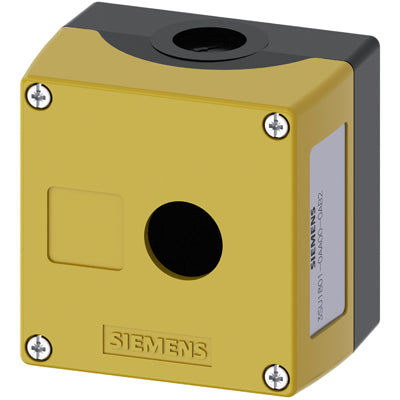

Siemens 3SU18010AA000AB2 is a plastic 22 mm round enclosure for command devices, supplied unequipped for a single pushbutton or indicator. The enclosure includes a recess for labels and supports base mounting of contact modules and LED modules. It measures 85 mm wide by 64 mm deep, accepts M20 cable entry, is rated for operation up to 400 V, and carries IP and NEMA environmental ratings with a -25 to 70 °C range.

• 22 mm round plastic enclosure for one pushbutton/indicator with recess for labels; supplied unequipped
• Environmental and electrical ratings: IP66/IP67/IP69/IP69K; NEMA 1/2/3/3R/4/4X/12/13; operational voltage up to 400 V; temperature -25 to 70 °C
• Physical and mounting details: 85 mm W x 64 mm D; M20 cable entry; supports base mounting with screw lock; supports contact and LED modules

Product Highlights

Single-hole 22 mm pushbutton enclosure; label recess; IP66–IP69K and multiple NEMA ratings; 85 x 64 mm; supplied unequipped

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU18010AA000AB2
• Country of Origin: China

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3SU18010AA000AB2
• Series: 3SU1
• Product Name: Pushbutton enclosure (enclosure for command devices)
• Hole Size: 22 mm
• Number of Holes: 1
• Material: Plastic
• Width: 85 mm
• Depth: 64 mm
• Length: 3.65 Inch
• Height: 3.8 Inch
• Weight: 0.460 lb
• Country of Origin: China
• IP Rating: IP66/IP67/IP69/IP69K
• NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13
• Operational Voltage: Up to 400 V
• Temperature Rating: -25 to 70 °C
• Cable Entry Size: M20
• Mounting Type: Base mounting (supports base mounting of contact and LED modules)
• Lock Type: Screw
• Compatibility: Supports base mounting of contact modules and LED modules
• RoHS Compliance: RoHS compliant
• UPC: 804766075018
