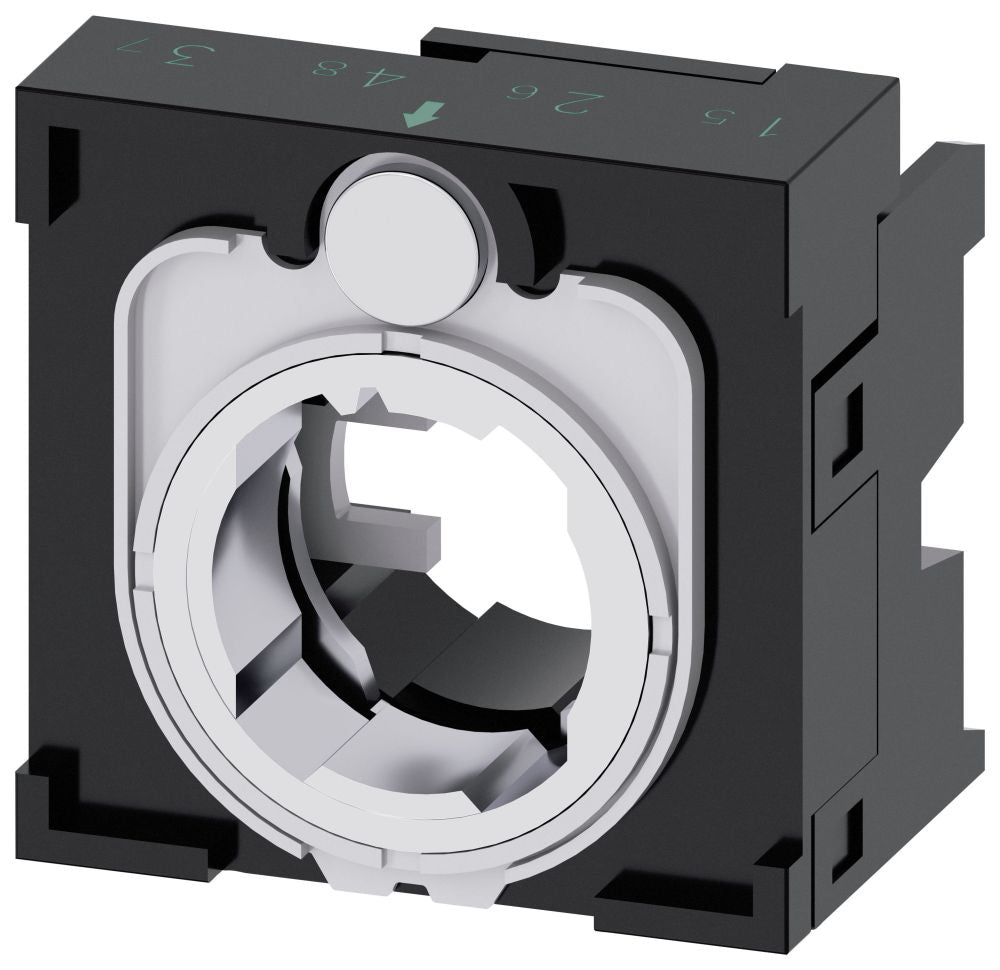

Siemens 3SU15000BA100AA0 Push Button Holder

Product Description

The SIEMENS 3SU15000BA100AA0 is a modular holder designed to organize and mount up to four push button or pilot device modules in a single assembly. It serves as a structural base within control station configurations, keeping individual operator interface components aligned, secure, and electrically interconnected where required. This holder is a small but critical component in building multi-function control stations used in industrial and commercial electrical panels. Electricians and controls technicians install this part when assembling or expanding operator control assemblies. Packaged as one unit, it measures 1.575 inches x 1.575 inches x 1.102 inches and weighs 0.077 pounds.

This holder fits into Siemens modular push button and pilot device systems, typically used in industrial control panels, machine control stations, and process equipment. It is suited for applications where multiple operator inputs must be grouped in a single enclosure cutout or mounting arrangement. The compact footprint makes it practical in space-constrained panel builds for both new installations and retrofit projects.

Key Features

• Accepts up to four modular push button or pilot device components in a single holder
• Compact form factor at 1.575 x 1.575 x 1.102 inches for space-efficient panel layouts
• Lightweight construction at 0.077 pounds for easy handling during assembly
• Sold individually, one holder per pack
• Designed for integration into Siemens 3SU1 modular operator interface systems

Compatibility

Designed as an OEM-style component for use within the Siemens 3SU1 series modular push button and pilot device system. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation of this holder is typically performed by a licensed electrician or qualified controls technician. De-energize the control panel and follow lockout/tagout procedures before beginning any work on operator control stations. Ensure the holder is fully seated and latched before inserting individual push button modules. Work should comply with applicable NEC requirements for industrial control wiring and panel assembly.

Technical Specifications

• Length: 1.575 inches
• Width: 1.575 inches
• Height: 1.102 inches
• Weight: 0.077 pounds
• Quantity per Pack: 1
• UPC: 80476624481

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU15000BA100AA0
