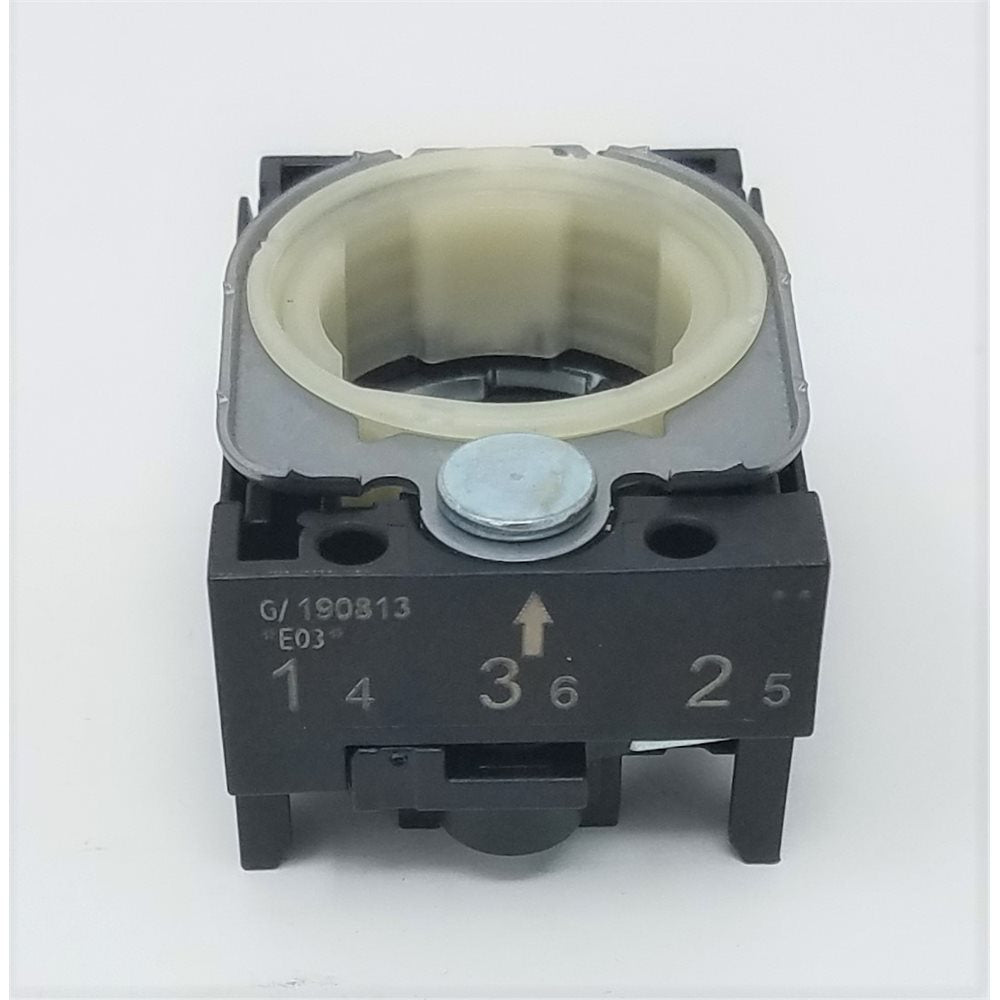

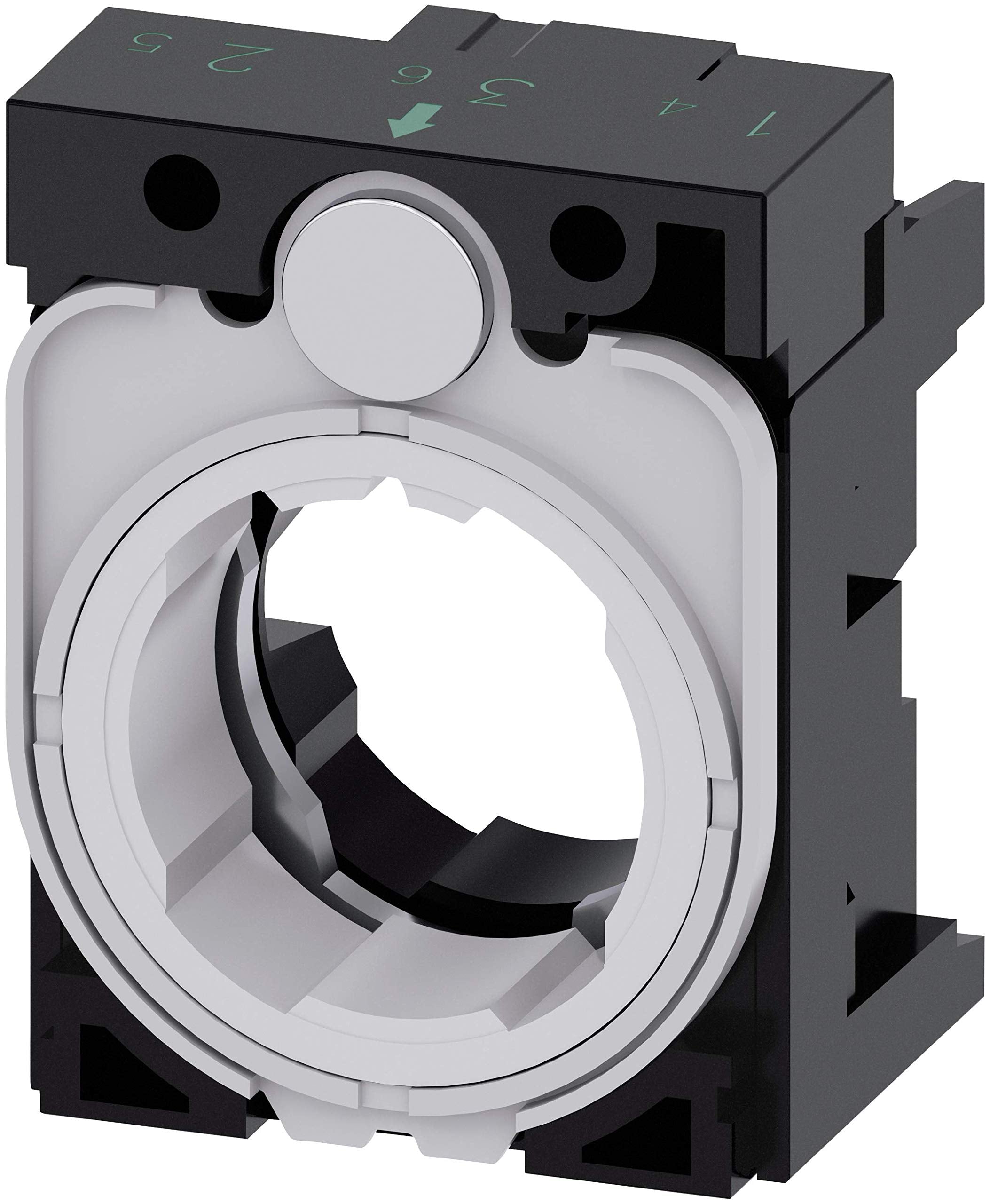

The Siemens 3SU1500-0AA10-0AA0 is a plastic holder designed to hold 3 modules. It is for use with SIRIUS ACT actuators and indicators. The holder features a screw terminal. This holder offers full twist protection and can be mounted into groove-free holes.
Holder for 3 modules
Made of plastic
For use with SIRIUS ACT actuators and indicators
Product Highlights
The Siemens 3SU1500-0AA10-0AA0 holder is easy to install with a snap-on concept and can be done with one hand.
Product Information
Standard Information
Brand: SIEMENS
Manufacturer Part Number: 3SU1500-0AA10-0AA0
Country of Origin: Germany
Technical Specifications
Brand
SIEMENS
Item Model Number
3SU1500-0AA10-0AA0
Manufacturer
Siemens Industry
Product Group
BISS
Model / MPN
3SU1500-0AA10-0AA0
Size
22 mm
Number of Items
1.0
MPN
3SU1500-0AA10-0AA0
Material
Plastic
For Use With
Plastic Operators 3SU1 Series
Mounting Type
Front plate mounting
Accessory Type
Holder
Installation Depth
30.1 mm
Installation Width
30 mm
Degree Of Pollution
3.0
Product Designation
Holders
Number of LED Modules
0.0
Material of the Holder
Plastic
Product Type Designation
3SU1
Number of Contact Modules
0.0
Insulation Voltage Rated Value
500 V
Design of the Operating Mechanism
3-way without module
Shape of the Installation Opening
round
Ambient Temperature During Storage
-40 to +80°C
Ambient Temperature During Operation
-25 to +70°C
Surge Voltage Resistance Rated Value
6 kV
Shock Resistance acc. to IEC 60068-2-27
Sinusoidal half-wave 50 g / 11 ms
Mechanical Service Life (Switching Cycles)
10
Number of CO Contacts for Auxiliary Contacts
0.0
Number of NC Contacts for Auxiliary Contacts
0.0
Number of NO Contacts for Auxiliary Contacts
0.0
Tightening Torque of the Screws in the Bracket
1 to 1.2 N·m
Environmental Category During Operation acc. to IEC 60721
3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 to 95 %, no condensation in operation permitted)
Shock Resistance for Railway Applications acc. to DIN EN 61373
