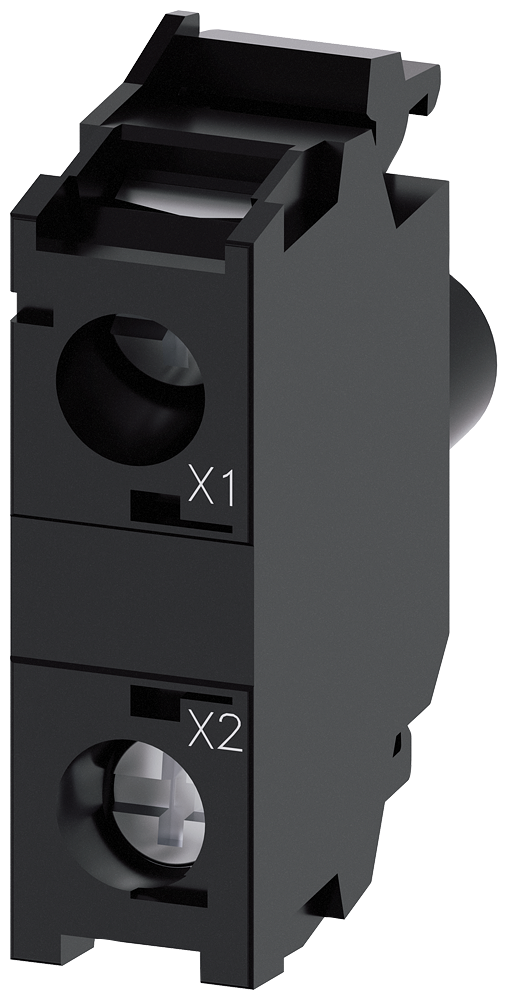

Siemens 3SU14011BH501AA0 LED Module 24-240V

Product Description

The Siemens 3SU14011BH501AA0 LED Module features an integrated LED, operating on 24 to 240 VAC/VDC. It is designed for front plate mounting with screw terminals. Suitable for diverse applications requiring clear signaling, this module enhances visibility and operational safety. The LED module is RoHS compliant.

• Integrated LED
• Operating Voltage: 24 to 240 VAC/VDC
• Screw terminal connection

Product Highlights

The Siemens LED module is designed for clear indication and easy integration into existing systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU14011BH501AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Voltage: 24-240 VAC
• Lamp Type: LED
• Lens Color: Blue
• Terminal Type: Screw
• Connection Type: Screw Connection
• Country of Origin: Czech Republic
• Temperature Rating: -25 to 80 degrees C
• Width: 4.000 in
• Height: 1/2 Inch
• Length: 6 Inch
• Series: 3SU1 Series
• Mounting Type: Surface
• Enclosure Type: NEMA IP40
• Contact Rating: 20 mA
• Standard & Approvals: CE Marked, CCC, CSA Certified, RoHS Compliant, UL Listed
• Environmental Classification: RoHS Compliant
• Integrated diode present [Specifications]: Yes
• Design of radiation source [Specifications]: LED
• Integrated illuminants present [Specifications]: Yes
• max. rated operating voltage Ue with DC [Specifications]: 240 volt
• min. rated operating voltage Ue with DC [Specifications]: 24 volt
• max. rated operating voltage Ue with AC 50 Hz [Specifications]: 240 volt
• max. rated operating voltage Ue with AC 60 Hz [Specifications]: 240 volt
• min. rated operating voltage Ue with AC 50 Hz [Specifications]: 24 volt
• min. rated operating voltage Ue with AC 60 Hz [Specifications]: 24 volt
