Siemens 3SU14011BH201AA0 LED Module, 24-240V, AC/DC, Screw T

Product Description

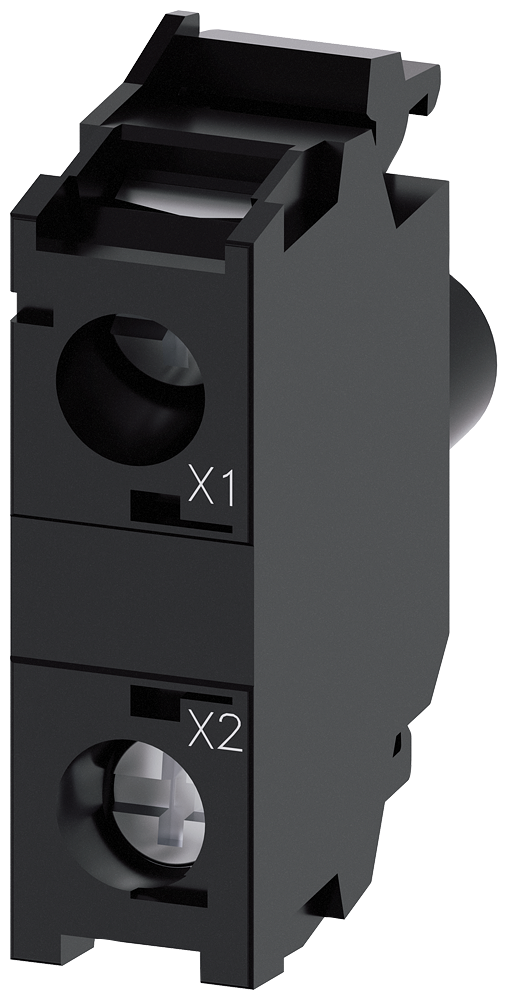

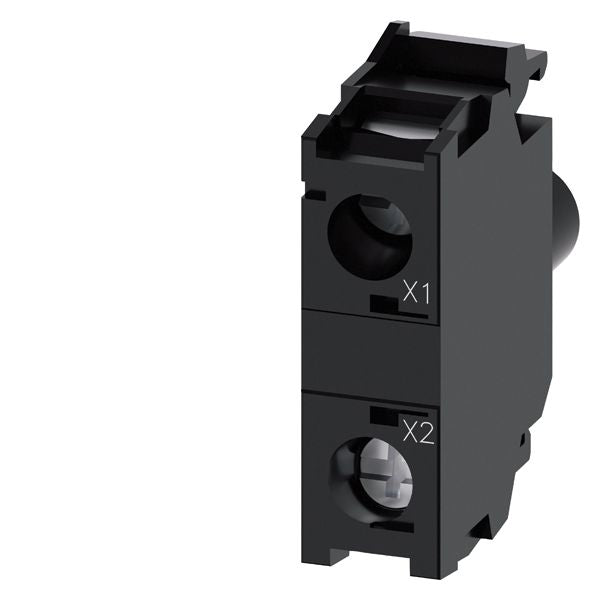

The SIEMENS 3SU14011BH201AA0 is an LED module with integrated LED, designed for front plate mounting. It operates on 24-240V AC/DC and features a screw terminal connection. This module is part of the SIRIUS ACT series, known for pushbuttons and signaling devices.

• Screw connection type
• AC/DC actuation type
• Integrated LED design

Product Highlights

LED module with integrated LED, 24-240V AC/DC, screw terminal, for front plate mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU14011BH201AA0
• Country of Origin: Czechia

Technical Specifications

• Item [Specifications]: LED MODULE
• Connection Type: Screw Connection
• Type of actuation [Specifications]: AC/DC
• Color: Red
• Design of radiation source [Specifications]: LED
• description of product type [Specifications]: 3SU1
• Integrated illuminants present [Specifications]: Yes
• Rated Operating Voltage with DC, Max: 240 volt
• Rated Operating Voltage with DC, Min: 24 volt
• Rated Operating Voltage with AC 50 Hz, Max: 240 volt
• Rated Operating Voltage with AC 60 Hz, Max: 240 volt
• Rated Operating Voltage with AC 50 Hz, Min: 24 volt
• Rated Operating Voltage with AC 60 Hz, Min: 24 volt
• Brand: SIEMENS
• Lamp Type: LED
• Manufacturer Part Number: 3SU14011BH201AA0
• Primary Type: Lamp Block and Holder
• Series: 3SU1 Series
• Used On: Front Plate Mounting
• Overview: SIRIUS ACT
• Lens Color: Red
• Temperature Rating: -25 to 80 degrees C
• Terminal Type: Screw
• Voltage: 24-240 VAC
• Sub Brand: Pilot Devices
• Alternate Catalog Number: 3SU1401-1BH20-1AA0
• Catalog Number: 3SU14011BH201AA0
• Standards: EN 50013UL ListedCSA CertifiedCCC CertifiedCE CertifiedEAC ApprovedABS ApprovedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved
• Voltage Rating: 24 to 240 VAC//VDC
• Case/Package: Module
• Environmental Classification: RoHS Compliant
• Integrated diode present [Specifications]: Yes
