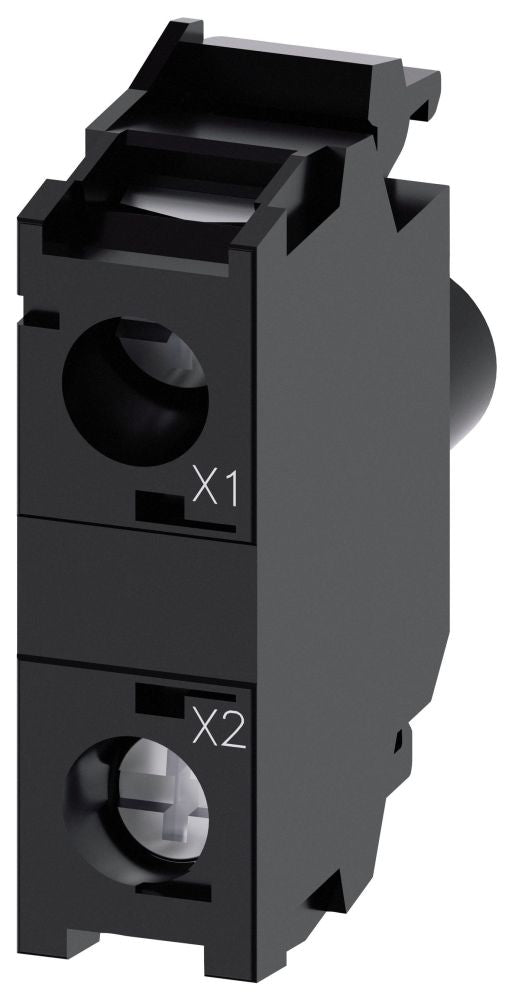

Siemens 3SU14011BB301AA0 Led Module

Product Description

The SIEMENS 3SU14011BB301AA0 is an LED module designed for use with compatible pushbutton and indicator light assemblies in industrial control applications. This module provides the illumination element within a larger operator interface device, supplying a reliable light source for status indication or illuminated pushbutton functions. Licensed electricians and industrial control technicians are the primary installers. The compact form factor fits within the standard 30-millimeter pushbutton mounting footprint and the module weighs approximately 0.07 pounds.

This LED module is suited for industrial control panels, machine operator stations, and process control enclosures where illuminated pushbutton or pilot light assemblies are required. It is used in both original equipment manufacturing and field replacement scenarios. The module integrates into the front-mounted operator interface assembly and is a serviceable component that can be replaced without removing the entire pushbutton assembly from the panel door.

Key Features

• LED light source provides long service life compared to incandescent lamp modules
• Compact 30-millimeter footprint fits standard industrial pushbutton assemblies
• Lightweight construction at approximately 0.07 pounds
• Designed as a field-replaceable module for ease of maintenance
• Compatible with SIEMENS 3SU series operator interface components

Compatibility

Designed as an OEM-style replacement LED module for use within the SIEMENS 3SU series pushbutton and indicator assembly platform.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician. De-energize the control panel and follow lockout/tagout procedures before servicing any operator interface components. The module snaps into the holder assembly; no special tools are typically required, but consult the manufacturer documentation for the specific holder and contact block configuration. Verify the correct voltage rating of the LED module matches the control circuit voltage before energizing.

Technical Specifications

• Mounting Size: 30 millimeters
• Dimensions (L x W x H): 1.18 inches x 1.18 inches x 0.39 inches
• Weight: 0.07 pounds
• Pack Quantity: 1 per pack
• UPC: 80476607348

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU14011BB301AA0
