Siemens 3SU14001AA101GA0 Contact Module 500 VDC (49.7 x 9.8 x 34 mm / 1 Pack) Replacement 3SU14001AA101GA0

Product Description

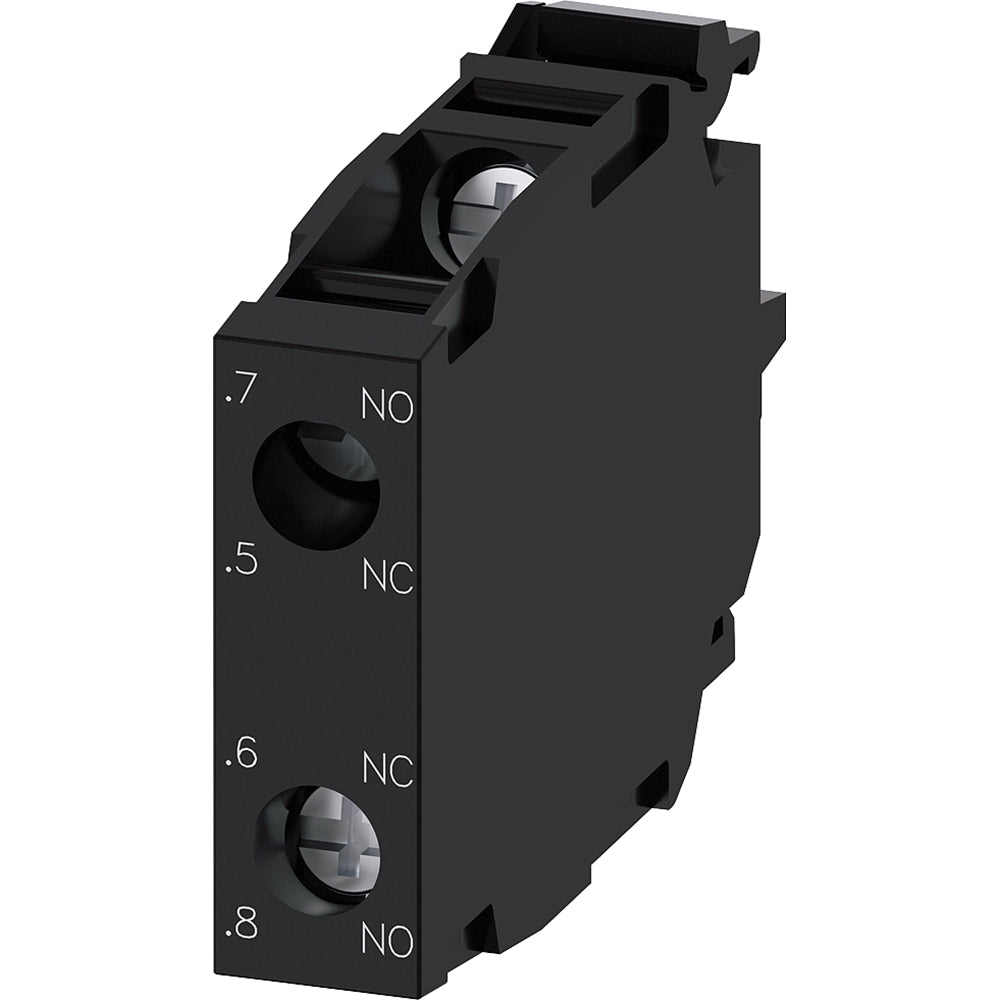

Siemens 3SU14001AA101GA0 is a SIRIUS ACT contact module with a 1 NO (leading) + 1 NC (lagging) configuration and two contact elements. The non-illuminated module mounts to the front plate and uses screw terminals for wiring, with a DC voltage rating of 500 VDC and compact dimensions of 34 mm H x 9.8 mm W x 49.7 mm D. It is suitable as a pushbutton/operator accessory for industrial control and signaling.

• Contact configuration: 1 NO (leading) + 1 NC (lagging); 2 contact elements
• Termination: screw terminals for front plate/panel mounting; non-illuminated
• Electrical ratings: rated 10 A at 24 VAC and 0.1 A at 500 VDC; voltage rating 500 VDC

Product Highlights

Compact SIRIUS ACT contact module with screw terminals, 1NO+1NC configuration, and 500 VDC rating for industrial operator panels.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU14001AA101GA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3SU14001AA101GA0
• Series: 3SU1 (SIRIUS ACT)
• Product Type: Contact module / switch contact block
• Contact Configuration: 1 NO (leading) + 1 NC (lagging)
• Number of Contacts: 2
• Contact Material: Silver alloy
• Rated Current: 10 A at 24 VAC; 0.1 A at 500 VDC
• Voltage Rating DC: 500 VDC
• Mounting Type: Front plate / panel mount
• Termination Style: Screw terminal
• Enclosure Rating: IP20/IP40
• Dimensions: 34 mm H x 9.8 mm W x 49.7 mm D
• Operating Temperature: Minimum -25 C; Maximum +70 C
• Certifications: RoHS Compliant; WEEE 2012/19/EU; CCC; UL; EAC; CE; ABS; LRS; PRS; RINA; RMRS; DNV-GL
