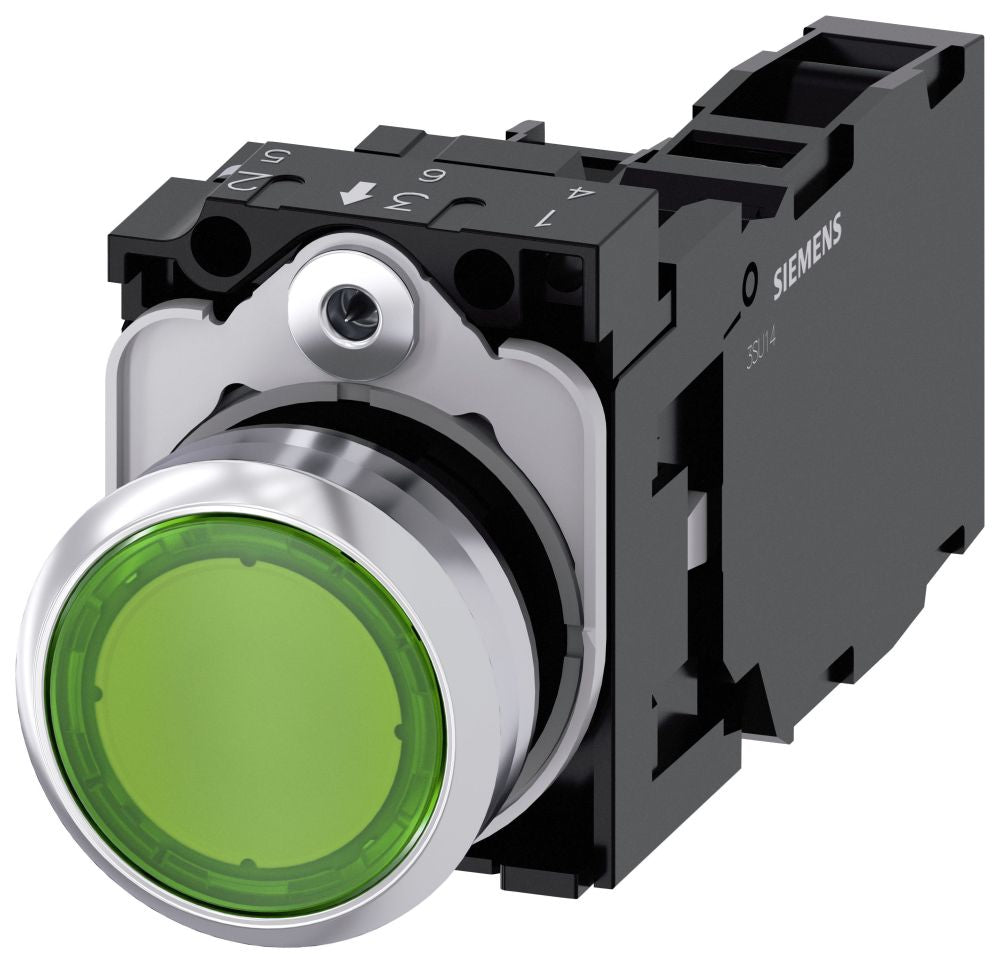

Siemens 3SU11530AB401FA0 Illuminated Pushbutton

Product Description

The SIEMENS 3SU11530AB401FA0 is an illuminated pushbutton designed for industrial control panel applications. Illuminated pushbuttons provide both a switching function and a visual status indicator, allowing operators to confirm circuit state at a glance. This unit is suited for use in machine control, process automation, and other industrial environments where clear operator feedback is essential. Licensed electricians and industrial controls technicians are the primary installers of this type of component.

This illuminated pushbutton is intended for use in industrial control panels, operator interface stations, and machine control enclosures. It fits into standard 22 mm cutout mounting configurations common across industrial pushbutton assemblies. The compact package dimensions of 5.945 inches by 2.362 inches by 1.772 inches make it straightforward to stage and handle during panel builds.

Key Features

• Integrated illumination provides visual circuit status indication at the operator interface
• Compact form factor suitable for standard industrial control panel installations
• Lightweight construction at 0.234 pounds for easy panel mounting
• Designed for use in machine control and process automation environments

Compatibility

Designed as an OEM-style replacement or direct-install illuminated pushbutton for industrial control panels using standard 22 mm operator device cutouts.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial controls technician. Disconnect and lock out all power to the control panel before removing or installing any pushbutton or operator device. Follow applicable NEC guidelines for control circuit wiring and panel construction. Verify the illumination voltage rating matches the control circuit voltage before completing wiring connections.

Technical Specifications

• Weight: 0.234 pounds
• Package Length: 5.945 inches
• Package Width: 2.362 inches
• Package Height: 1.772 inches
• UPC: 80476635906
• Quantity per Pack: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11530AB401FA0
