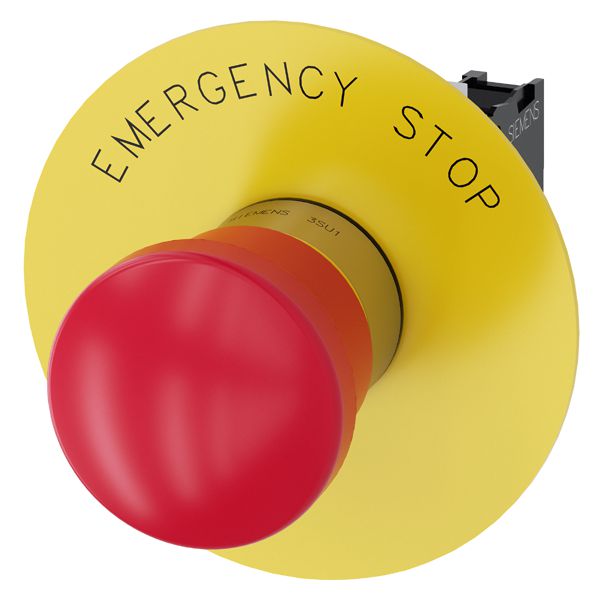

Siemens 3SU11501HA201CG0 3Su1 Emergency Stop, Push-Pull, Red Mushroom 40Mm

Product Description

The SIEMENS 3SU11501HA201CG0 is a 3Su1 emergency stop pushbutton with a push-pull mechanism and a red, 40mm mushroom head. It features a latching mechanism and pull to unlatch functionality. The device includes a yellow backing plate with 'emergency stop' inscription and a holder, along with 1NC contact and screw terminal.

• Emergency stop mushroom pushbutton
• 40mm mushroom head
• Latching, pull to unlatch

Product Highlights

Emergency stop pushbutton with a push-pull mechanism, designed for safety and ease of use.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11501HA201CG0
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11501HA201CG0
• Series: 3SU1 Series
• Head Size: 40 mm
• Hole Diameter: 22.3 mm
• Contact Configuration: 1NC
• Terminal Type: Screw
• Operator Type: Mushroom Head
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
• Standard: ISO13850andIEC60947-5-5
• Standards: CSA CertifiedUL ListedEAC ApprovedCE CertifiedEN ISO 13850
• Material: Metal
• Contact Mode: Positive Latching/Pull-to-Unlatch
• Country of Origin: DE
• Height: 0.7 Inch
• Length: 5-1/2 Inch
• Width: 4.000 in
