Siemens 3SU11500BB201FA0 Pushbutton 22 mm

Product Description

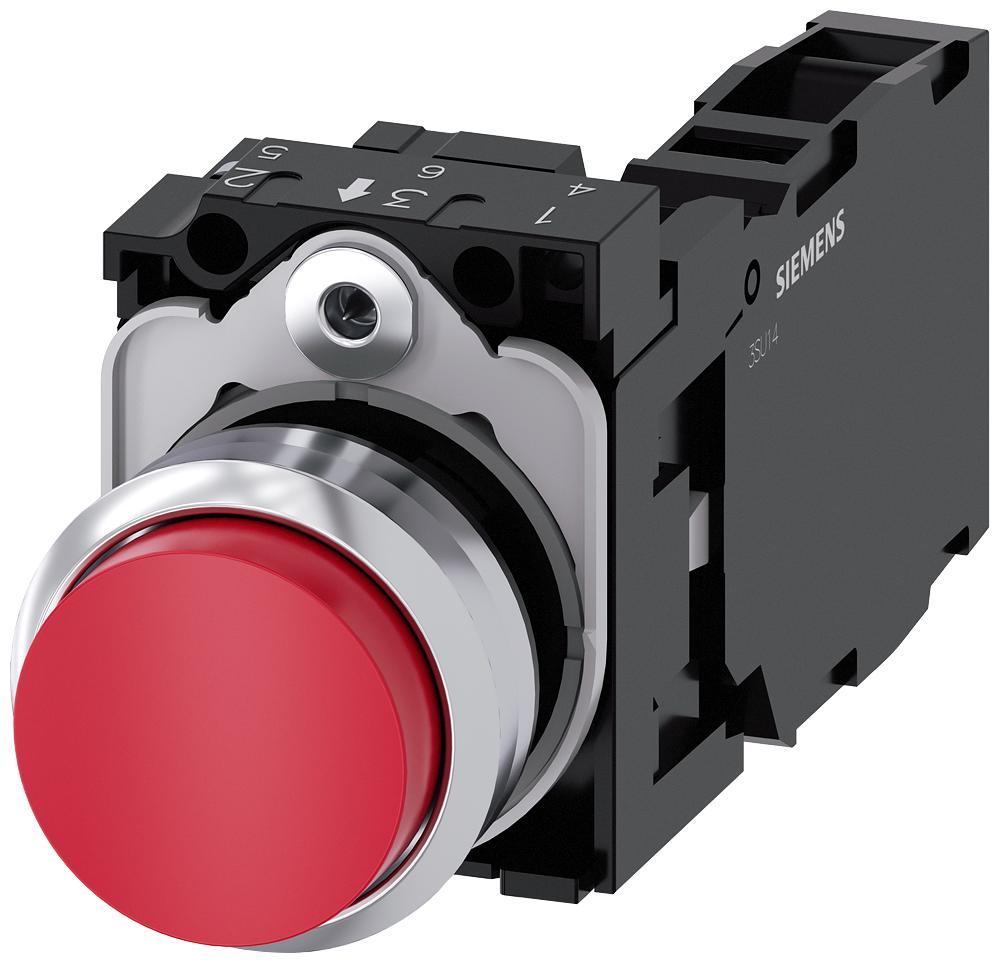

The SIEMENS 3SU11500BB201FA0 is a 22mm metal, shiny, red pushbutton with a raised button and momentary contact type. It features a holder, 1NO+1NC contact configuration, and screw terminals. Designed for front panel mounting, this standard pushbutton switch is suitable for various applications.

• Self-holding function of the actuator when mounting
• Twist prevention integrated into patented holder design
• Stackable contact modules

Product Highlights

This Siemens pushbutton unit offers reliable performance with easy, one-hand installation and stackable contact modules.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500BB201FA0

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500BB201FA0
• Size: 22 mm
• Contact Configuration: 1NC-1NO
• Contact Mode: Momentary
• Operator: Extended Button
• Bezel/Housing: Metal
• Terminal: Screw Terminal
• Enclosure: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K/IP20
• Mounting: Front Mounting
• Material: Plastic
• Finish: Shiny
• Operating Temperature: -25 to 70 deg C
• Storage Temperature: -40 to 80 deg C
• Category: Switches, Pushbutton Switches
• Series: 3SU1
• Packaging: Box
• Part Status: Active
• Type: Standard
• Switch Function: On-Mom, Off-Mom
• Current Rating (Amps): 10A (AC/DC)
• Voltage Rating - AC: 500 V
• Voltage Rating - DC: 500 V
• Actuator Type: Round, Button
• Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Panel Cutout Dimensions: Circular - 22.30mm Dia
• Mechanical Life: 10,000,000 Cycles
• Electrical Life: 10,000,000 Cycles
• Base Product Number: 3SU1150
