Siemens 3SU11500AB301BA0 Pushbutton 5to500volts 22mm

Product Description

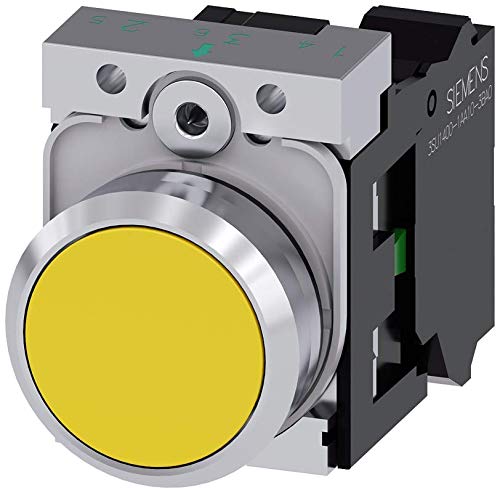

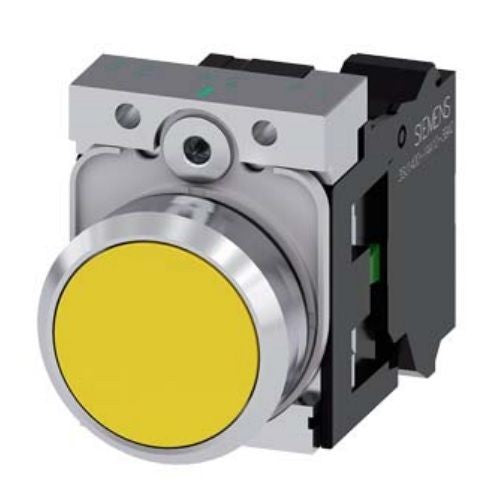

The SIEMENS 3SU11500AB301BA0 is a 22mm pushbutton designed for use with SIRIUS ACT pushbuttons and signaling devices. This metal and plastic pushbutton features a flush, yellow button and momentary contact type with holder, 1NO, and screw terminal. It has a voltage rating of 5to500volts and IP66, IP67, IP69K protection ratings.

• Modern product design using genuine metal and/or high-quality plastic
• Quick and easy installation; innovative snap-on concept can be done with one hand and without any special tools
• Full twist protection; can be mounted into groove-free holes (notching not required)

Product Highlights

The SIEMENS 3SU11500AB301BA0 pushbutton is extremely rugged and suitable for use in extreme environments. Complete unit; holder and module(s) included.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500AB301BA0

Technical Specifications

• Voltage: 5to500volts
• Protection Rating: IP66, IP67, IP69K
• Size: 22mm
• Material: Plastic & Metal
• Brand: Siemens
• Part Number #: 3SU11500AB301BA0
• SKU #: 2344088
• UNSPSC: 39122216
• UPC: 00804766071973
• Mounting Type: Front
• Operator Type: Flat Button
• Series: 3SU1
• Terminal Type: Screw
• Type: Round Standard
• Application: For standard industrial and operation in marine locations
• Standard & Approvals: CCC Certified, CSA Certified, UL Listed, EAC Certified, CE Certified, ABS Certified, Lloyd's Register, PRS Certified, RINA Certified, RMRS Certified, DNV-GL Approved, WEEE (2012/19/EU)
• Contact Configuration: 1NO
• Contact Mode: Momentary
• EANUCC13: 4011209958302
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Finish: Shiny
