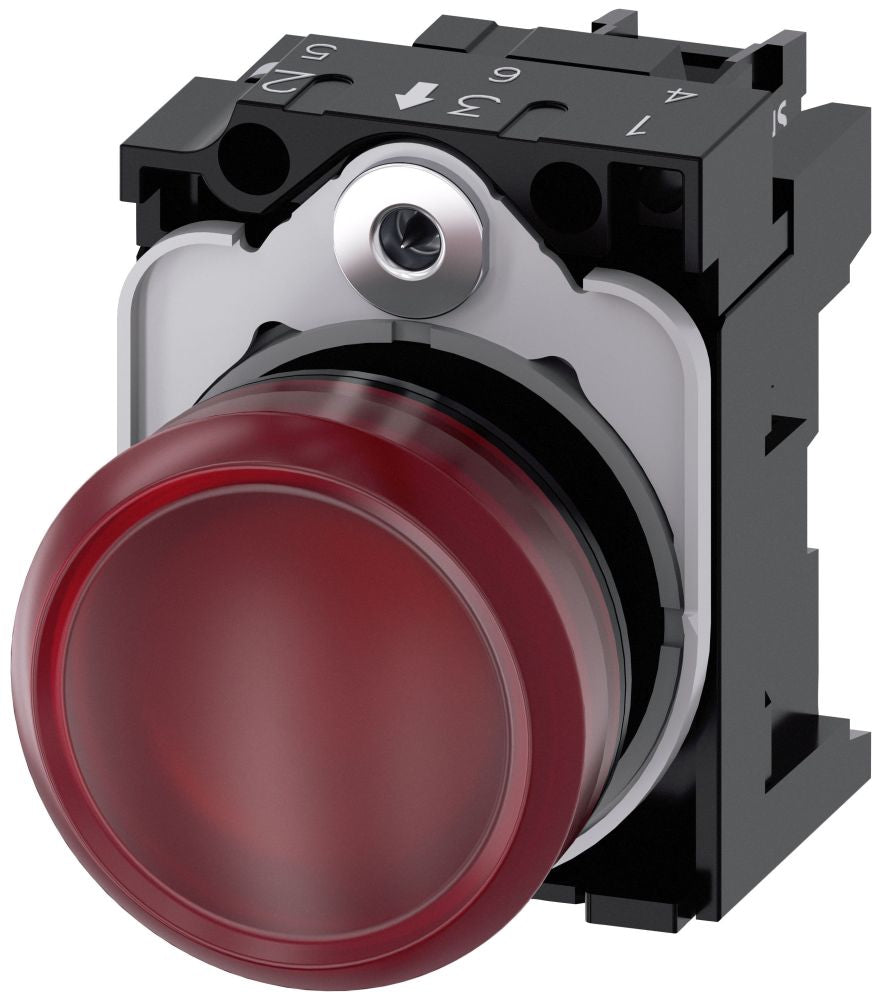

Siemens 3SU11036AA201AA0 Panel Indicator Light

Product Description

The SIEMENS 3SU11036AA201AA0 is a panel-mounted indicator light designed for use in industrial control panels and machine control circuits. This indicator provides a clear visual status signal for operators and technicians monitoring equipment states such as power-on, fault, or run conditions. Compact in footprint at 1.969 x 1.969 x 1.181 inches and weighing just 0.095 pounds, it is suited for dense panel builds where space is at a premium. Electricians and industrial controls technicians typically source this component for new panel construction or direct replacement of failed indicator units.

This indicator is intended for installation in industrial and commercial control panel applications. It fits into standard operator interface cutouts and is commonly used alongside pushbuttons, selector switches, and other 22 mm or similarly sized panel devices depending on the mounting configuration. It is packaged individually, making it straightforward to order as a single replacement unit for field service calls or panel repair work.

Key Features

• Compact form factor at 1.969 x 1.969 x 1.181 inches for space-constrained panel layouts
• Lightweight construction at 0.095 pounds, minimizing added load to panel door or face
• Single-unit packaging allows precise quantity ordering for replacement or new build
• Panel-mount design integrates with standard industrial control enclosure cutouts
• Provides clear visual status indication for machine or process monitoring

Compatibility

Designed as an OEM-style replacement or new-build component for industrial control panels requiring a panel-mount indicator light of this form factor.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with applicable NEC requirements and the panel or machine manufacturer guidelines. De-energize the control panel and follow proper lockout/tagout procedures before removing or installing any indicator or control device. Verify the indicator mounting hole size and bushing requirements match the panel cutout before installation. Do not apply power until all wiring connections are secured and the panel cover is properly closed.

Technical Specifications

• Dimensions (L x W x H): 1.969 x 1.969 x 1.181 inches
• Weight: 0.095 pounds
• Package Quantity: 1 per pack
• UPC: 80476607089

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11036AA201AA0
