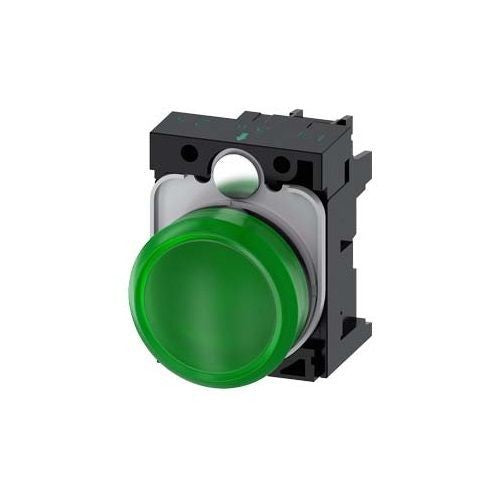

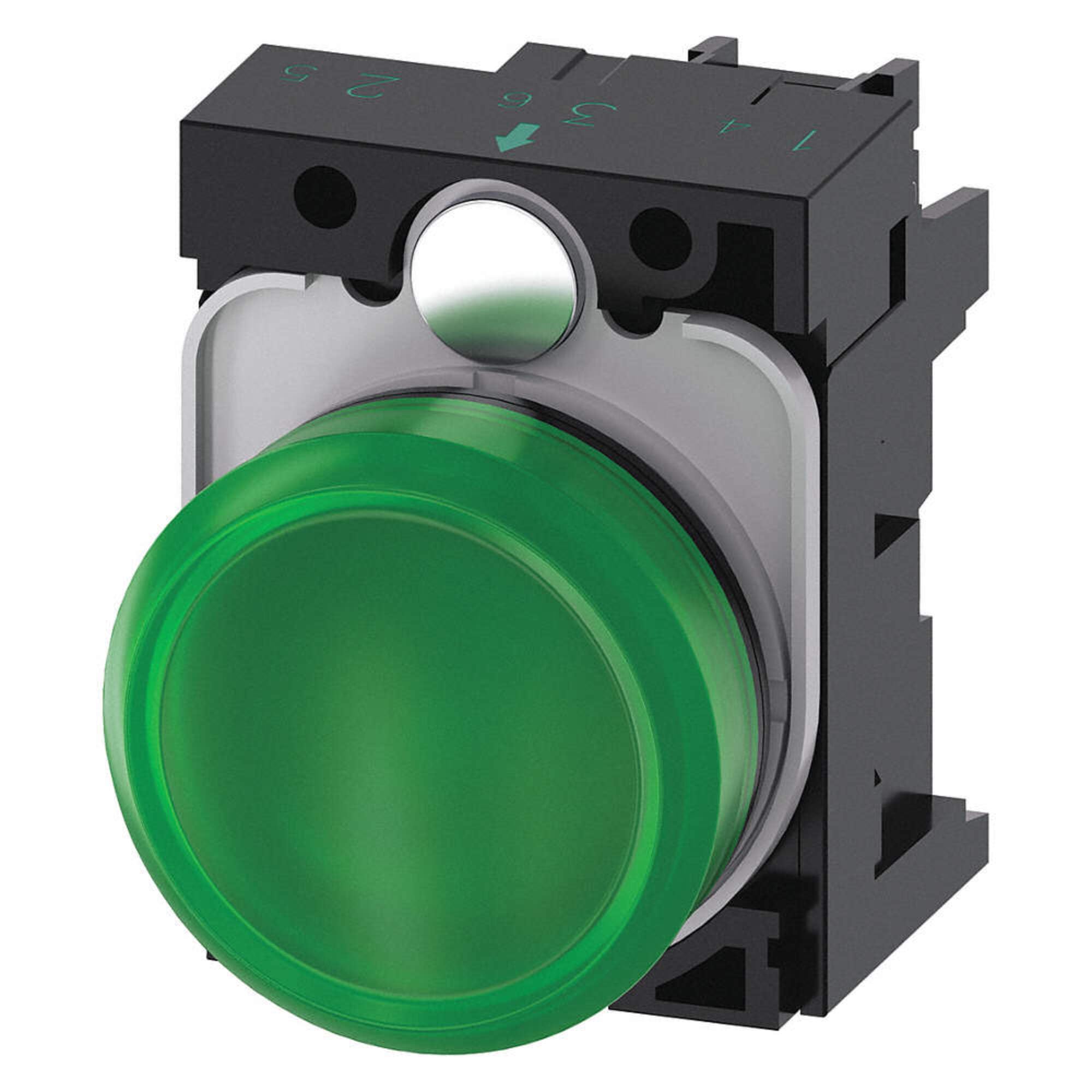

Siemens 3SU11026AA401AA0 Indicator Light Unit, 22mm, Plastic, LED 24V AC/DC, Screw Terminal

Product Description

The Siemens 3SU11026AA401AA0 is an indicator light unit with a 22mm round, plastic, green, smooth lens. It features a holder, LED module, and integrated LED operating at 24V AC/DC with a screw terminal. Suitable for use in extreme environments.

• Modern product design using genuine metal and/or high-quality plastic
• Quick and easy installation with innovative snap-on concept
• Extremely rugged with IP69K protection
• Complete unit; holder and module(s) included

Product Highlights

This Siemens indicator light offers easy installation, rugged construction, and a complete unit design for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11026AA401AA0

Technical Specifications

• Brand: SIEMENS
• Size: 22mm
• Product Type: ELECTRIC_LIGHT
• Model / MPN: 3SU1102-6AA40-1AA0
• UNSPSC Code: 39110000
• Manufacturer Part Number: 3SU11026AA401AA0
• Series: 3SU1 Series
• Supply Voltage: 24 VAC/VDC
• Lamp Type: LED
• Voltage Rating: 24 VAC/VDC
• Standard & Approvals: IEC 60947-1, EN 60947-1, IEC 60947-5-1, EN 60947-5-1, CCC Certified, CSA Certified, UL Listed, EAC Certified, CE Certified, ABS Certified, Lloyd's Register, PRS Certified, RINA Certified, RMRS Certified, DNV-GL Approved, WEEE (2012/19/EU)
• Bezel/Housing: Plastic
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
• Application: For use in extreme environments
• Type: Flat Illuminated Standard
• Mounting Type: Front Panel
• Lens Type: Smooth
• Lens Material: Plastic
• Environmental Conditions: -40 to 80 deg C Operating, -25 to 70 deg C Storage, 10 to 95% Relative Air Humidity
• Panel Cutout Shape: Round
• Panel Cutout Dimensions: 0.88" (22.30mm)
• Lens Size: 29.50mm Dia
• Lens Style: Round with Flat Top
• Millicandela Rating: 1350mcd
• Termination Style: Screw Terminal
• Ingress Protection: IP66, IP67, IP69K, NEMA 4X, 13
• Manufacturer: Siemens
• Ratings: AC/DC
