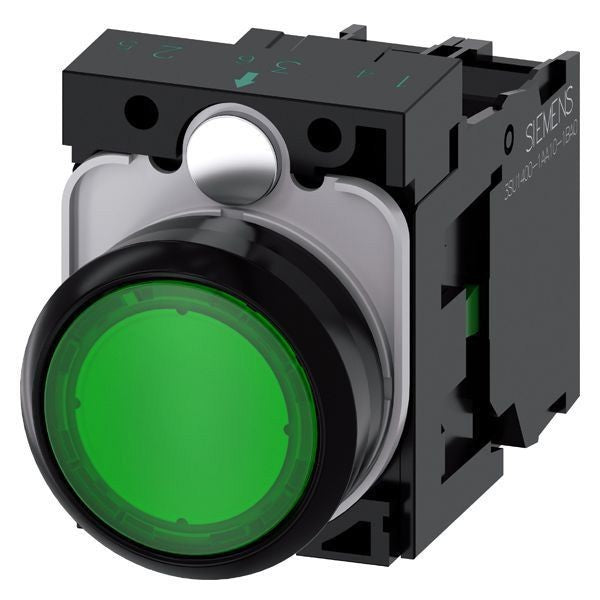

Siemens 3SU11020AB401BA0 Illuminated Pushbutton Momentary Green Flush 22 mm

Product Description

The SIEMENS 3SU11020AB401BA0 is a round, illuminated pushbutton with holder, designed for momentary contact. This 22 mm green pushbutton is part of the SIRIUS ACT series, known for its style and toughness. It requires contact block(s) and an illumination source. It is suitable for front plate mounting and rear-mounted electrical modules.

• Round illuminated pushbutton with holder
• 22 mm size for easy integration
• Momentary contact mode

Product Highlights

Part of the SIRIUS ACT series, this green illuminated pushbutton is ideal for various applications requiring momentary switching.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11020AB401BA0
• Country of Origin: United States

Technical Specifications

• Brand: SIEMENS
• Color: Green
• Manufacturer Part Number: 3SU11020AB401BA0
• Series: 3SU1
• UPC Code: 804766070570
• Overview: SIRIUS ACT
• Lamp Type: LED
• Material: Plastic
• Mounting Type: Surface
• Size: 22 mm
• Terminal Type: Screw
• Type: Round
• Standard & Approvals: CE Marked, CCC Certified, CSA Certified, EAC Certified, UL Listed
• Bezel/Housing: Black Plastic
• Contact Configuration: 1NO
• Contact Mode: Momentary
• Contact Rating: 10 A at 500 VAC/VDC, 50/60 Hz
• EANUCC13: 4011209957176
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature
• Model: 3SU11020AB401BA0
• Category: Switches, Configurable Switch Components, Configurable Switch Bodies
• Illumination: Illuminated
• Actuator Type: Pushbutton, Round
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s), Illumination Source
• Base Product Number: 3SU1102
• Country of Origin: Germany - Subject to change
• NEMA: 1, 2, 3, 3R, 4, 4X, 12
• Operating Cap: Round Flat
• Contacts: 1-NO
• Voltage: 24V AC/DC
• Enclosure Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, IEC IP20, IP66, IP67, IP69, IP69K
