Siemens 3SU11007AC101NA0 Switch Joystick Digital 10A 500V

Product Description

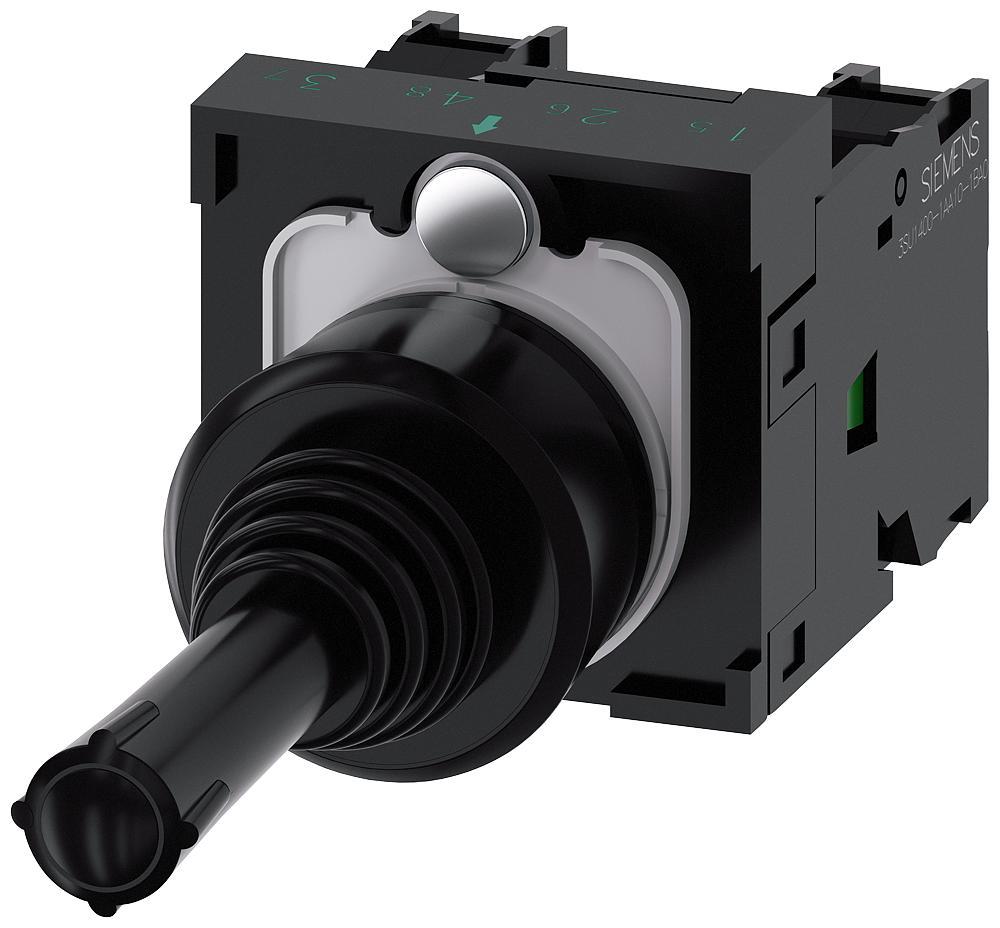

The SIEMENS 3SU11007AC101NA0 is a coordinate switch, also known as a joystick, with a digital (mechanical switch) output. This 22mm round, black plastic switch has 2 switch positions, horizontal momentary contact, and no mechanical interlock. It features screw terminals for termination.

• Direct connection of the enclosure to AS-interface or IO-link
• Stackable contact modules
• Operating temperature of -25 to 70 deg C

Product Highlights

This joystick switch is designed for panel mounting and offers IP65 and IP67 protection against dust and water.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11007AC101NA0
• Country of Origin: DE

Technical Specifications

• Category: Switches
• Navigation Switches, Joystick: Navigation Switches, Joystick
• Voltage Rating - DC: 500 V
• Manufacturer: Siemens
• Contact Material: Silver Alloy
• Mounting Type: Panel Mount
• Part Status: Active
• Termination Style: Screw Terminal
• Type: Joystick, 2 - Axis
• Operating Temperature: -25 C ~ 70 C
• Actuator Type: Joystick
• Ingress Protection: IP65, IP67 - Dust Tight, Water Resistant, Waterproof
• Switch Function: 360 Directional
• Mechanical Life: 500,000 Cycles
• Output: Digital (Mechanical Switch)
• Electrical Life: 10,000,000 Cycles
• Current Rating (Amps): 10A (DC)
• Base Product Number: 3SU1100
• Voltage Rating - AC: 500 V
• Alternate Mfr Part Number: 3SU1100-7AC10-1NA0
• Brand: SIEMENS
• Manufacturer Part Number: 3SU11007AC101NA0
• Bezel/Housing: Plastic
• Contact Configuration: 2NO
• Enclosure Type: IP20/IP65/IP67
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Number of Positions: 2
• Operating Cycles: 500000 Cycles
• Operator Type: Extended Handle
• Series: 3SU11
• Size: 22 mm
• Terminal Type: Screw
• Material: Plastic
• Mounting type: Front Panel
• Manufacturer Name: Siemens
• UNSPSC: 39122216
