Siemens 3SU11002BL601NA0 Selector Switch 22 mm (2 x 45 degrees) 3SU1100-2BL60-1NA0

Product Description

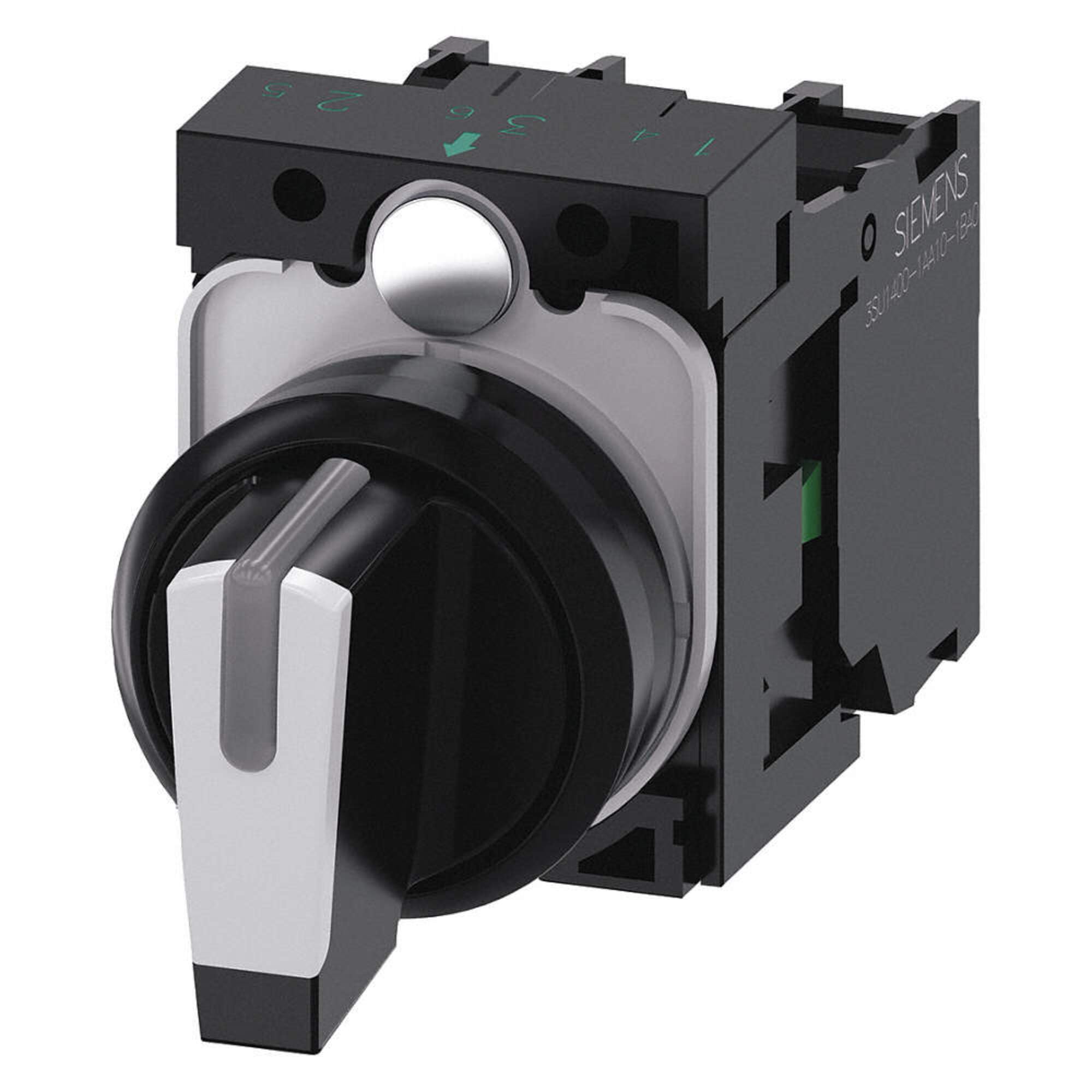

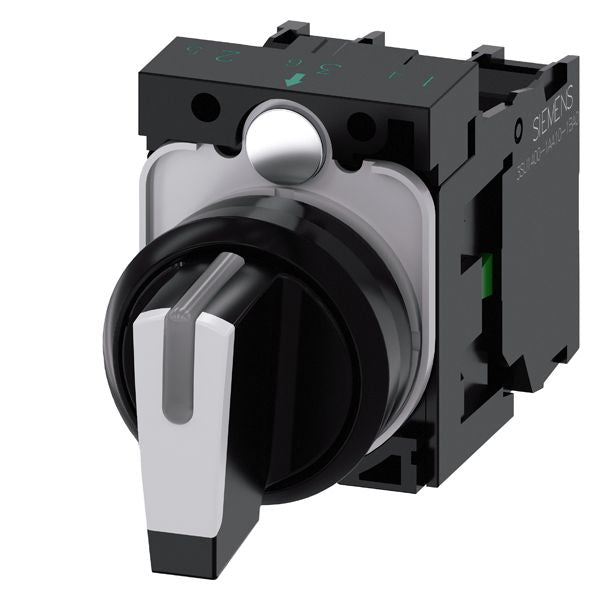

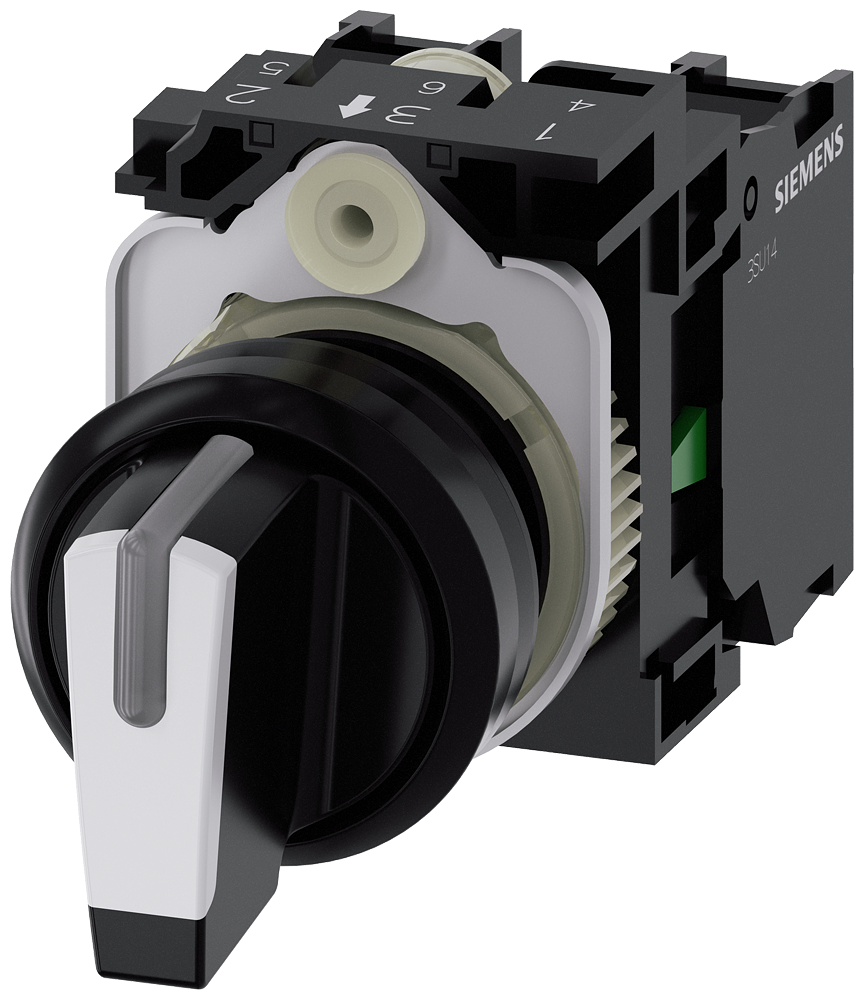

Siemens 3SU11002BL601NA0 is a 22 mm selector switch with three positions (I-O-II) and a latching mechanism. The unit is designed for panel mounting with a 22.3 mm hole and is supplied with a holder and screw terminal connections. It can be illuminated and provides a 1 NO contact configuration. The switch has a plastic construction and is intended for industrial control and automation panels.

• 22 mm round panel-mount selector switch with short selector actuator and latching operation (I-O-II)
• Screw terminal connections; supplied with holder; contact configuration: 1 NO
• Can be illuminated; plastic construction; panel cutout 22.3 mm; country of origin: Germany

Product Highlights

22 mm panel selector switch, latching 3-position, screw terminals, 1 NO contact

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11002BL601NA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3SU11002BL601NA0
• Series: 3SU1
• Product Type: Selector switch
• Mounting Type: Panel mount / Through hole mount
• Hole Diameter: 22.3 mm
• Size: 22 mm
• Actuator Type: Short selector actuator
• Number of Positions: 3 (I - O - II)
• Operation: Latching (maintained)
• Illumination: Can be illuminated
• Contact Configuration: 1 NO
• Contact Rating: 10 A at 500 VAC/VDC
• Current Rating: 10 A
• Voltage Rating AC: 500 V
• Voltage Rating DC: 500 V
• Termination: Screw terminal
• Included Components: Holder
• Material: Plastic
• Operating Temperature: -25 to 70 C
• Mechanical Life: 100,000 cycles
• Actuating Angle: 2 x 45 degrees
• Dimensions (H x L x W): 0.5 in x 2 in x 1.0 in
• Weight: 0.134 lb
• Country of Origin: Germany
• Certifications: CE, CSA, UL, CCC, EAC
• Mount / Panel Cutout Size: 22 mm circular
• Termination Style: Screw terminal
• Series/Model Note: 3SU1100 selector switch family (22 mm)
