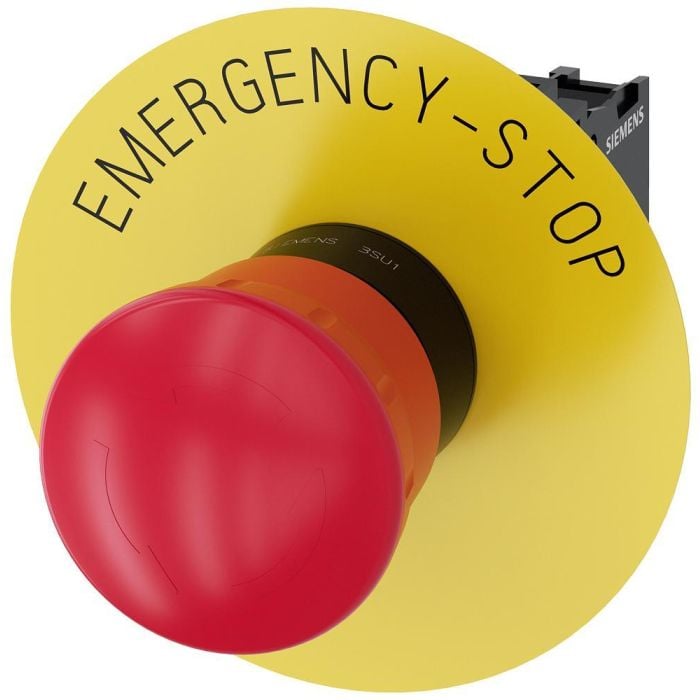

Siemens 3SU11001HB201CG0 Emergency Stop Twist-Release Red Mushroom 40Mm

Product Description

The SIEMENS 3SU11001HB201CG0 is an emergency stop switch with twist release and a red mushroom head. This SPST-NC switch is designed for panel mounting and front installation. It features a 40mm mushroom head operator and provides reliable safety in emergency situations. The switch is rated for 10A at 500V AC/DC.

• Emergency Stop Switch
• SPST-NC
• Panel Mount, Front

Product Highlights

Emergency stop switch with twist reset, ideal for ensuring workplace safety with its reliable and easy-to-use design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11001HB201CG0
• Country of Origin: DE

Technical Specifications

• Series: 3SU1
• Manufacturer: Siemens
• Part Status: Active
• Circuit: SPST-NC
• Switch Function: On-Off
• Current Rating (Amps): 10A (AC/DC)
• Voltage Rating - AC: 500 V
• Voltage Rating - DC: 500 V
• Mounting Type: Panel Mount, Front
• Panel Cutout Dimensions: Circular - 22.30mm Dia
• Termination Style: Screw Terminal
• Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Operating Temperature: -25 C ~ 70 C
• Reset Operation: Twist
• Base Product Number: 3SU1100
• Head Size: 40 mm
• Manufacturer Part Number: 3SU11001HB201CG0
• Size: 22 mm
• Bezel/Housing: Plastic
• Contact Configuration: 1NC
• Contact Mode: Maintained/Rotate-Unlatch
• Contact Rating: 10 A at 5 to 500 V AC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Legend: Emergency Stop
• Operator Type: 40 mm Mushroom Head
• Terminal Type: Screw
• Type: Emergency Stop
• Country of Manufacture: DE
