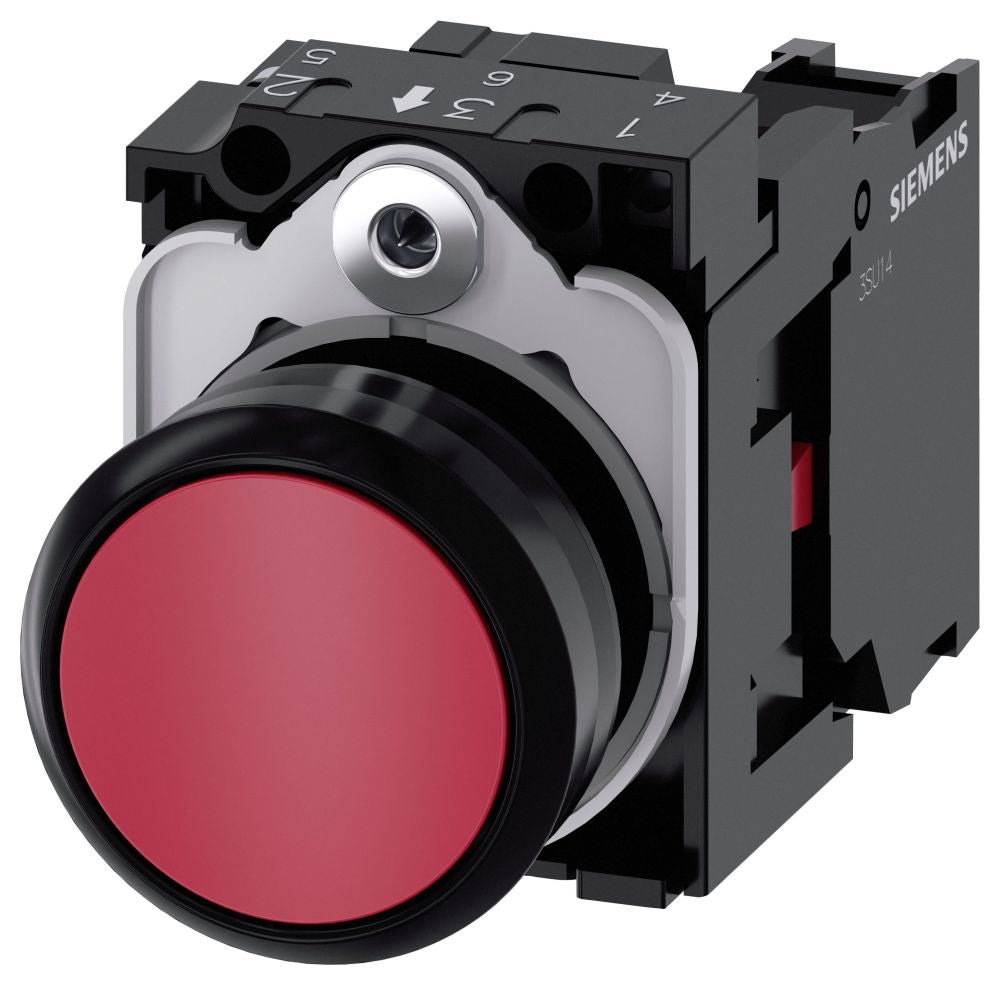

Siemens 3SU11000AB201CA0 Pushbutton

Product Description

The SIEMENS 3SU11000AB201CA0 is a pushbutton operator designed for industrial control panel and machinery applications. Pushbutton operators like this one serve as the front-facing actuator in a modular pushbutton assembly, translating a manual press into a control signal for motor starters, contactors, or relay-based circuits. This unit is a compact, panel-mount component intended for use by licensed electricians and industrial maintenance technicians. It is part of the SIEMENS SIRIUS ACT modular operator series, which allows the actuator head to be paired with contact blocks, holders, and legend plates to build a complete pushbutton station.

This pushbutton is suited for residential, commercial, and industrial control panel builds where a standardized operator is required. Typical install scenarios include machine tool control stations, conveyor line panels, motor control centers, and general-purpose start or stop stations. Its compact footprint makes it a practical choice for dense panel layouts where space between devices is limited.

Key Features

• Modular design allows pairing with compatible contact blocks, holders, and legend plates
• Compact form factor suited for high-density control panel layouts
• Panel-mount actuator provides direct manual operator input to control circuits
• Lightweight construction at approximately 0.11 pounds
• Standard pushbutton operator format for industrial control applications

Compatibility

Designed as a modular pushbutton operator for use in industrial control panels and machinery stations as part of a complete pushbutton assembly.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and any applicable local codes. De-energize and lock out the control panel before removing or installing any pushbutton components. Ensure the mounting cutout dimensions match the operator body before installation. Do not force the actuator into an incompatible holder or contact block, as this can damage the latching mechanism.

Technical Specifications

• Length: 4.13 inches
• Width: 1.65 inches
• Height: 1.57 inches
• Weight: 0.11 pounds
• Package Quantity: 1
• UPC: 80476607019

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11000AB201CA0
