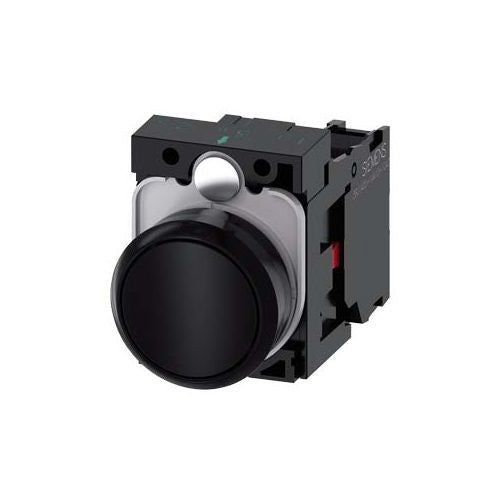

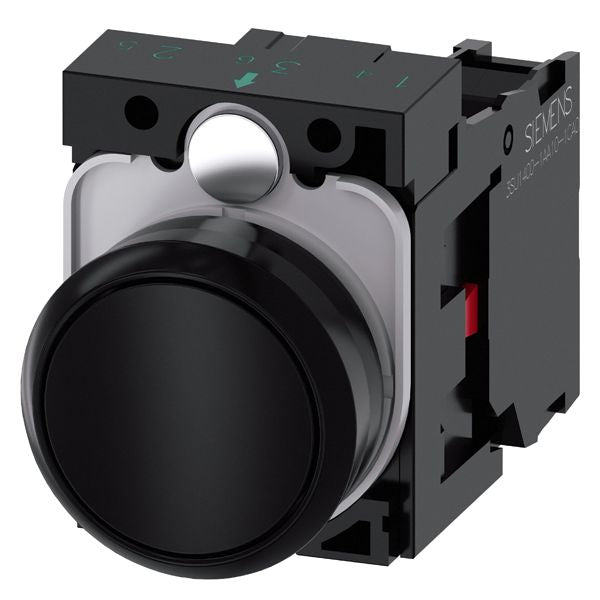

Siemens 3SU11000AB101CA0 SIRIUS ACT Round Standard Non-Illuminated Pushbutton With Holder, 22 mm, 1NC Contact, Flat Button Operator

Product Description

The SIEMENS 3SU11000AB101CA0 SIRIUS ACT is a modular system of pushbuttons and indicator lights designed for front plate mounting and rear-mounted electrical modules. It is a round standard non-illuminated pushbutton with a holder, featuring a 22 mm size and a 1NC contact with a flat button operator. Suitable for standard industrial and marine applications.

• Self-holding function of the actuator when mounting
• Twist prevention integrated into patented holder design
• Stackable contact modules

Product Highlights

The pushbutton features reliable, friction-locked fixing with just one screw and simple geometry for mounting holes.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11000AB101CA0
• Country of Origin: DE

Technical Specifications

• Material: Plastic
• Mounting Type: Front
• Operator Type: Flat Button
• Contact Configuration: 1NC
• Contact Mode: Momentary
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Series: 3SU1
• Size: 22 mm
• Terminal Type: Screw
• Type: Round Standard
• Application: For standard industrial and operation in marine locations
• Standard & Approvals: CCC Certified, CSA Certified, UL Listed, EAC Certified, CE Certified, ABS Certified, Lloyd's Register, PRS Certified, RINA Certified, RMRS Certified, DNV-GL Approved, WEEE (2012/19/EU)
• Alternate Catalog Number: 3SU1100-0AB10-1CA0
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 3SU11000AB101CA0
• Country of Origin: DE
• Operating Cap: Round Flat Button 29.45 mm
• Contacts: 1-NC
• Contact Rating: 10A/500VAC/DC
• Enclosure Rating: IP20, IP66, IP67, IP69, IP69K
