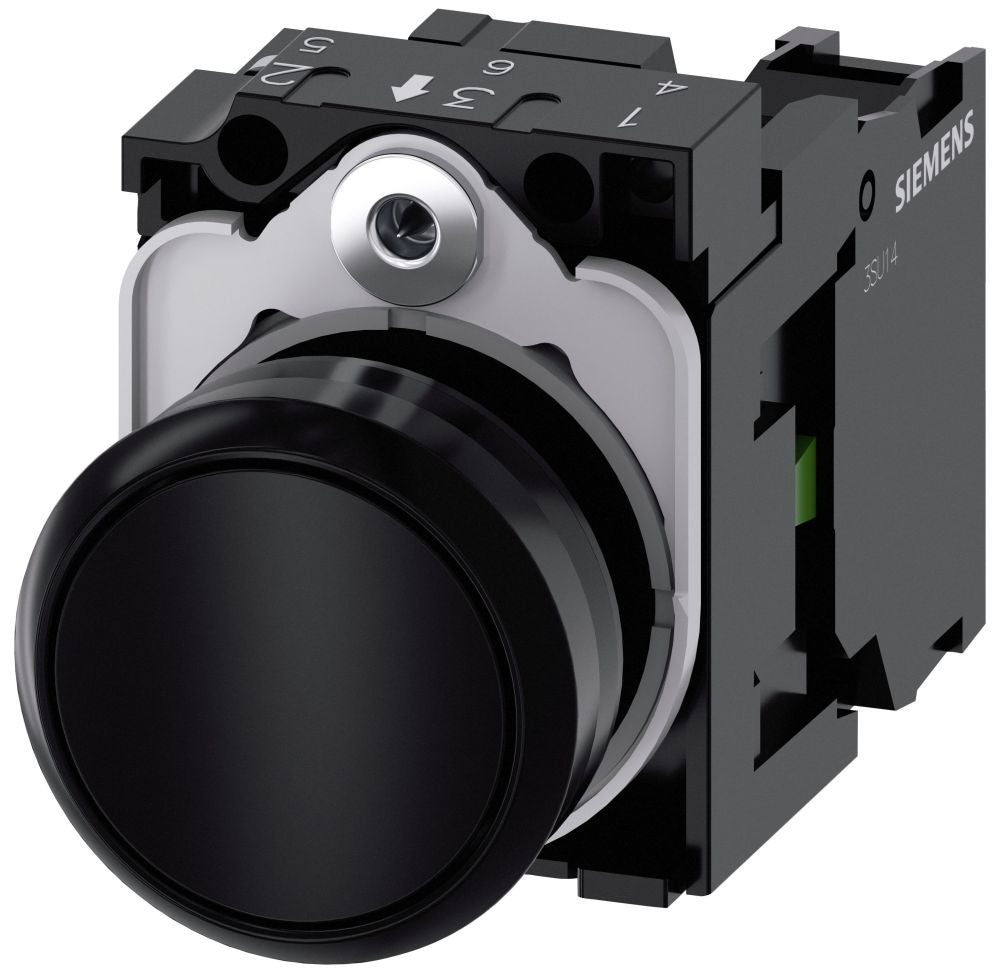

Siemens 3SU11000AB101BA0 Pushbutton Actuator

Product Description

The SIEMENS 3SU11000AB101BA0 is a pushbutton actuator designed for use in industrial control panel and machine operator interface applications. This component serves as the operator-facing actuation element in a modular pushbutton assembly, transmitting a mechanical input to the contact block mounted behind the panel. It is installed by electricians and industrial controls technicians during panel builds, machine retrofits, and control station upgrades. The unit weighs approximately 0.11 pounds and fits within a compact footprint suited to standard industrial enclosure cutouts.

This actuator is used in industrial and commercial electrical control applications where reliable operator input is required. Typical install scenarios include machine control panels, motor starter stations, and process control enclosures. It is part of the SIEMENS 3SU1 modular pushbutton system, which allows the actuator head to be paired with separate contact blocks, legend holders, and illumination modules to build a complete operator interface device.

Key Features

• Modular design allows pairing with compatible contact blocks and illumination modules
• Compact form factor suited to standard industrial panel cutout sizes
• Lightweight construction at approximately 0.11 pounds
• Part of the SIEMENS 3SU1 series modular operator interface platform

Compatibility

Designed as a modular actuator head for use within the SIEMENS 3SU1 series pushbutton system. Specific compatible contact blocks, modules, and accessories should be verified against SIEMENS 3SU1 series documentation before ordering.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the panel or machine manufacturer guidelines. De-energize and lock out the control circuit before removing or installing any operator interface component. Ensure the panel cutout diameter matches the actuator series specification before mounting. Do not overtighten the mounting nut, as this may crack the actuator body or distort the panel surface.

Technical Specifications

• Weight: 0.11 pounds
• Length: 3.94 inches
• Width: 1.97 inches
• Height: 1.18 inches
• UPC: 80476607014
• Pack Quantity: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11000AB101BA0
