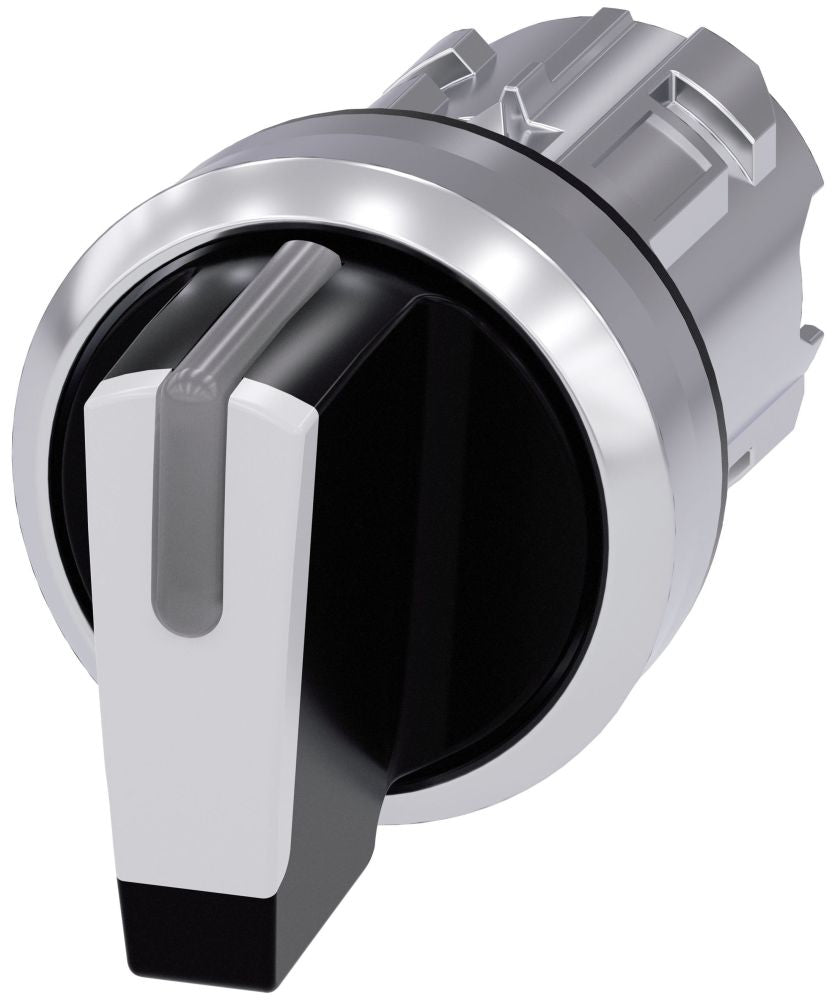

Siemens 3SU10522BM600AA0 3-position Selector Switch

Product Description

The SIEMENS 3SU10522BM600AA0 is a 3-position selector switch designed for industrial control panel applications. Selector switches of this type allow operators to choose between multiple operating modes or circuit states by rotating the actuator to a defined position. This unit ships as a single piece per pack and weighs 0.108 pounds, making it suitable for standard 22 mm panel cutout installations common in machine control and process equipment. Electricians and industrial control technicians are the primary trade professionals who specify and install this component in motor control centers, automation panels, and operator interface stations.

This selector switch is well suited for use in industrial and commercial control panel builds where reliable, repeatable position switching is required. Typical applications include machine start/stop/jog selection, mode changeover circuits, and manual/off/auto control sequences. Its compact package dimensions of 5.630 inches by 4.055 inches by 1.575 inches accommodate standard panel layouts without requiring additional cutout modifications.

Key Features

• 3-position rotary selector action for multi-mode circuit control
• Compact and lightweight at 0.108 pounds for easy panel integration
• Packaged individually, one unit per pack
• Part of the SIEMENS 3SU1 modular pushbutton and selector switch platform

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for industrial control panels using 22 mm operator device cutouts compatible with the SIEMENS 3SU1 series platform.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and the panel manufacturer guidelines. De-energize and lock out the control panel before beginning any wiring or mounting work. Verify that the panel cutout diameter matches the actuator body before securing the selector switch in place. Confirm contact block orientation and circuit continuity with a meter before restoring power.

Technical Specifications

• Number of Positions: 3
• Package Dimensions (L x W x H): 5.630 inches x 4.055 inches x 1.575 inches
• Weight: 0.108 pounds
• Quantity per Pack: 1
• UPC: 80476606935

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10522BM600AA0
