Siemens 3SU10510AB700AA0 Illuminated Pushbutton Momentary Flush 22 mm

Product Description

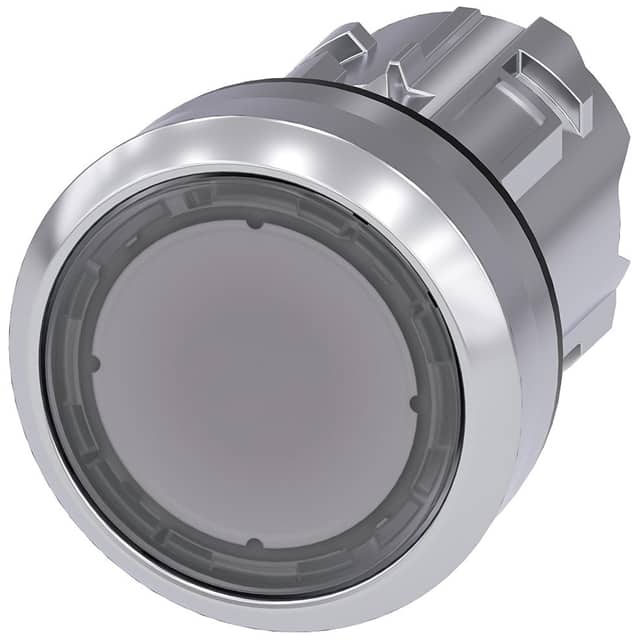

Siemens 3SU10510AB700AA0 is an illuminated round flush pushbutton actuator for 22 mm panel mounting in the 3SU1 series. It provides momentary (spring-return) contact operation with a metal, shiny actuator and a clear flat button lens; it is designed as a modular actuator requiring separate contact blocks and an illumination source. Typical use cases include industrial control panels, operator interfaces, and machine control.

• 22 mm round flush mounting; momentary (spring-return) operation for operator control
• Metal shiny actuator with clear flat lens; illuminated design (illumination source required)
• Modular SIRIUS ACT compatibility; high ingress protection (IP66, IP67, IP69K) and -25 C to +70 C operating range

Product Highlights

22 mm illuminated momentary pushbutton actuator, flush panel mount, modular 3SU1 system.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10510AB700AA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3SU10510AB700AA0
• Series: 3SU1
• Product Type: Illuminated pushbutton actuator
• Operation: Momentary (spring return)
• Mounting Type: Flush panel mount
• Panel Cutout / Mounting Hole Size: 22 mm
• Diameter: 22 mm
• Dimensions (Ø x H): 22 mm x 29.5 mm
• Height: 29.5 mm
• IP Rating: IP66, IP67, IP69K
• Operating Temperature: -25 C to +70 C
• Durability (operations): 3,000,000 operations
• Actuator Material: Metal, shiny
• Front Ring Material: Steel
• Illumination: Illuminated (illumination source required)
• Requires: Separate contact block(s) and illumination source
• For Use With: 22 mm pushbutton switches (3SU1 series)
• RoHS Compliant: Yes
• Weight: 37 g
• Country of Origin: China
• UPC Code: 804766068584
