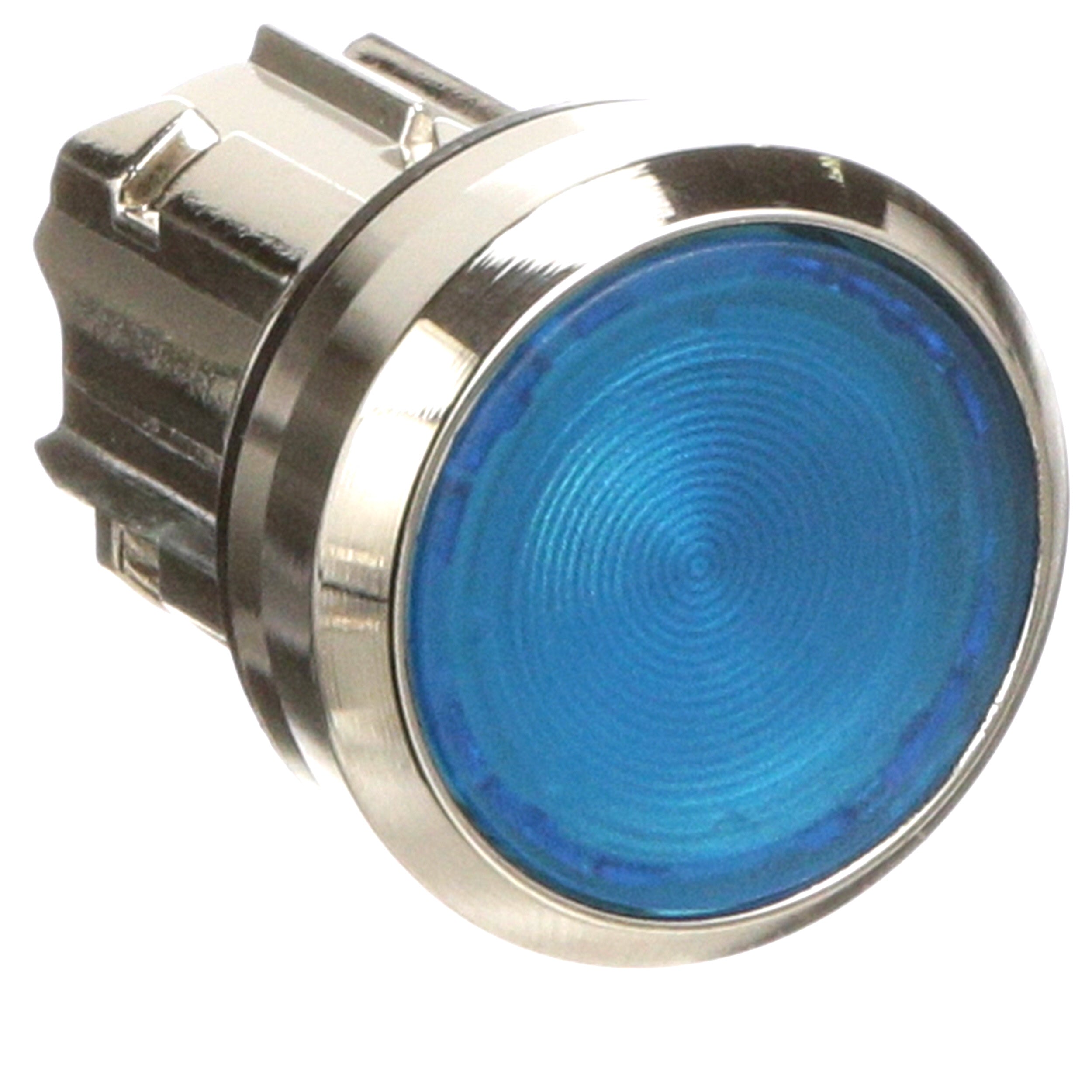

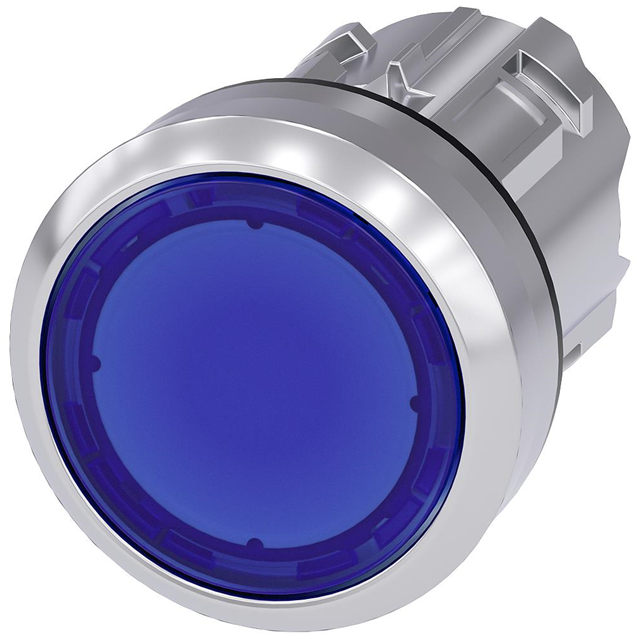

Siemens 3SU10510AB500AA0 Illuminated Pushbutton 22 mm

Product Description

Siemens 3SU10510AB500AA0 is an illuminated 22 mm round pushbutton operator designed for panel mounting in SIRIUS ACT control applications. The flat, momentary metal actuator provides a high degree of protection for harsh environments and supports snap-on installation with integrated twist prevention. The device is sold as an operator only and requires separate contact blocks, holders, and an illumination source; connectivity options include PROFINET, AS-Interface, and IO-Link.

• 22 mm round illuminated pushbutton, flat metal actuator, momentary contact (SIRIUS ACT)
• Snap-on flush mounting with integrated twist prevention; suitable for groove-free holes
• High ingress protection (IP66/IP67/IP69/IP69K, NEMA ratings) and operating range -25 to 70 deg C

Product Highlights

22 mm illuminated metal pushbutton operator; snap-on flush mounting; IP66/IP67/IP69/IP69K protection; requires separate contact and illumination modules

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10510AB500AA0
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3SU10510AB500AA0
• Alternate Part Number: 3SU1051-0AB50-0AA0
• Product Type: Illuminated pushbutton (operator only)
• Series: SIRIUS ACT (3SU1)
• Size: 22 mm
• Panel Cutout: 22.3 mm (round) / 0.877 in (diameter)
• Shape: Round
• Operator: Flat
• Contact Mode: Momentary
• Actuator Type: Pushbutton
• Material: Metal (shiny front); plastic components
• Bezel Material: Nickel plated brass and zinc die cast
• Mounting Type: Flush panel mount, snap-on installation
• Mounting Features: Integrated twist prevention; suitable for groove-free holes; friction-locked fixing
• Illumination: Illuminated (illumination source sold separately)
• Requires: Contact block(s), holder/module, and illumination source sold separately
• Enclosure Rating: IP66/IP67/IP69/IP69K; NEMA 1/2/3/3R/4/4X/12/13
• Operating Temperature: -25 to 70 deg C
• Storage Temperature: -40 to 80 deg C
• Relative Humidity: 10 to 95%
• Certifications: UL, CSA, CE, EAC
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• Weight (spec): 0.075 lb
• Hole Diameter: 0.877 in
