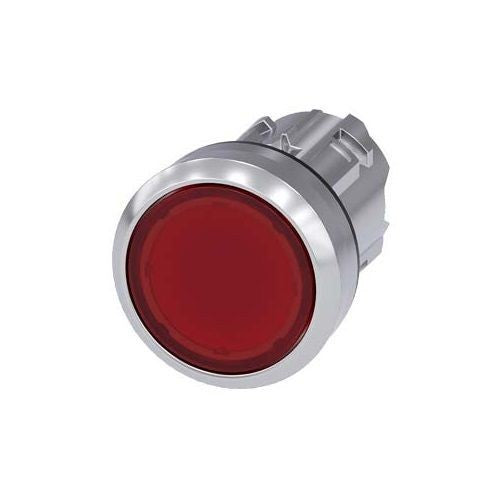

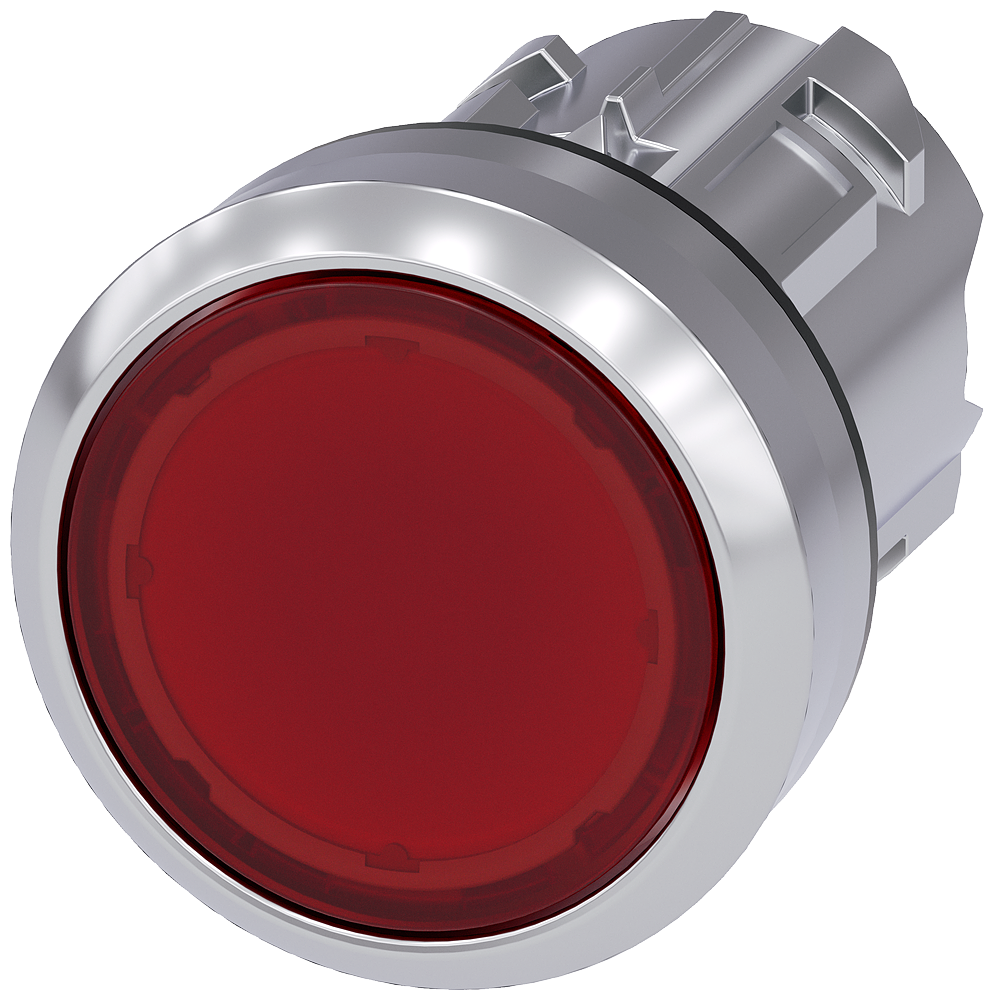

Siemens 3SU10510AB200AA0 Illuminated Pushbutton, Momentary, Red, Flush

Product Description

The SIEMENS 3SU10510AB200AA0 is an illuminated pushbutton from the SIRIUS ACT line. This momentary switch features a metal actuator and is designed for a 22 mm mounting hole. It is commonly used for switching and controlling electrical loads in various applications. The red, flush button provides a clear visual indication.

• Illuminated
• Metal actuator material
• Momentary operation

Product Highlights

The SIEMENS SIRIUS ACT pushbutton combines style, intelligence, and physical toughness for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10510AB200AA0
• Country of Origin: CN

Technical Specifications

• UNSPSC Code: 39120000
• Actuator Material: Metal
• Brand: SIEMENS
• Color: Red
• Manufacturer Part Number: 3SU10510AB200AA0
• Mounting Hole Size: 22 mm
• Operation: Momentary
• Primary Type: Pushbutton
• Series: 3SU1 Series
• Special Features: Illuminated
• UPC Code: 804766068539
• Application: For use in extreme environments
• Category: Switches
• Configurable Switch Components: Configurable Switch Bodies
• Type: Momentary
• Illumination: Illuminated
• Actuator Type: Pushbutton, Round
• Packaging: Bulk
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s), Illumination Source
• Base Product Number: 3SU1051
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.50.9031
• REACH Status: REACH Unaffected
• Condition: New
• Country of Origin: CN
• Size: 22 mm
• Model: 3SU1051-0AB20-0AA0
• Base Material: Metal
• Enclosure Rating: NEMA 1/2/3/3R/4/4X/12/IP66/IP67/IP69/IP69K
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/IP66/IP67/IP69/IP69K
• Lens Type: Round
• Mounting Type: Flush
• Operating Cycles: 3600
• Temperature Rating: -25 to 70 degrees C
• Sub Brand: Sirius Act
• 12-Digit UPC: 804766068539
• Product UPC: 80476606853
• Material: Metal
• Standard & Approvals: CE Certified, CSA Certified, EAC Certified, UL Listed
• Actuator: Round Flush
• Contact Mode: Momentary
• Environmental Conditions: -25 to 70 deg C
• EANUCC13: 4011209965683
• Button Color: Red
