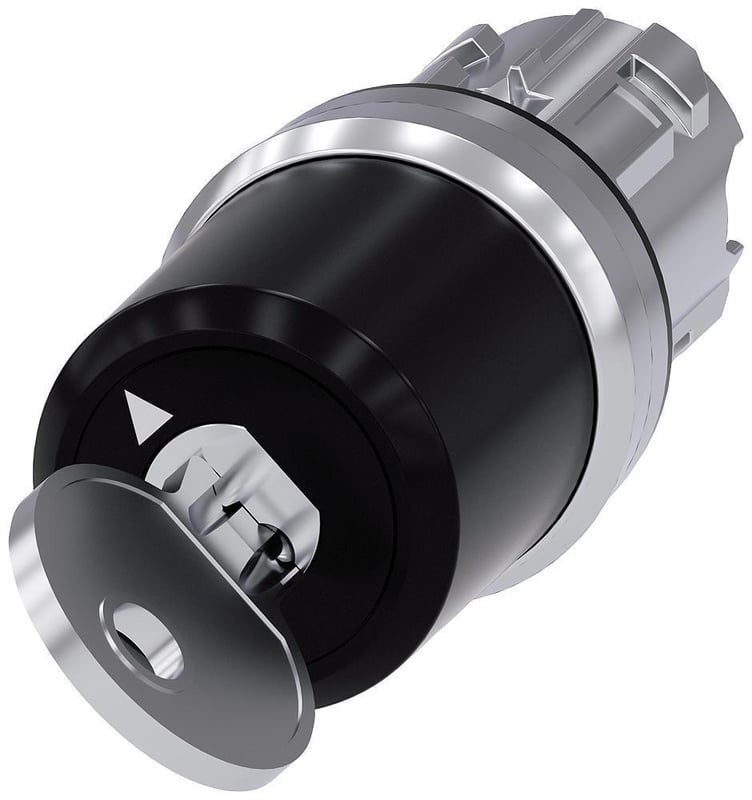

Siemens 3SU10505BF010AA0 Key-Operated Switch (22 mm/90 deg) 3SU1050-5BF01-0AA0

Product Description

Siemens 3SU10505BF010AA0 is a key-operated SIRIUS ACT switch operator with a 22 mm round metal actuator and a 90 deg actuating angle. The non-illuminated, latching operator provides two switch positions (O-I), includes two SSG10 keys with key removal in position O, and is rated for harsh environments (IP66/IP67/IP69K). The actuator is supplied without contact modules or holder and requires stackable contact blocks for wiring.

• 22 mm round metal actuator, latching operation, 2 positions (O-I), 90 deg actuation; lock No. SSG10 and 2 keys included
• Protection ratings IP66/IP67/IP69K; operating temperature -25 to 70 deg C; suitable for panel mounting
• Actuator only: requires contact block(s) and holder; snap-on installation, twist prevention, compatible with SIRIUS 3SU1 series

Product Highlights

22 mm key-operated latching switch, 2 positions, 90 deg throw; includes 2 SSG10 keys; IP66/IP67/IP69K; actuator only, contact modules/holder sold separately.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10505BF010AA0

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens Industry
• Manufacturer Part Number: 3SU10505BF010AA0
• Alternate MPN: 3SU1050-5BF01-0AA0
• Series: 3SU1 / 3SU10
• Product Type: Key-operated switch (SIRIUS ACT)
• Actuator Type: Keylock (keyed operator)
• Size: 22 mm
• Panel Cutout: 22 mm round
• Actuator Material: Metal (shiny)
• Bezel Material: Metal
• Finish: High gloss / shiny
• Number of Positions: 2
• Contact Mode: Latching
• Actuating Angle: 90 deg
• Key/Lock Number: SSG10
• Keys Included: 2
• Key Removal Position: O (off)
• Protection Rating: IP66 / IP67 / IP69K
• Operating Temperature: -25 to 70 deg C
• Storage Temperature: -40 to 80 deg C
• Relative Humidity: 10 to 95% RH
• Mounting Hole Size: 22 mm
• Requires: Contact block(s) and holder (sold separately)
• Mounting Type: Panel mount, snap-on concept
• Illumination: Non-illuminated
• Throw: 90 deg (10:30H / 13:30H)
• RoHS Status: RoHS3 Compliant
• Certifications: UL Listed; CSA Certified; CE Certified; EAC Approved; ABS Approved; Lloyds Registered; PRS Certified; RINA Certified; RMRS Approved; DNV-GL Approved
• UNSPSC: 39122224
