Siemens 3SU10501BD200AA0 Mushroom Pushbutton Actuator 40 mm (22 mm Panel Cutout)

Product Description

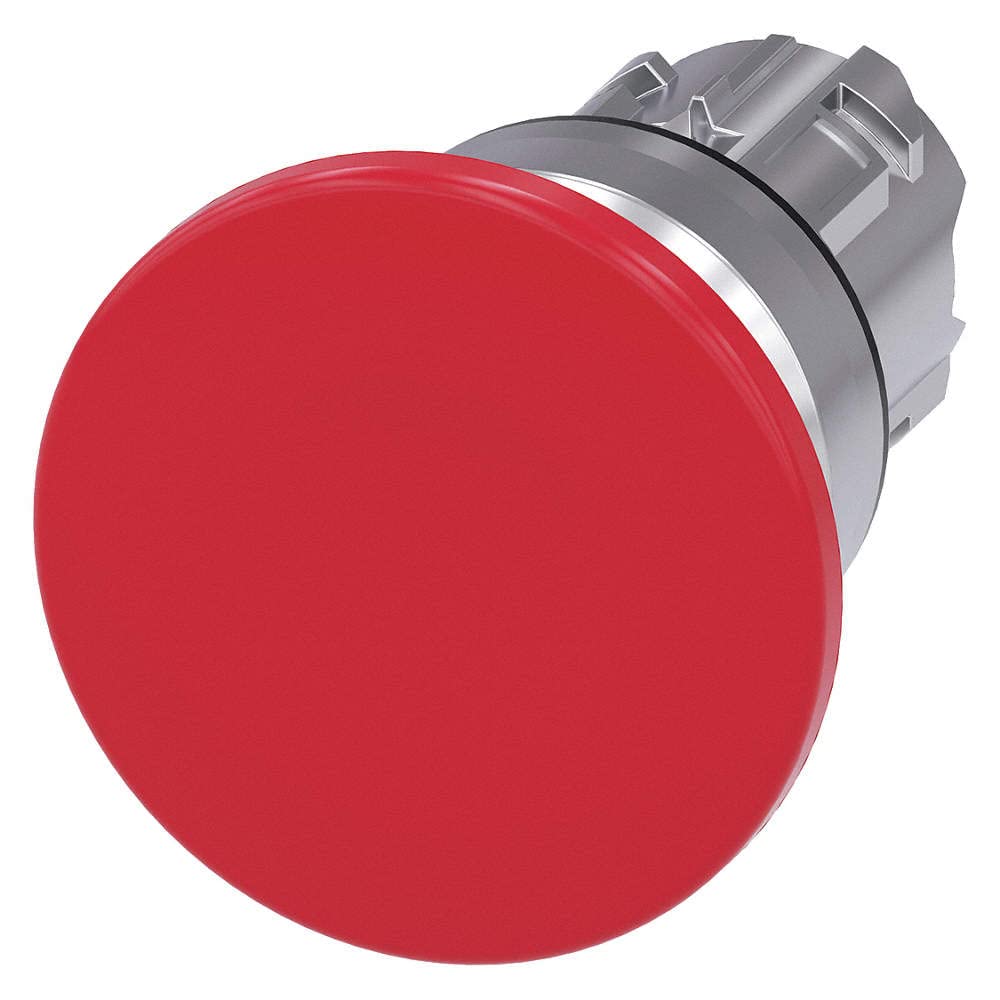

Siemens 3SU10501BD200AA0 is a SIRIUS ACT mushroom pushbutton actuator designed for 22 mm panel cutouts with a 40 mm actuator cap. It is a non-illuminated, momentary (MOM) operator constructed of plastic and metal with a shiny finish and rated for IP66, IP67 and IP69K protection. The actuator is part of the 3SU1 series and requires compatible contact/holder modules for electrical connections.

• Mushroom-type momentary operator for 22 mm panel mounting with a 40 mm cap.
• Plastic and metal construction with shiny finish; non-illuminated design and twist-prevention mounting.
• Rated for harsh environments (IP66, IP67, IP69K); operating temperature -25 to 70 °C and storage -40 to 80 °C.

Product Highlights

22 mm panel-mount mushroom actuator, 40 mm cap, momentary non-illuminated, IP66/IP67/IP69K rated; requires contact blocks or holders.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10501BD200AA0
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3SU10501BD200AA0
• Alternate Part Number: 3SU1050-1BD20-0AA0
• Series: 3SU1 (SIRIUS ACT)
• Product Type: Mushroom pushbutton actuator / switch actuator
• Actuator Diameter: 40 mm
• Panel Cutout: 22 mm (round)
• Operator Type: Mushroom
• Contact Mode: Momentary (MOM)
• Positions: 2 positions
• Material: Plastic and metal (shiny actuator)
• Finish: Shiny
• Illumination: Non-illuminated
• Mounting Type: Front plate / panel mount
• Protection Rating: IP66, IP67, IP69K
• Enclosure Ratings (additional): NEMA 1/2/3/3R/4/4X/12/13
• Environmental - Operating Temperature: -25 to 70 °C
• Environmental - Storage Temperature: -40 to 80 °C
• Relative Humidity: 10 to 95%
• Requires: Contact block(s) and holder modules sold separately
• RoHS Status: ROHS3 compliant
• Standards / Certifications: CSA certified; UL listed; EAC approved; CE certified
• Country of Origin: China
• UNSPSC: 39122216
• Base Product Number: 3SU1050
