Siemens 3SU10501AD200AA0 Pushbutton, Momentary, 30mm Mushroom Head

Product Description

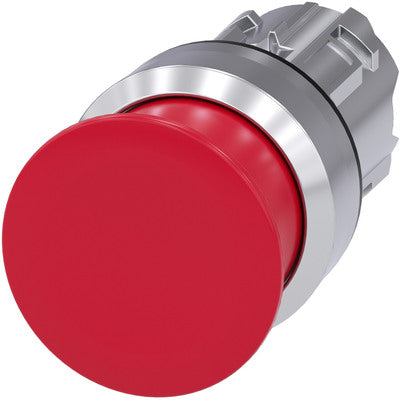

The SIEMENS 3SU10501AD200AA0 is a momentary pushbutton with a red, 30mm mushroom head. This SIRIUS ACT pushbutton is designed for front plate mounting and rear-mounted electrical modules. It is suitable for use in extreme environments and marine applications.

• Momentary contact mode
• Metal bezel/housing
• IP66/IP67/IP69/IP69K enclosure

Product Highlights

This Siemens SIRIUS ACT pushbutton features a round, metal, shiny, red, 30mm mushroom head and is designed for momentary contact.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10501AD200AA0

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Color: Red btn.
• Manufacturer Part Number: 3SU10501AD200AA0
• Mounting Hole Size: 22 in
• Operation: Momentary
• Primary Type: Pushbutton
• Series: 3SU1
• Unit of Measure: EA
• UPC Code: 804766067129
• Overview: SIRIUS ACT
• Category: Switches
• Configurable Switch Components: Configurable Switch Bodies
• Type: Round
• Manufacturer: Siemens
• Illumination: Non-Illuminated
• Actuator Type: Pushbutton, Mushroom
• Packaging: Box
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s)
• Base Product Number: 3SU1050
• SKU #: 2350858
• UNSPSC: 39122216
• Size: 22
• Temperature Rating: -25 to 70
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Operator Type: Flat Button/Mushroom Head
• Application: For use in extreme environments, standard industrial and operation in marine applications
• Material: Metal front ring bezel Metal body
• Finish: Shiny
• Diameter: 30mm mushroom head 22mm installation
• Mounting mode: Flush
• Operating mode: Spring-return (impulse/momentary) reset
• Degree of protection: IP66 IP67 IP69K
• Ambient air temperature for operation: -25...+70 °C
• Ambient air temperature for storage: -40...+80 °C
• Mechanical durability (at no load): 10 000 000 operations
• Order code / Manufacturer SKU: 3SU10501AD200AA0
• Manufacturer product status: Commercialized
• Equivalent to: 3SU10501AD200AA0
• Compliant with standard(s): IEC60947-1 EN60947-1 IEC60947-5-1 EN60947-5-1 IEC60947-5-5 EN60947-5-5
