Siemens 3SU10500AB400AA0 Pushbutton

Product Description

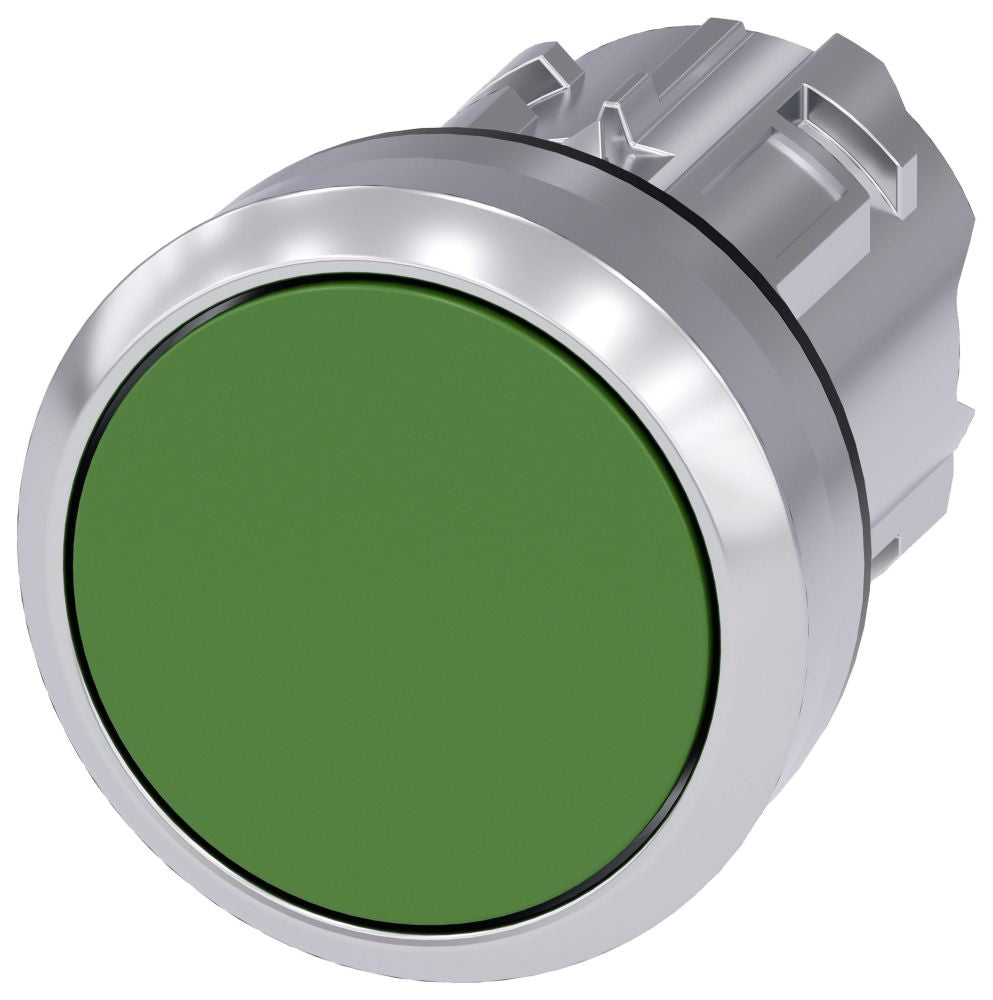

The SIEMENS 3SU10500AB400AA0 is a pushbutton operator designed for use in industrial control panel and machine control applications. It functions as the operator-interface component that initiates or interrupts a control circuit when pressed. Pushbutton operators like this one are installed in enclosure-mounted control stations, motor control centers, and panel-mount assemblies. Licensed electricians and industrial maintenance technicians are the primary installers. This unit weighs approximately 0.082 pounds and carries package dimensions of 5.906 inches long by 3.937 inches wide by 0.079 inches tall.

This pushbutton is suited for industrial control applications where a panel-mount momentary or maintained operator is required. It is typically used in manufacturing, process control, and machinery applications where reliable operator input to a low-voltage control circuit is needed. The component mounts to a control panel cutout and pairs with compatible contact blocks or modules in the same product series to form a complete switching assembly.

Key Features

• Compact operator form factor suited for standard panel-mount installation
• Lightweight construction at approximately 0.082 pounds
• Designed to pair with compatible contact block modules for complete switching assemblies
• Package dimensions of 5.906 inches x 3.937 inches x 0.079 inches for straightforward handling and storage

Compatibility

Designed as an OEM-style replacement or new-installation pushbutton operator for industrial control panel assemblies requiring a panel-mount operator of this type.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before beginning installation or removal. The pushbutton operator typically snaps or threads into the panel cutout and requires attachment of a contact block module to complete the circuit. Do not apply control voltage until all connections are fully secured and the enclosure is closed.

Technical Specifications

• Package Weight: 0.082 pounds
• Package Length: 5.906 inches
• Package Width: 3.937 inches
• Package Height: 0.079 inches
• UPC: 80476606687
• Quantity per Pack: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10500AB400AA0
