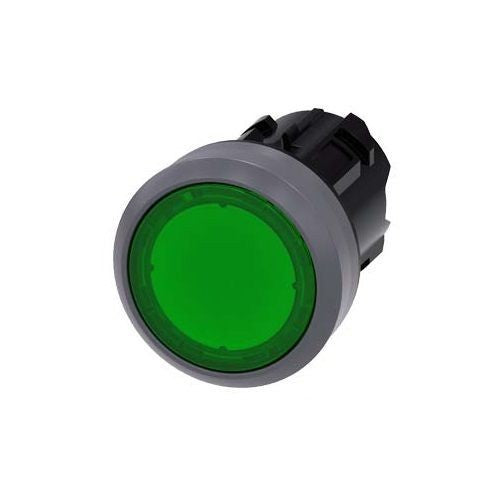

Siemens 3SU10310AB400AA0 Illuminated Pushbutton Momentary Green Flush 3SU1 Series

Product Description

The Siemens 3SU10310AB400AA0 illuminated pushbutton is part of the SIRIUS ACT series. These pushbuttons, indicator lights, and switches offer a unique portfolio of elegantly designed, intelligent, and physically tough devices. It is designed for front plate mounting and rear-mounted electrical modules.

• Self-holding function of the actuator when mounting
• Twist prevention integrated into patented holder design
• Stackable contact modules

Product Highlights

The Siemens SIRIUS ACT pushbuttons can be connected directly via PROFINET to the controller and HMI devices, including safety functions. Engineering and commissioning are simplified by the TIA Portal.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10310AB400AA0
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Color: green
• Manufacturer Part Number: 3SU10310AB400AA0
• Mounting Hole Size: 22 mm
• Operation: Momentary
• Primary Type: Pushbutton
• Series: 3SU1 Series
• Overview: SIRIUS ACT
• Material: Metal/Plastic
• Operator Type: Flat Button
• Catalog ID: SIE3SU10310AB400AA0
• Contact Mode: Momentary
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Size: 22 mm
• Type: Round Standard
• Application: For standard industrial and operation in marine locations
• Standard & Approvals: CSA Certified, UL Listed, EAC Certified, CE Certified, ABS Certified, Lloyd's Register, PRS Certified, RINA Certified, RMRS Certified, WEEE (2012/19/EU)
• EANUCC13: 4011209973596
• NEMA: NEMA 1, 2, 3, 3R, 4, 4X, 12
• Operating Cap: Round Flat Button 29.50 mm
• Bezel/Housing: Round Metal, Matte
• Category: Switches
• Configurable Switch Components: Configurable Switch Bodies
• Illumination: Illuminated
• Actuator Type: Pushbutton, Round
• Compatible Series: Siemens, 22mm
• Part Status: Obsolete
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s), Illumination Source
• Base Product Number: 3SU1031
• Button Color: Green
• GTiN: 00804766066054
• Product UPC: 80476606605
• Height: 1.4 Inch
• Hole Diameter: 0.877 in
• Length: 7.45 Inch
• Width: 6.150 in
• Country of Origin: China - Subject to change
