Siemens 3SU10022BF400AA0 Selector Switch 2POS

Product Description

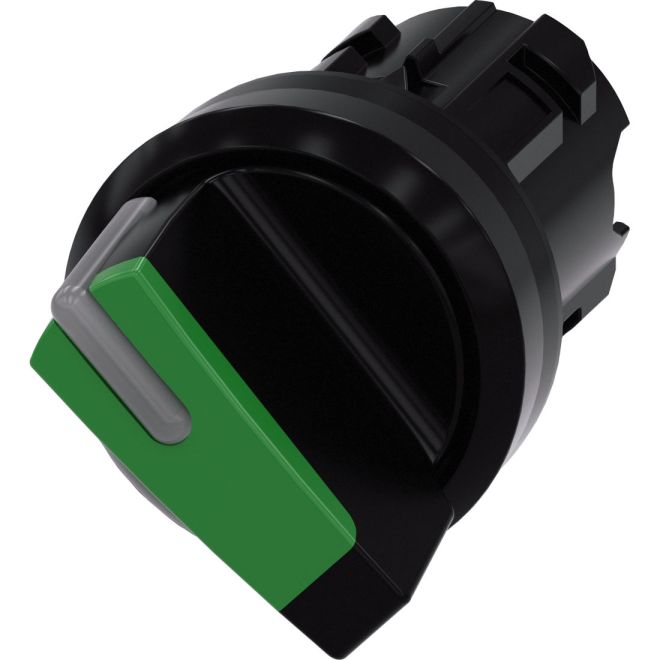

The SIEMENS 3SU10022BF400AA0 is a selector switch used to select multiple settings on equipment. Part of the SIRIUS ACT series, these pushbuttons and signaling devices are designed for industrial applications requiring more than one control option. It features a short handle and a round shape with a 22mm installation diameter.

• 2-positions (-45 0/+45 0) maintained/latched
• Plastic front ring bezel and plastic body
• IP66, IP67, and IP69K degree of protection

Product Highlights

The SIEMENS SIRIUS ACT selector switch offers a durable and versatile control solution for industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10022BF400AA0

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3SU10022BF400AA0
• Primary Type: Selector
• Series: 3SU1
• Unit of Measure: EA
• Category: Switches
• Configurable Switch Components: Configurable Switch Bodies
• Type: Maintained
• Illumination: Non-Illuminated
• Actuator Type: Selector
• Packaging: Box
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s)
• Base Product Number: 3SU1002
• Main function: Selector switch
• Product series / family name: SIRIUS ACT
• Sub-range name: 3SU1
• Functions: Selector sw. head/operator alone
• Design: short handle
• Shape: Round
• Diameter: 22mm installation
• Mounting mode: Flush
• Operating mode: 2-positions
• Degree of protection: IP66
• Material: Plastic front ring bezel
• Ambient air temperature for operation: -25...+70 0C
• Ambient air temperature for storage: -40...+80 0C
• Mechanical durability (at no load): 1 000 000 operations
• Order code / Manufacturer SKU: 3SU10022BF400AA0
• Manufacturer product status: Commercialized
• Equivalent to: 3SU10022BF400AA0
• UPC code: 804766064333
• Compliant with standard(s): IEC60947-1
• Angular positions: -45 0
• Application type: Marine applications
• Manufacturer Alternate Number: 3SU1002-2BF40-0AA0
• IP Rating: IP66, IP67, IP69 (IP69K)
• Mounting Type: 22mm Hole Diameter
• Action Type: Latching
• Height (mm): 32.3mm
• Width (mm): 32.3mm
• Depth (Length) (mm): 54.2mm
• UOM: ea
