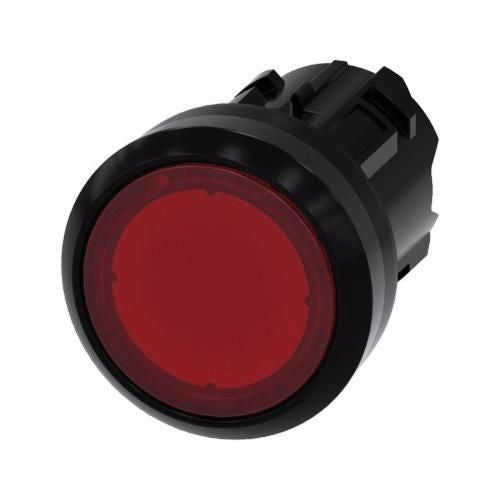

Siemens 3SU10010AB200AA0 Illuminated Pushbutton, Plastic, 22mm

Product Description

The SIEMENS 3SU10010AB200AA0 is an illuminated pushbutton with a flush, momentary contact type. Constructed from plastic, this 22mm round pushbutton is designed for durability and ease of use. It features IP66, IP67, and IP69K protection ratings, making it suitable for use in extreme environments.

• Modern product design using genuine metal and/or high-quality plastic
• Quick and easy installation; innovative snap-on concept can be done with one hand and without any special tools
• Full twist protection; can be mounted into groove-free holes (notching not required)

Product Highlights

The SIEMENS 3SU10010AB200AA0 illuminated pushbutton combines durability with easy installation for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10010AB200AA0
• Country of Origin: United States

Technical Specifications

• Brand: SIEMENS
• Size: 22mm
• Number of Items: 1.0
• Actuator Material: Plastic
• Manufacturer Part Number: 3SU10010AB200AA0
• Mounting Hole Size: 22 mm
• Operation: Momentary
• Primary Type: Pushbutton
• Series: 3SU1 Series
• Special Features: Illuminated
• Actuator Type: Pushbutton, Round
• Illumination: Illuminated
• Manufacturer: Siemens
• Type: Round, Standard, Flat Button
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s), Illumination Source
• Base Product Number: 3SU1001
• Model: 3SU10010AB200AA0
• Contact Mode: Momentary
• Environmental Conditions: -25 to 70 deg C
• Standard & Approvals: CE Certified, CSA Certified, EAC Certified, UL Listed
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/IP66/IP67/IP69/IP69K
• Body Material: Plastic
• Bezel Material: Black Plastic
• Cap/Lens Color: Red
• Enclosure: NEMA 1/3/3R/4/4X/12/13, IP66/67/69
• Catalog ID: SIE3SU10010AB200AA0
