Siemens 3SE2902-0AA20 Foot Sw, Moment,

Product Description

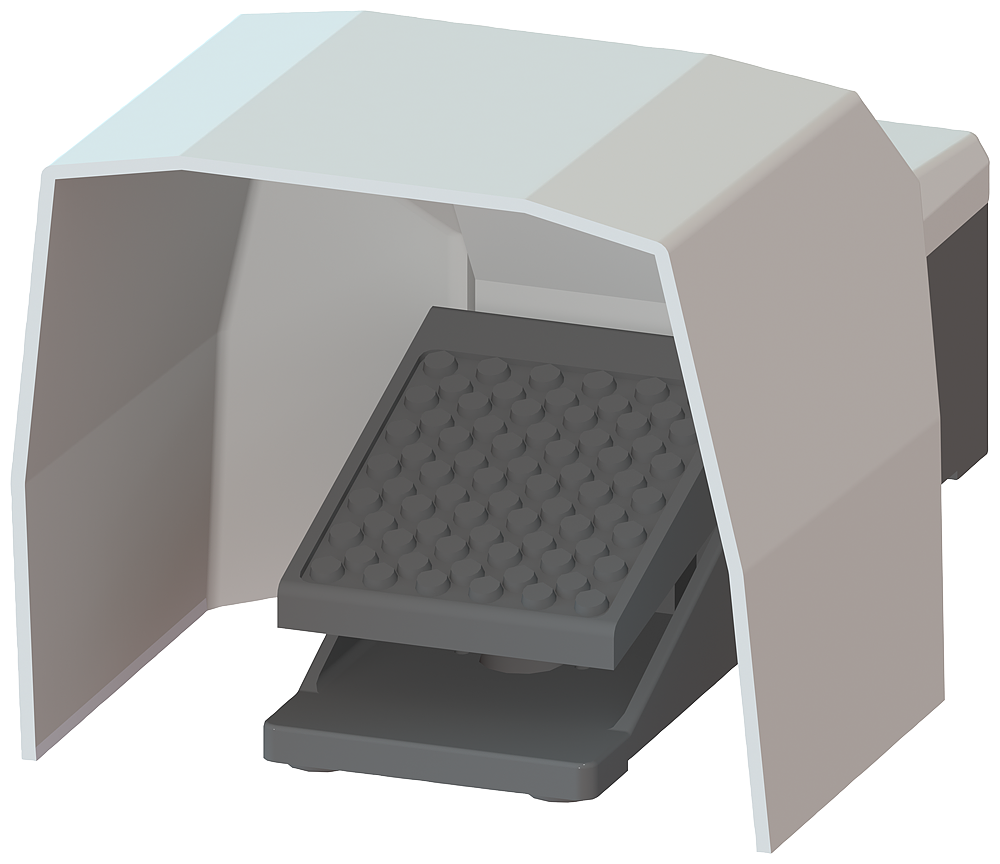

The Siemens 3SE2902-0AA20 foot switch features IP65, 1NO + 1NC with cap cable entry m20x1,5 foot-operated button. It is available in a metal enclosure for rugged applications. This safety foot switch can be supplied with one pedal and momentary contacts. The switch has SPST-NO + SPST-NC contacts and is rated for 6A/230VAC.

• Switch foot
• Stable position: 1
• SPST-NO + SPST-NC contacts

Product Highlights

The Siemens 3SE2902-0AA20 is a foot switch with momentary contacts, suitable for safety applications. It features a metal enclosure and IP65 rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SE2902-0AA20
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Color: Gray
• Material: Metal
• Manufacturer Part Number: 3SE2902-0AA20
• Series: 3SE2 Series
• Overview: 3SE2 9 Safety Foot Switch
• Type of switch: foot
• Stable positions number: 1
• Contacts configuration: SPST-NO + SPST-NC
• AC contacts rating @R (at resistive load): 6A / 230V AC
• IP rating: IP65
• Leads: screw terminals
• Switches features: with foot protection cover
• Switching method (the position in bracket indicates momentary position.): ON-(ON)
