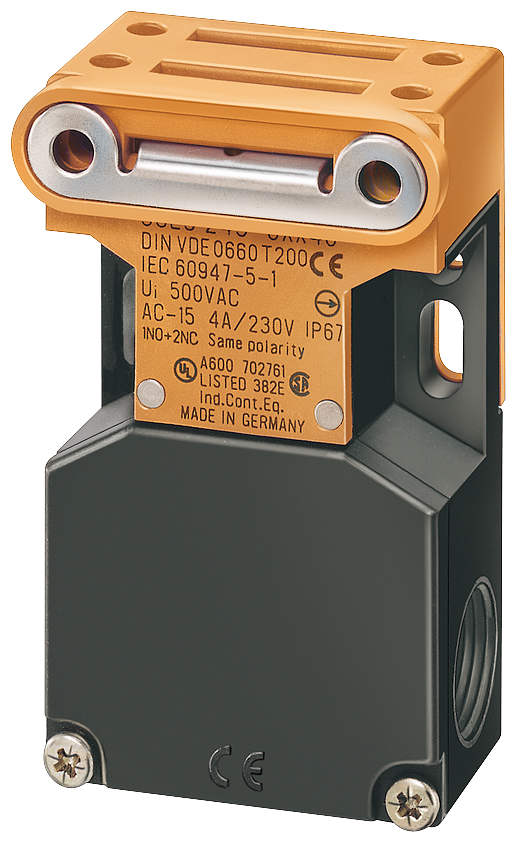

Siemens 3SE2243-0XX Safety Position Switch With Separate Actuator

Product Description

The Siemens 3SE2243-0XX is a safety position switch with a separate actuator. It features lateral and frontal slow action contacts and a 1NO-2NC contact rating. The switch has a glass fiber reinforced thermoplast enclosure and screw terminal connection. It operates in temperatures from -30 to 85 deg C.

• Lateral and frontal slow action contacts
• 1NO-2NC contact rating
• Glass fiber reinforced thermoplast enclosure

Product Highlights

Safety position switch with separate actuator, thermoplast enclosure, and wide operating temperature.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SE2243-0XX
• Country of Origin: DE

Technical Specifications

• Alternate Catalog Number: 3SE2243-0XX
• Brand: Siemens
• Catalog Number: 3SE2243-0XX
• Country of Origin: DE
• Enclosure Type: IP67
• Harmonization Tariff Schedule Code: 8536509065
• Height: 1.7800 in
• Length: 4.2600 in
• Manufacturer: Siemens
• Material: Molded Plastic
• Mounting Type: Threaded
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedUL File No. E44653 in Vol 2 Sec 56
• Type: Safety Position
• UNSPSC: 39122213
• Width: 2.6400 in
• Model: 3SE2 243-0XX INTERLOCK SWITCH
• MPN: 3SE2 243-0XX
• Connection Type: Cable Entry Metrical
• Housing Material: Plastic
