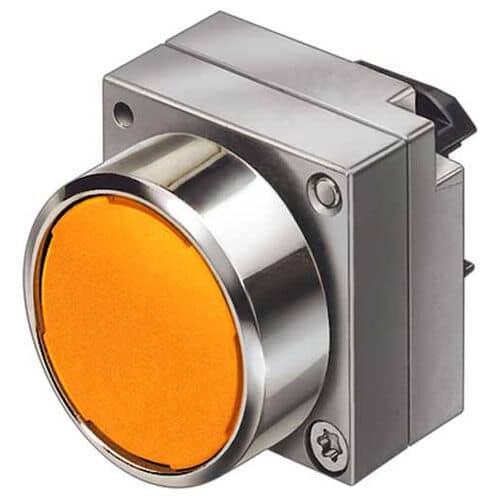

Siemens 3SB3501-0DA01 Pushbutton Flush Cap Maintained

Product Description

The Siemens 3SB3501-0DA01 Pushbutton Flush Cap is a maintained, single operator, round metal pushbutton with an amber flush cap. The Siemens SIRIUS Pilot Device family features pilot lights, pushbuttons, and selector switches in both plastic and heavy-duty metal versions. Mounting of SIRIUS Pilot Devices is faster due to the single screw installation.

• Maintained operation
• Single operator design
• Round metal construction

Product Highlights

This Siemens pushbutton features a maintained amber flush cap and is part of the SIRIUS Pilot Device family, known for quick installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SB3501-0DA01
• Country of Origin: Czech Republic

Technical Specifications

• Actuator Color: Amber
• Actuator Type: Pushbutton, Round, Flush
• Brand: SIEMENS
• Color: Amber
• Manufacturer Part Number: 3SB35010DA01
• Mounting Hole Size: 22 mm in
• Mounting Type: 22 mm dia. Panel hole
• Operation: Maintained
• Primary Type: Pushbutton
• Series: 3SB3 Series
• Special Features: Round metal ring/bezel
• Standards: CSA UL IP67
• MPNs: 3SB3501-0DA01, SIE3SB35010DA01, 3SB35010DA01
• ETIM Group: Low-voltage industrial components
• ETIM Class: Front element for push button
• Colour front ring: Chrome
• Degree of protection (IP), front side: IP67
• Hole diameter: 22mm
• Material front ring: Metal
• Number of command positions: 1
• Spring-return: false
• Suitable for illumination: true
• Switching function latching: true
• With front ring: true
