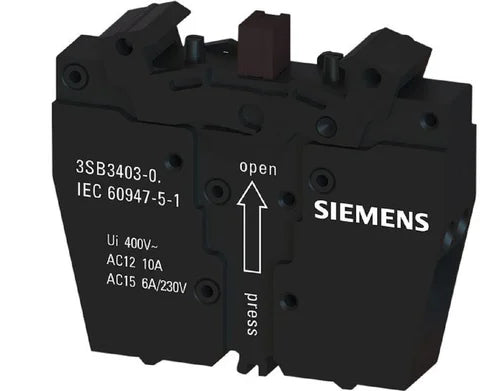

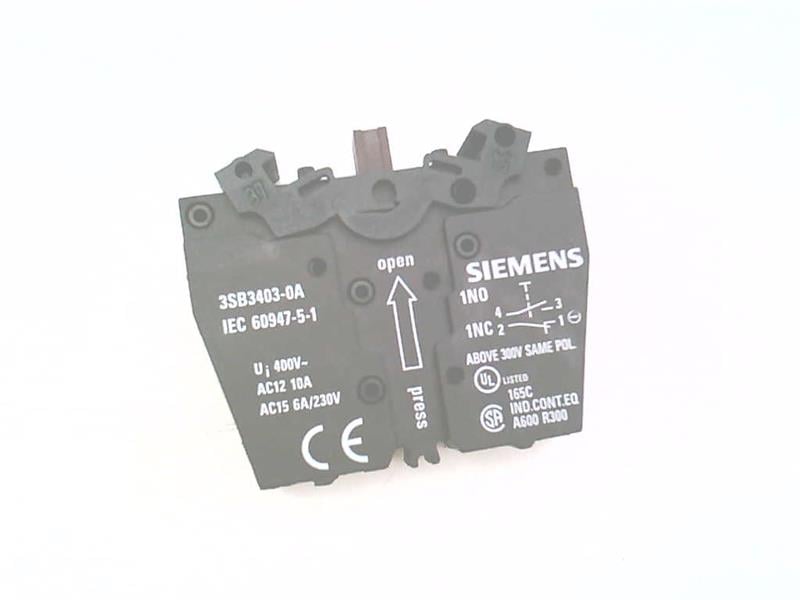

Siemens 3SB3403-0A Contact Block 400/300 VAC 24 VDC 6 Amp 1NO 1NC

Product Description

The SIEMENS 3SB3403-0A is a contact block designed for front plate mounting. It features spring-loaded terminals for electrical connection and operates in temperatures from -25 to 70°C. This contact block is suitable for various 3SB accessory applications and is part of the Sirius sub-brand. It has a 1NO/1NC contact configuration and is rated for 400 VAC.

• Spring-loaded terminals for secure connection
• Operating temperature range: -25 to 70°C
• Suitable for 3SB accessory applications

Product Highlights

The SIEMENS 3SB3403-0A contact block ensures reliable electrical connections in industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SB3403-0A
• Country of Origin: China

Technical Specifications

• Applications: 3SB Accessory
• Connection Type: Spring-Loaded Terminals
• Mounting Type: Front Mounting
• Brand: Siemens
• Sub Brand: Sirius
• Model: 3SB3403-0A
• Country of Origin: China
• Product Designation: Contact Block
• Product Function Positive Opening: Yes
• Degree of Pollution: Class 3
• Surge Voltage Resistance: 4 kV
• Protection class IP: IP40
• Material: Plastic
• Fastening Method: Front Mounting
• Switching Current: 12 A
• Voltage: 240V
• Input Voltage: 400V
• Input Frequency: 50Hz
