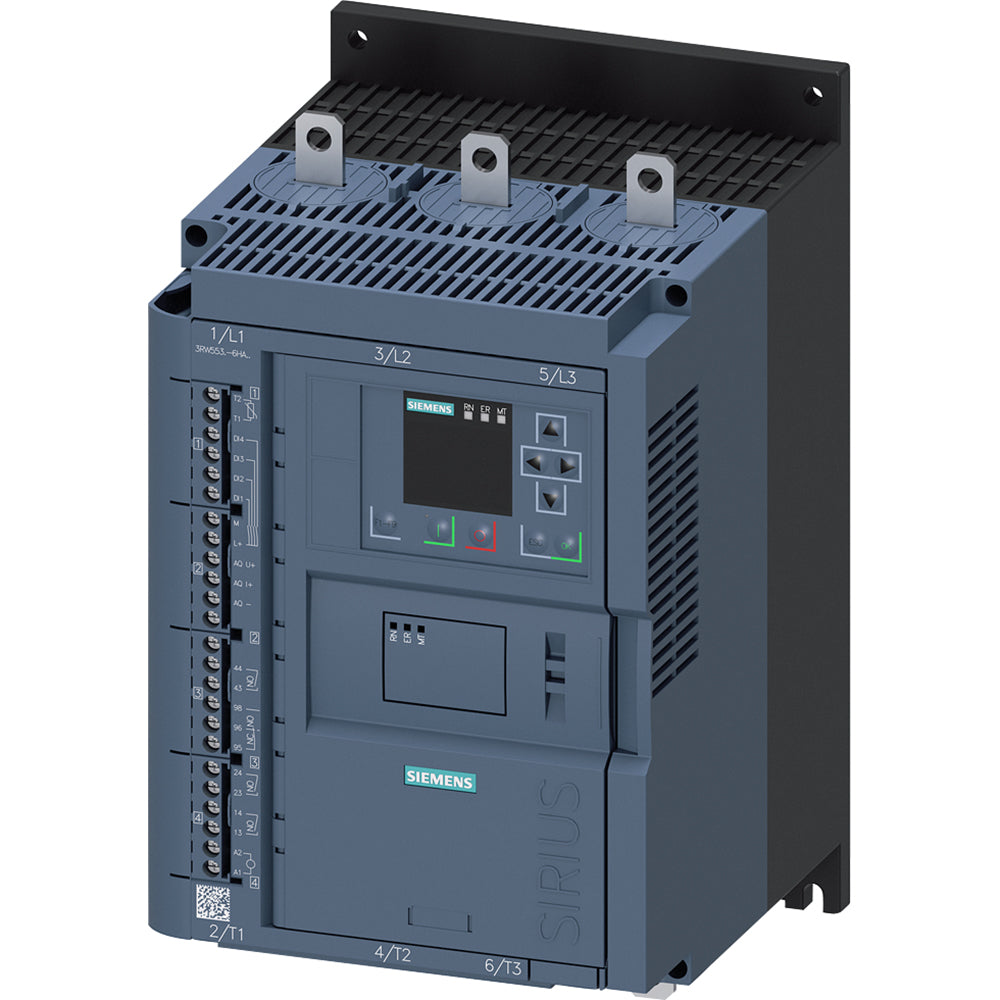

Siemens 3RW55366HA16 Sirius 3RW55 soft starter 171 A (3-Phase) 3RW5536-6HA16

Product Description

Siemens 3RW55366HA16 is a SIRIUS soft starter for three-phase motors, rated 200�690 V AC with a continuous current of 171 A and a control supply of 110�250 V AC. The device provides soft starting and stopping to reduce inrush current and mechanical stress, includes an integrated bypass, and offers intelligent monitoring, settable current limiting, analog output and thermistor motor protection. Terminal type: screw terminals.

• Rated input voltage 200�690 V AC and rated current 171 A; max operating voltage 690 V
• Control supply 110�250 V AC with screw terminal connections; integrated bypass for reduced losses
• Built-in monitoring and overload protection, settable current limiting, analog output and thermistor motor protection; optional PROFINET/PROFIBUS/Modbus TCP

Product Highlights

SIRIUS soft starter 200�690 V AC, 171 A, 110�250 V AC control, screw terminals, integrated bypass and monitoring

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RW55366HA16
• Country of Origin: Czech Republic
